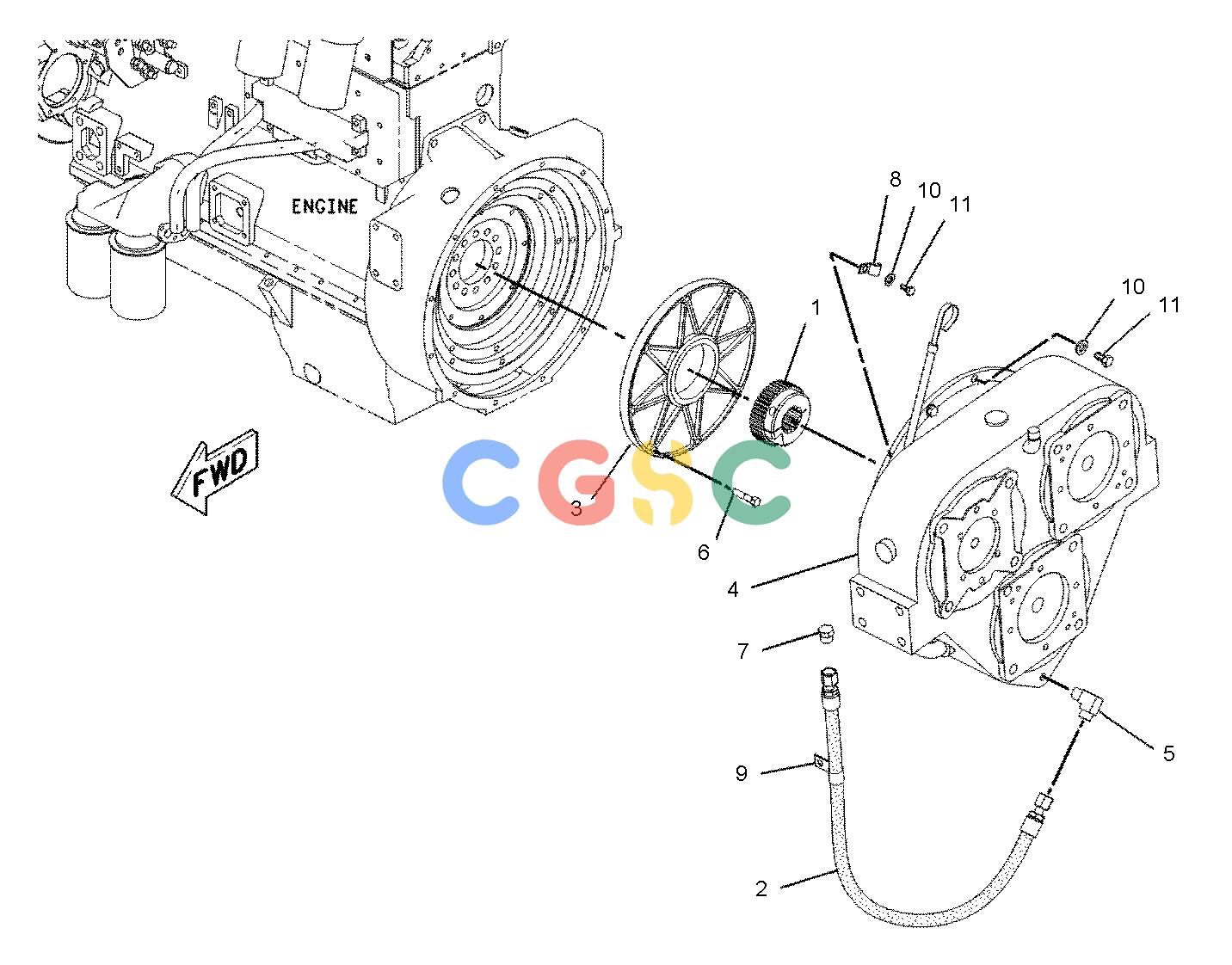

卡特零件查询（AP-655C） 164-8504: DRIVE GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
672 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 191-8922 | [1] | HUB AS-COUPLING | |
| | 6V-8200M | [1] | BOLT-SOCKET HEAD(M12X1.75X35-MM) | |
| 2. | 8W-6650I | [1] | HOSE AS | |
| 3. | 102-1733 | [1] | FLANGE-NYLON | |
| 4. | 193-9182Y | [1] | DRIVE GP-PUMP | |
| 5. | 208-1628 | [1] | ELBOW AS | |
| | 2T-1922 | [1] | ELBOW | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 6. | 0L-0478 | [8] | BOLT(3/8-24X1.75-IN) | |
| 7. | 150-3072 | [1] | PLUG AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9509 | [1] | PLUG(13/16-16-THD) | |
| 8. | 4D-9517 | [1] | CLIP | |
| 9. | 8S-0948 | [1] | CLIP(SLOT) | |
| 10. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
