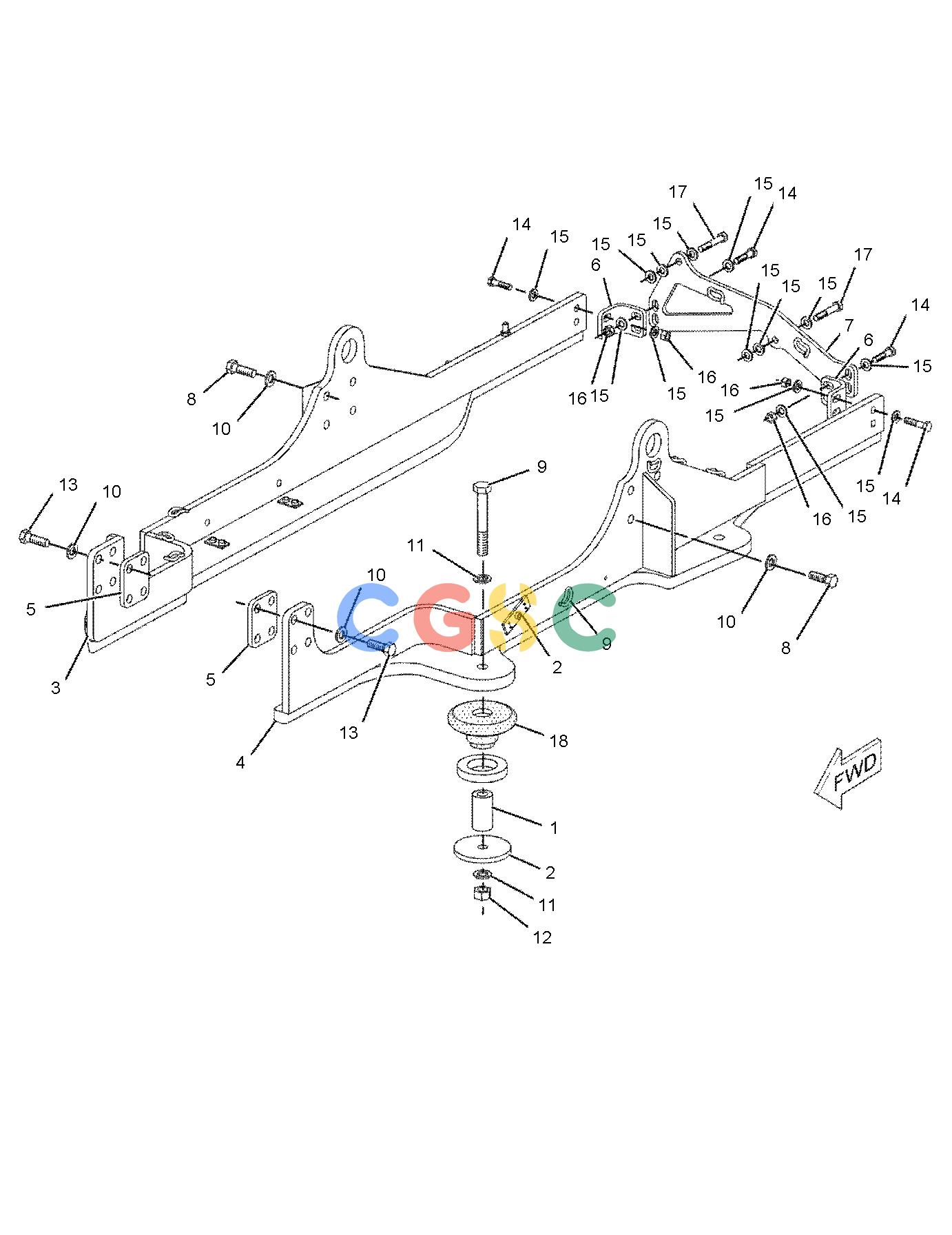

卡特零件查询（AP-655C） 164-8503: MOUNTING GP-ENGINE
广数供应链运营团队, 16 02月, 2025，浏览：
342 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9W-6582 | [4] | SLEEVE | |
| 2. | 9W-6584 | [4] | WASHER(20.5X114X10-MM THK) | |
| 3. | 195-6435 | [1] | PLATE AS | |
| | 6V-6317M | [3] | BOLT(M10X1.5X20-MM) | |
| 4. | 195-6436 | [1] | PLATE AS | |
| | 6V-6317M | [4] | BOLT(M10X1.5X20-MM) | |
| 5. | 195-6448 | [2] | PLATE | |
| 6. | 200-6375 | [2] | PLATE | |
| 7. | 207-6965 | [1] | PLATE AS | |
| 8. | 7X-0345 | [8] | BOLT(5/8-11X1.75-IN) | |
| 9. | 8C-8478M | [4] | BOLT(M20X2.5X140-MM) | |
| 10. | 8T-4122 | [16] | WASHER-HARD(17X32X3.5-MM THK) | |
| 11. | 8T-4123 | [8] | WASHER(3.62X5.75X0.375-MM THK) | |
| 12. | 8T-4131M | [4] | NUT(M20X2.5-THD) | |
| 13. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 14. | 8T-4194M | [8] | BOLT(M12X1.75X50-MM) | |
| 15. | 8T-4223 | [22] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 17. | 8T-4648M | [2] | BOLT(M12X1.75X70-MM) | |
| 18. | 9W-9930 | [4] | MOUNT AS | |
| | M | | METRIC PART |
