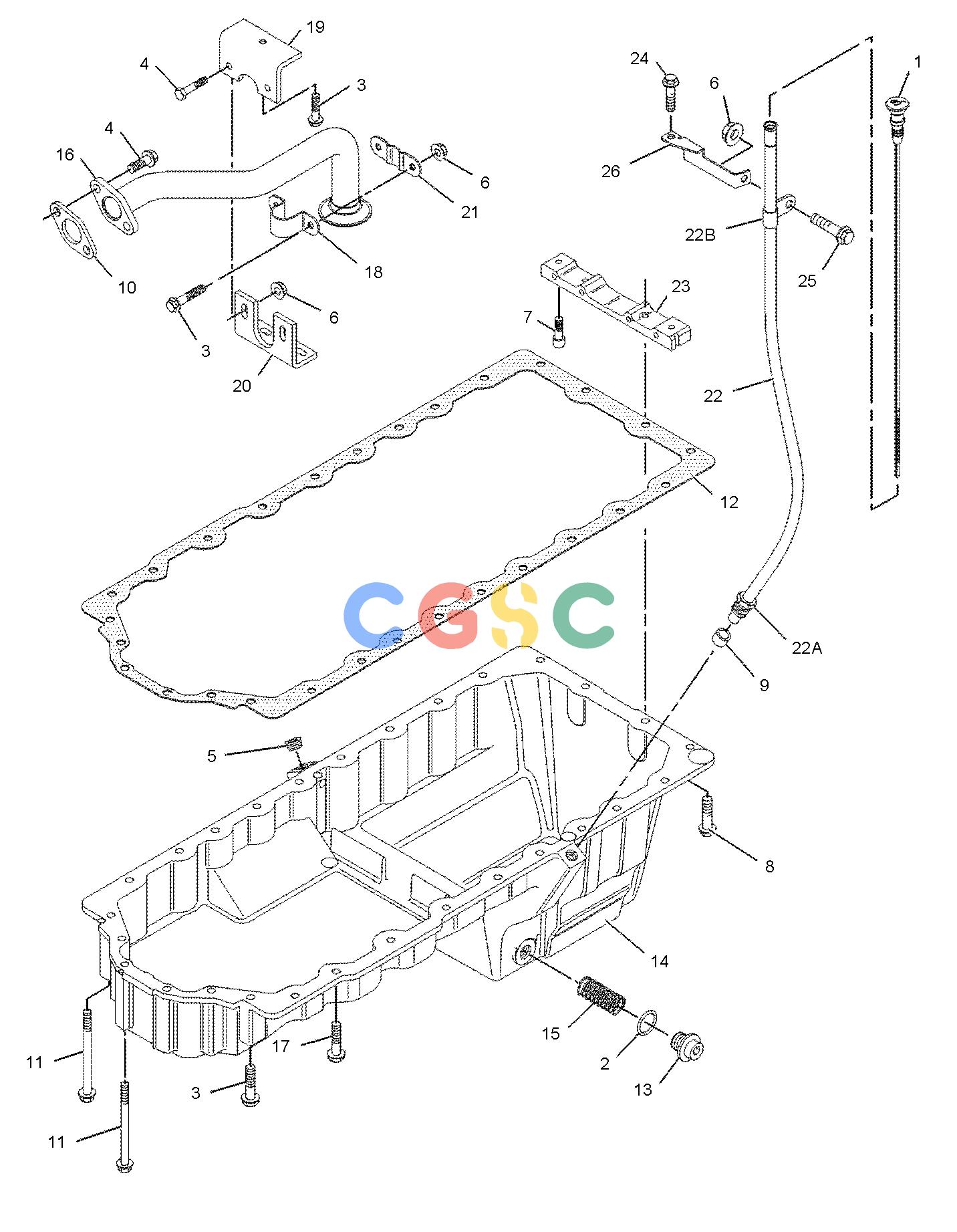

卡特零件查询（AP-655C） 219-1065: PAN GP-OIL
广数供应链运营团队, 16 02月, 2025，浏览：
955 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 218-2375 | [1] | GAUGE AS-OIL LEVEL (DIPSTICK) | |
| 2. | 275-9883 | [2] | SEAL(DRAIN PLUG) | |
| 3. | 6I-0217M | [23] | BOLT(M8X1.25X20-MM) | |
| 4. | 6I-0260M | [4] | BOLT(M8X1.25X25-MM) | |
| 5. | 6I-0289 | [1] | PLUG | |
| 6. | 6I-0291M | [5] | NUT(M8X1.25-THD) | |
| 7. | 6I-0363M | [2] | BOLT(M6X1X20-MM) | |
| 8. | 6I-0572M | [2] | BOLT(M8X1.25X20-MM) | |
| 9. | 6I-1497 | [1] | SEAL | |
| 10. | 6I-4681 | [1] | GASKET | |
| 11. | 6I-4709M | [5] | BOLT(M8X1.25X100-MM) | |
| 12. | 6I-4710 | [1] | GASKET | |
| 13. | 7C-0351 | [2] | PLUG-DRAIN(ENGINE OIL) | |
| 14. | 113-8126 | [1] | PAN AS-OIL | |
| 15. | 7C-1224 | [2] | INSERT | |
| 16. | 113-8127 | [1] | TUBE AS | |
| 17. | 113-8129M | [1] | BOLT(M8X1.25X75-MM) | |
| 18. | 113-8130 | [1] | CLIP | |
| 19. | 113-8131 | [1] | BRACKET | |
| 20. | 113-8133 | [1] | BRACKET | |
| 21. | 113-8134 | [1] | PLATE | |
| 22. | 228-7362 | [1] | TUBE AS | |
| 22A. | 6I-4079 | [1] | NUT | |
| 22B. | 187-0555 | [1] | CLIP | |
| 23. | 211-0067 | [1] | BRIDGE | |
| 24. | 6I-4200M | [1] | BOLT(M10X1.5X16-MM) | |
| 25. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 26. | 219-1064 | [1] | BRACKET | |
| | M | | METRIC PART |
