卡特零件查询（AP-655C） 216-8324: PISTON & ROD GP
广数供应链运营团队, 16 02月, 2025，浏览：
1021 次

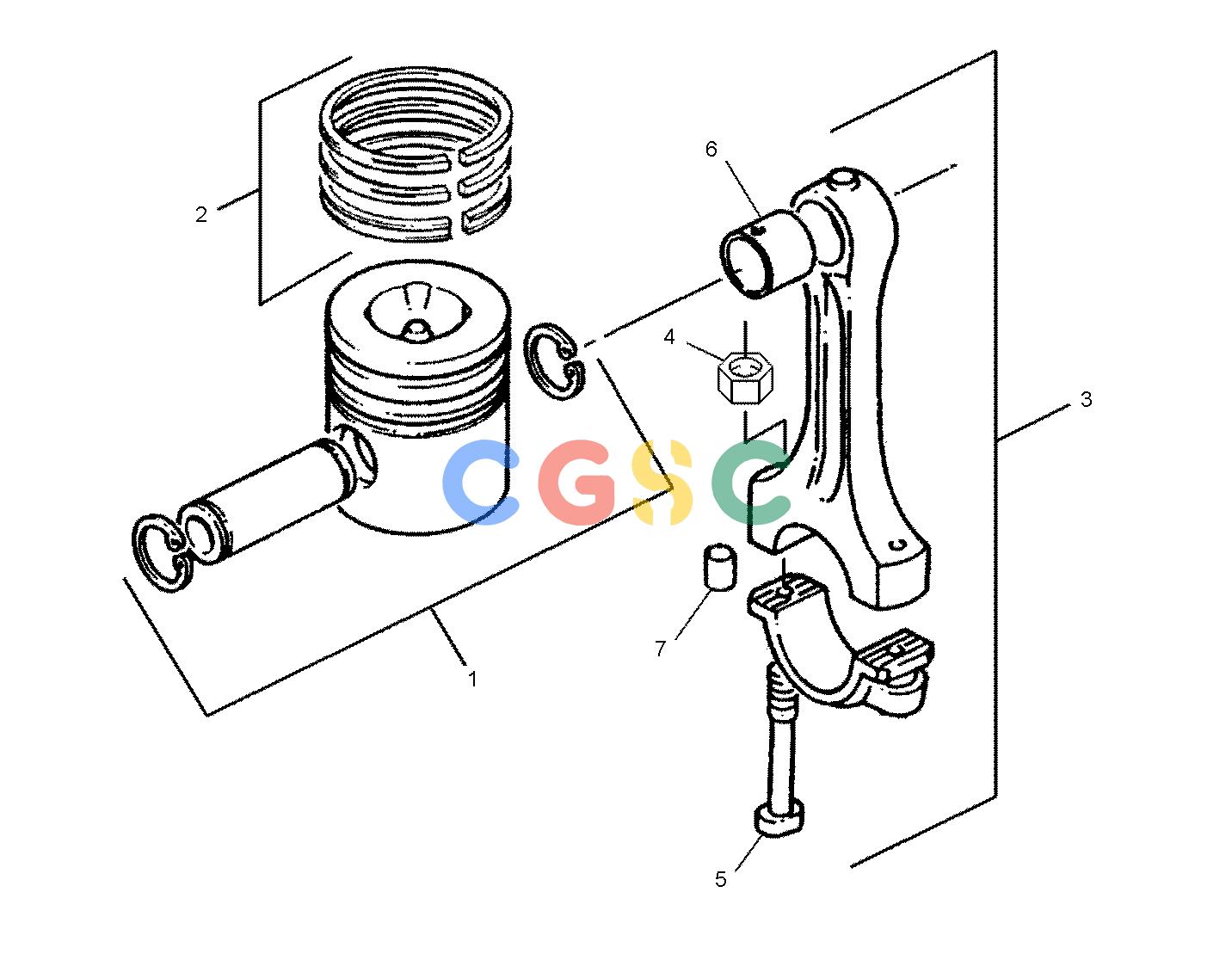

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 216-8323 | [6] | PISTON AS | |
| | | | (EACH INCLUDES) |
| | 124-3536 | [2] | RING-RETAINING | |
| 2. | 217-1573 | [1] | KIT-PISTON RING | |
| 3. | J | [6] | ROD AS(GRADE H)(WHITE) |
| | | | -OR- |
| | 160-6494J | [6] | ROD AS(GREEN) | |
| | | | -OR- |
| | 160-6495J | [6] | ROD AS(GRADE K)(PURPLE) | |
| | | | -OR- |
| | 160-6496J | [6] | ROD AS(BLUE) | |
| | | | (EACH ROD AS INCLUDES) |
| 4. | 7W-2505 | [2] | NUT-CONNECTING ROD | |
| 5. | 067-6883 | [2] | BOLT-ROD CAP | |
| 6. | 138-2048 | [1] | BUSHING | |
| 7. | 194-2466 | [2] | DOWEL | |
| | J | | ENSURE THAT THE CORRECT ROD LENGTH IS FITTED. |
