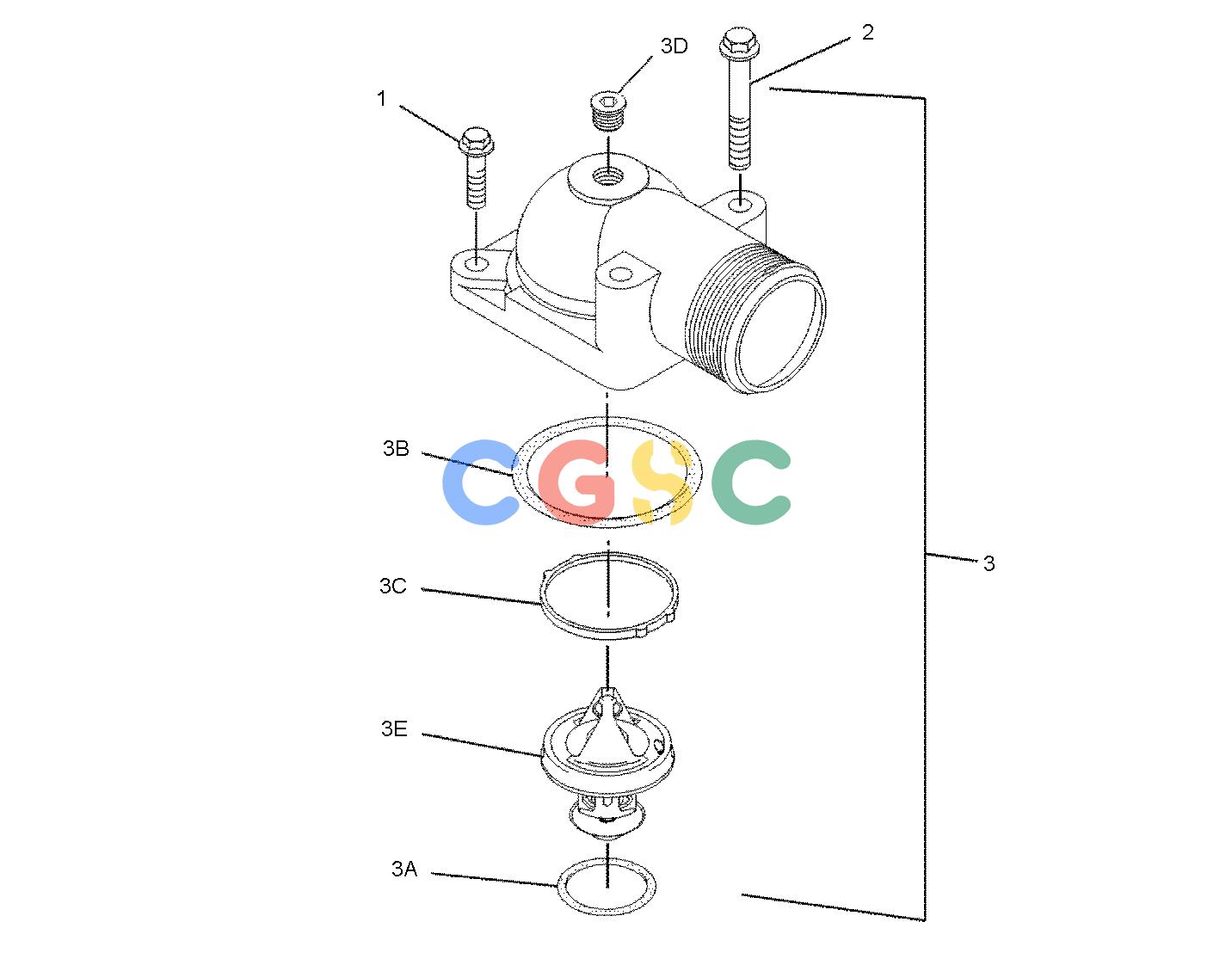

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-0260M | [2] | BOLT(M8X1.25X25-MM) | |
| 2. | 6I-4374M | [2] | BOLT(M8X1.25X60-MM) | |
| 3. | 216-9743 | [1] | CONNECTION AS | |
| 3A. | 140-7515 | [1] | SEAL-O-RING(WATER TEMPERATURE) | |
| 3B. | 141-6188 | [1] | SEAL(HOUSING, REGULATOR)(WATER TEMPERATURE) | |
| 3C. | 162-0236 | [1] | RING(WATER TEMPERATURE REGULATOR) | |
| 3D. | 162-0237 | [1] | PLUG | |
| 3E. | 216-9737 | [1] | REGULATOR-WATER TEMPERATURE | |
| M | METRIC PART | |||
