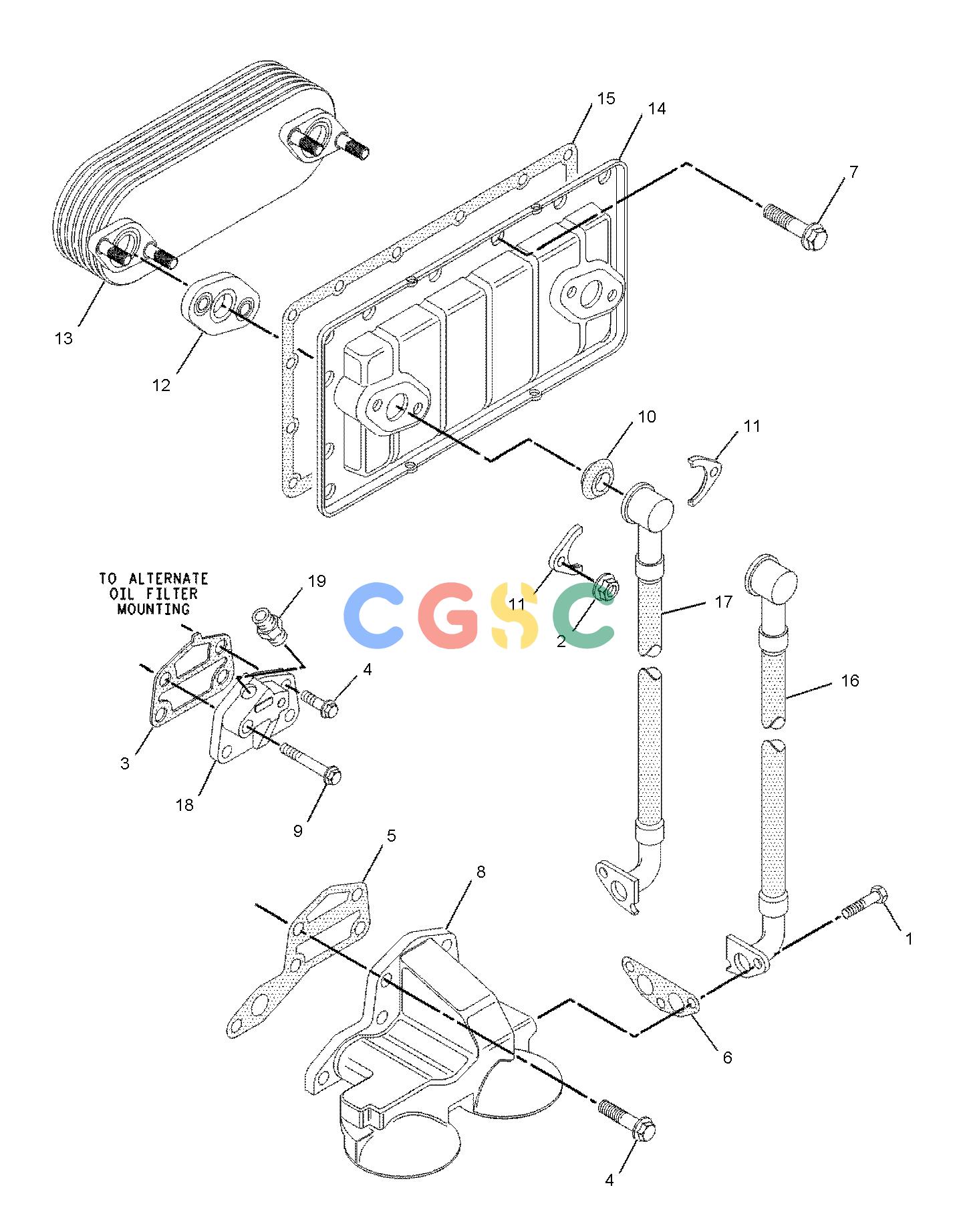

卡特零件查询（AP-655C） 235-6342: COOLER GP-FLTR BASE & ENG OIL
广数供应链运营团队, 16 02月, 2025，浏览：
943 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0260M | [3] | BOLT(M8X1.25X25-MM) | |
| 2. | 6I-0291M | [4] | NUT(M8X1.25-THD) | |
| 3. | 6I-0298 | [1] | GASKET | |
| 4. | 6I-0654M | [8] | BOLT(M10X1.5X25-MM) | |
| 5. | 6I-4786 | [1] | GASKET | |
| 6. | 6I-4800J | [1] | GASKET | |
| 7. | 124-3815M | [14] | BOLT(M8X1.25X16-MM) | |
| 8. | 121-3415 | [1] | HEAD AS-OIL FILTER | |
| 9. | 140-8783M | [1] | BOLT(M10X1.5X45-MM) | |
| 10. | 230-3776J | [2] | SEAL | |
| 11. | 162-0761 | [4] | FLANGE | |
| 12. | 162-9754J | [2] | SEAL | |
| 13. | 175-3915 | [1] | COOLER-ENGINE OIL | |
| 14. | 216-9637 | [1] | HOUSING | |
| 15. | 216-9638J | [1] | GASKET(ENGINE OIL COOLER) | |
| 16. | 231-8046 | [1] | HOSE AS | |
| 17. | 231-8045 | [1] | HOSE AS | |
| 18. | 219-2198 | [1] | ADAPTER | |
| 19. | 219-1818 | [1] | CONNECTION | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 219-2172J | [1] | KIT-REPAIR(OIL COOLER) | |
| | J | | KIT MARKED J INCLUDES PART(S) MARKED J |
| | M | | METRIC PART |
