卡特零件查询（AP-655C） 174-1772: BOX GP-JUNCTION
广数供应链运营团队, 16 02月, 2025，浏览：
244 次

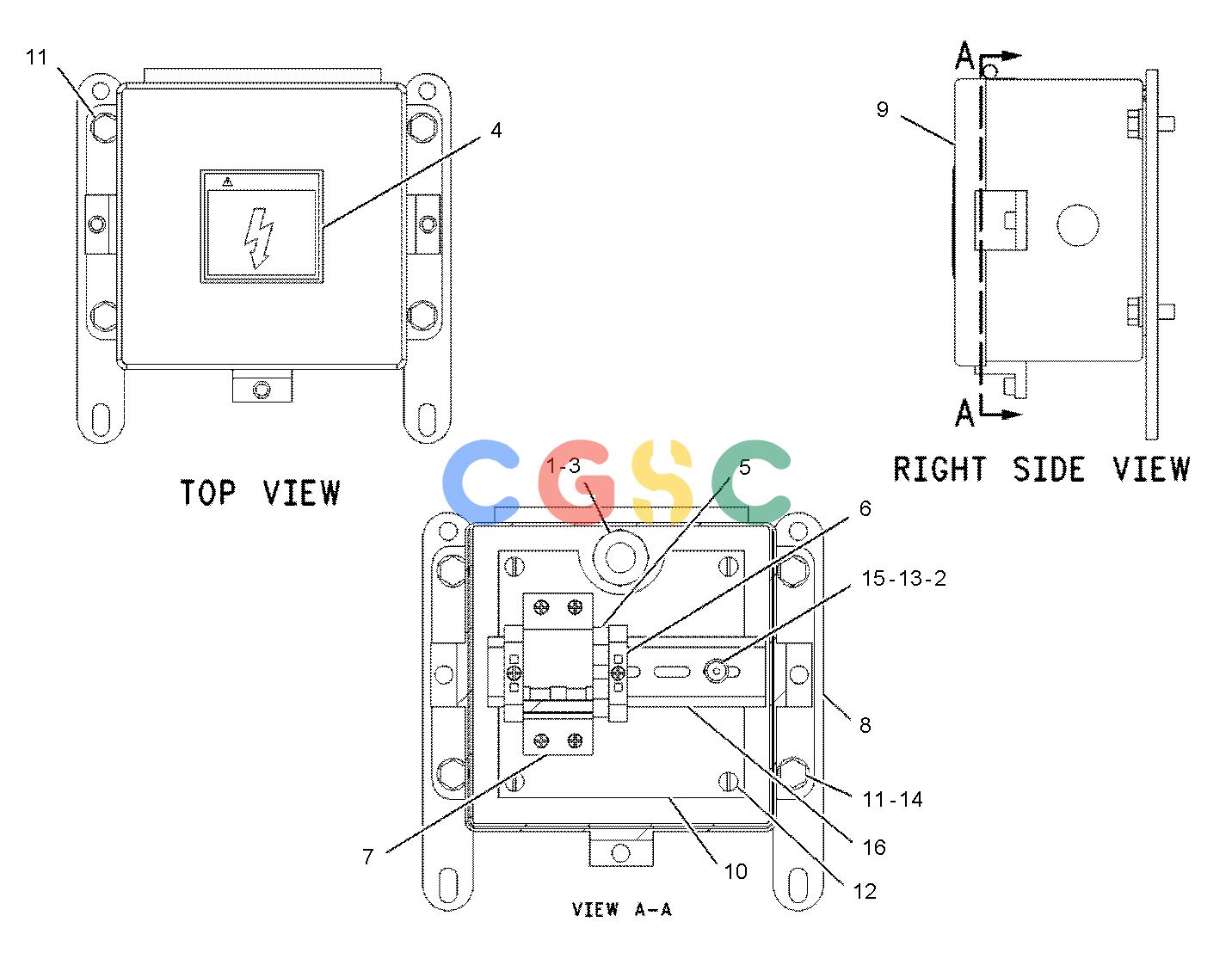

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4P-4890 | [1] | NUT-SPECIAL(1/2-14-THD) | |
| 2. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 3. | 9M-6949 | [1] | BUSHING-TERMINAL | |
| 4. | 142-7546 | [1] | FILM-WARNING(HIGH VOLTAGE) | |
| 5. | 173-5411 | [1] | BLOCK-TERMINAL(600-VOLT, 50-AMPERE) | |
| 6. | 173-5413 | [2] | CLAMP | |
| 7. | 173-5414 | [1] | CIRCUIT BREAKER AS(32-AMPERE)(JUNCTION BOX) | |
| 8. | 173-9171 | [2] | PLATE | |
| 9. | 174-0735 | [1] | BOX AS | |
| 10. | 174-0759 | [1] | PANEL | |
| 11. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 12. | 5C-5442 | [4] | SCREW-MACHINE(10-32X0.375-IN) | |
| 13. | 7Y-7388M | [2] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 14. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 9X-8267 | [4] | WASHER(6.6X12X2-MM THK) | |
| 16. | 173-5412E | | RAIL(14-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
