卡特零件查询（AP-655C） 175-7736: BOX GP-JUNCTION
广数供应链运营团队, 16 02月, 2025，浏览：
597 次

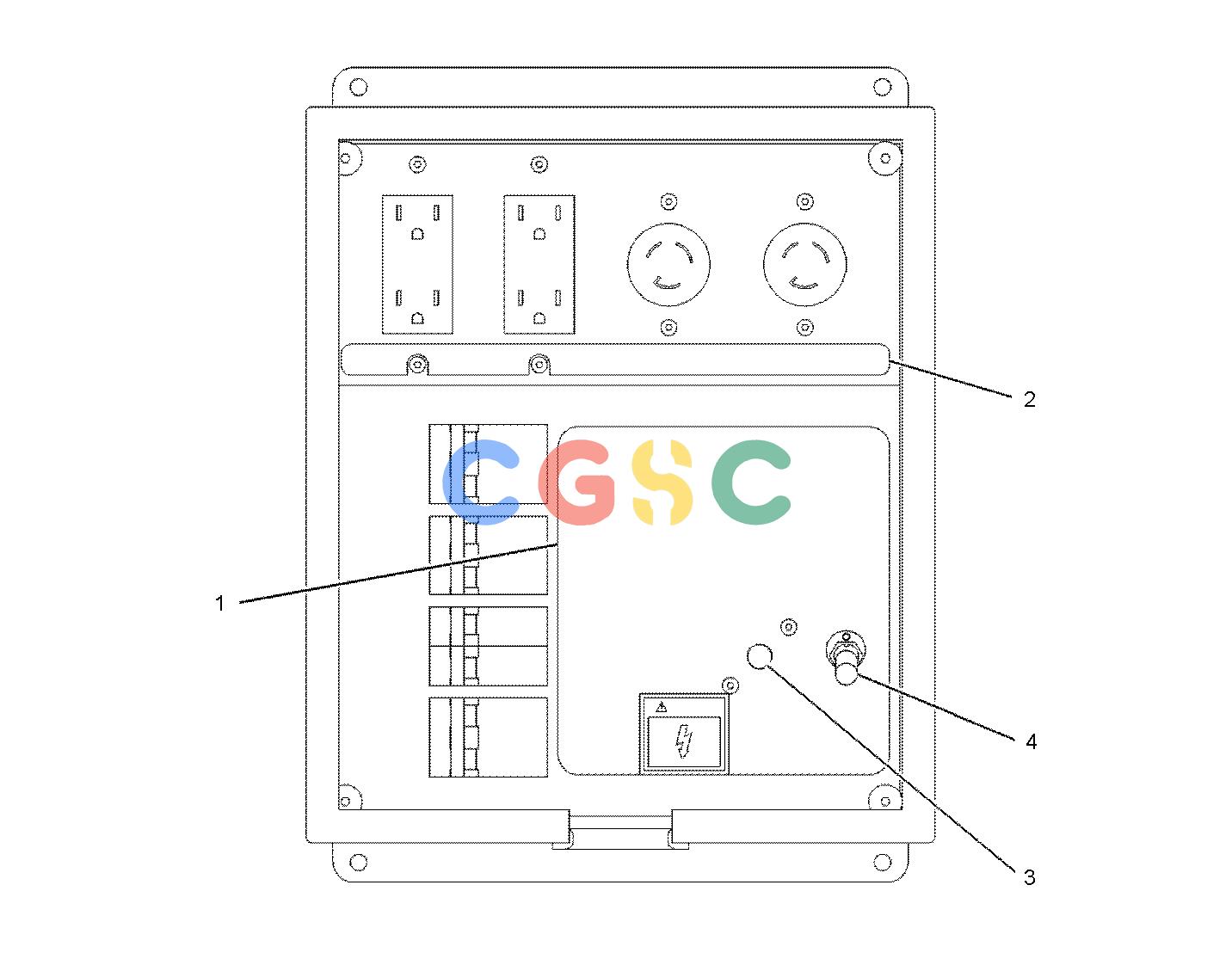

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 175-7182 | [1] | FILM-WARNING(HIGH VOLTAGE) | |
| 2. | 175-7183 | [1] | FILM-IDENTIFICATION(ELECTRICAL OUTLET) | |
| 3. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(GENERATOR) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 4. | 8N-0753 | [1] | SWITCH AS-TOGGLE(GENERATOR ON/OFF) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
