卡特零件查询（AP-655C） 203-4244: GENERATOR GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
720 次

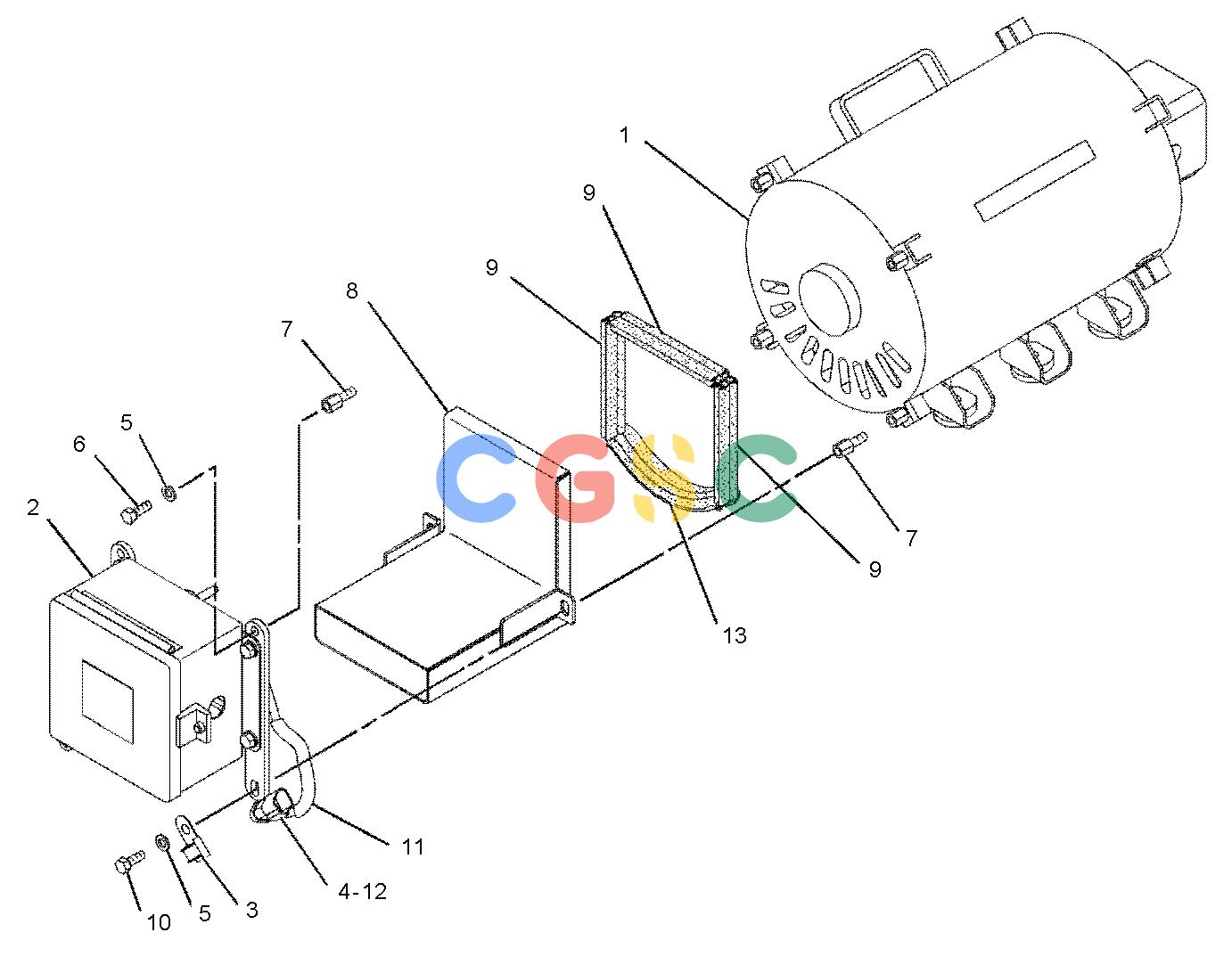

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | Y | [1] | GENERATOR GP-HYDRAULIC |
| 2. | 174-1772Y | [1] | BOX GP-JUNCTION | |
| 3. | 116-0118 | [1] | CLIP | |
| 4. | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 6. | 4M-0061 | [2] | BOLT(5/16-18X0.75-IN) | |
| 7. | 6W-0210 | [4] | BOLT(5/16-18X1.5-IN) | |
| 8. | 214-3169 | [1] | DUCT AS | |
| 9. | 5P-7211D | | SEAL(0.1-M EACH) | |
| 10. | 8T-9043 | [2] | BOLT(5/16-18X0.875-IN) | |
| 11. | 9X-1813E | | SLEEVE(24-CM) | |
| 12. | 9W-0852 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 13. | 5P-7483D | | SEAL(0.2-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
