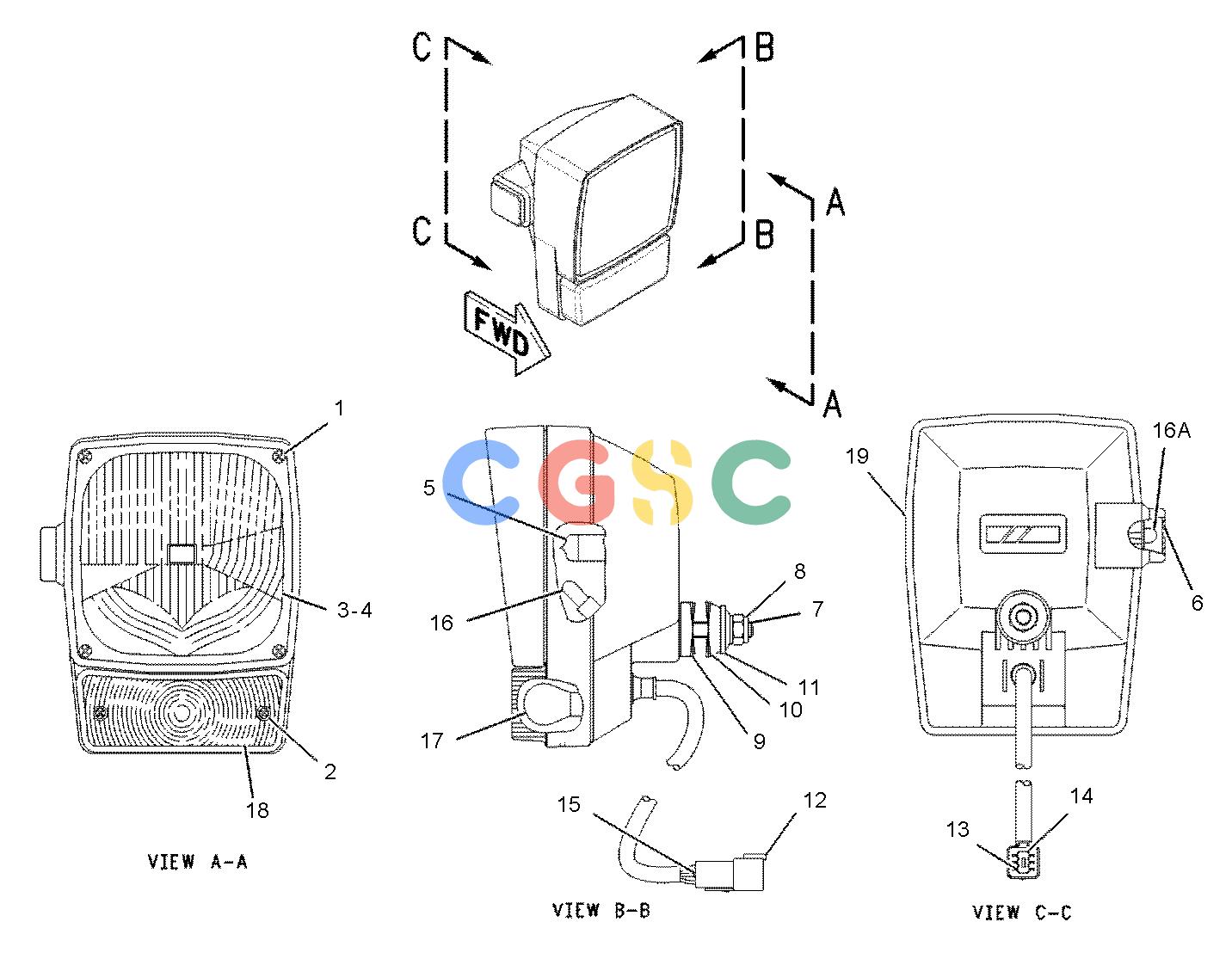

卡特零件查询（AP-655C） 105-4850: LAMP GP-HEAD & SIGNAL
广数供应链运营团队, 16 02月, 2025，浏览：
219 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-4244M | [4] | SCREW-SPECIAL(M4X1.79X25-MM) | |
| 2. | 100-3251 | [2] | SCREW-LENS | |
| 3. | 9X-9865 | [1] | SEAL | |
| 4. | 100-3248 | [1] | LENS AS(HEADLIGHT) | |
| 5. | 9X-3465 | [1] | LAMP(24-VOLT, 75/70-WATT)(HIGH, LOW BEAM) | |
| 6. | 136-3848 | [1] | LENS AS(AMBER)(TURN SIGNAL) | |
| 7. | 8T-5005M | [1] | BOLT(M10X1.5X70-MM) | |
| 8. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 9. | 100-3253 | [1] | SPACER(SPHERICAL) | |
| 10. | 100-3254 | [1] | SPACER(SPHERICAL) | |
| 11. | 100-3255 | [1] | WASHER(SPHERICAL) | |
| 12. | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCUDES RECEPTALCE AS & WEDGE) |
| 13. | 186-3735 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 14. | 3E-3383 | [1] | WEDGE-RECEPTACLE LOCK(6-PIN) | |
| 15. | 8T-8737 | [1] | PLUG-SEAL | |
| 16. | 100-3245 | [1] | LAMP(24-VOLT, 0.17-AMPERE)(RUNNING LIGHTS) | |
| 16A. | 100-3245 | [1] | LAMP(24-VOLT, 0.17-AMPERE)(TURN SIGNAL) | |
| 17. | 9X-4493 | [1] | LAMP(24-VOLT, 21-WATT)(TURN SIGNAL) | |
| 18. | 100-3250 | [1] | LENS(AMBER)(TURN SIGNAL) | |
| 19. | 136-3846 | [1] | BODY AS-LAMP | |
| | M | | METRIC PART |
