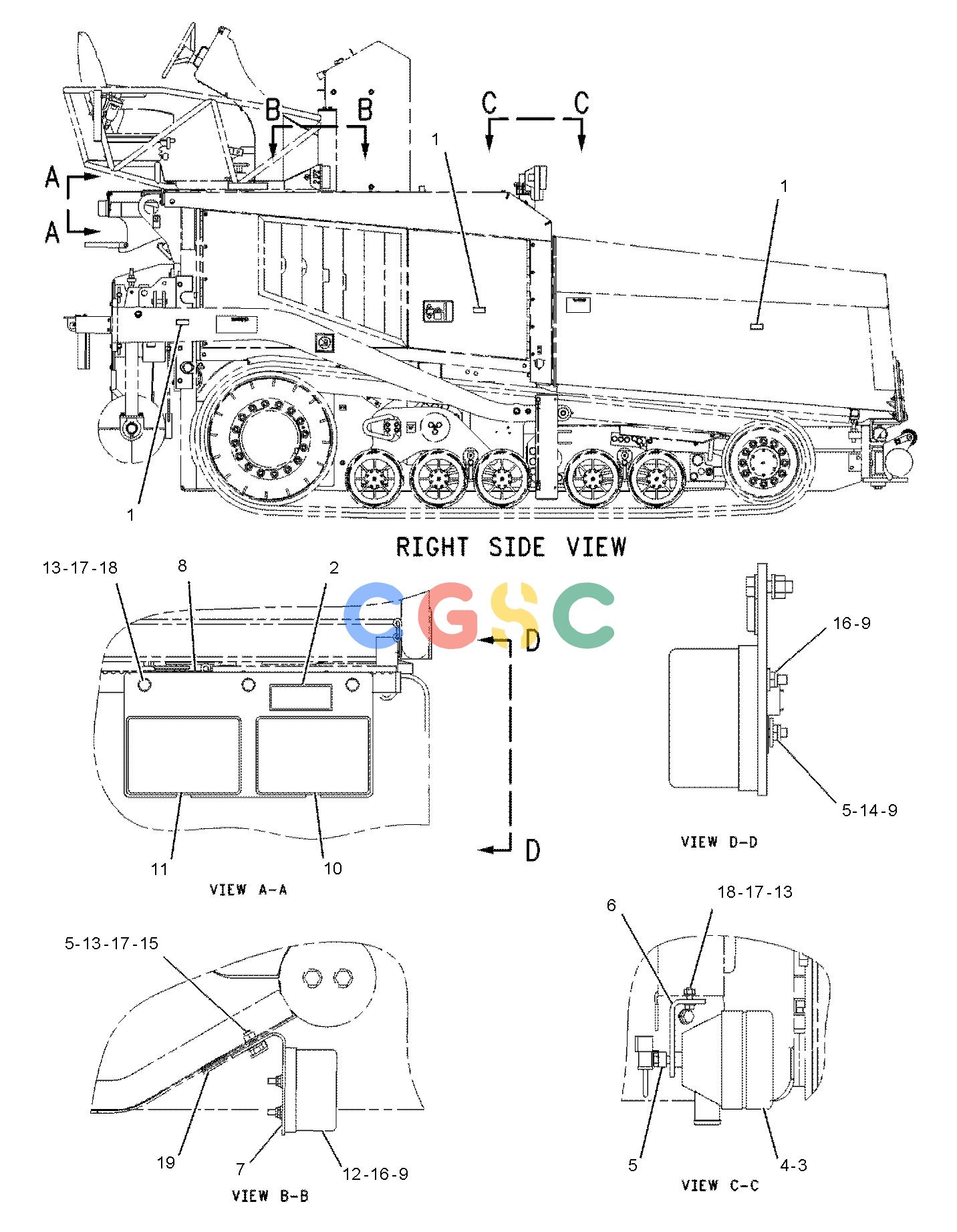

卡特零件查询（AP-655C） 207-7957: LIGHTING GP-ROADING
广数供应链运营团队, 16 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 101-4849 | [6] | REFLECTOR-YELLOW | |
| 2. | 101-4850 | [2] | REFLECTOR-RED | |
| 3. | 105-4849Y | [1] | LAMP GP-HEAD & SIGNAL(LH) | |
| 4. | 105-4850Y | [1] | LAMP GP-HEAD & SIGNAL(RH) | |
| 5. | 116-0118 | [8] | CLIP(SLOT) | |
| 6. | 212-3561 | [2] | BRACKET | |
| 7. | 212-3562 | [2] | BRACKET | |
| 8. | 212-3564 | [2] | PLATE | |
| 9. | 099-0492M | [18] | LOCKNUT(M6X1-THD) | |
| 10. | 107-4401Y | [2] | LAMP GP-SIGNAL(24-VOLT, STOP, TAIL)(STOP/TAIL) | |
| 11. | 107-4402Y | [2] | LAMP GP-SIGNAL(24-VOLT, REAR TURN)(REAR TURN) | |
| 12. | 162-5402Y | [2] | LAMP GP-SIGNAL(24-VOLT)(FRONT POSITION) | |
| 13. | 5C-7261M | [14] | NUT(M8X1.25-THD) | |
| 14. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 15. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 16. | 8T-4205 | [14] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 17. | 8T-4224 | [28] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-4908M | [10] | BOLT(M8X1.25X25-MM) | |
| 19. | 9X-7345 | [2] | GROMMET | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
