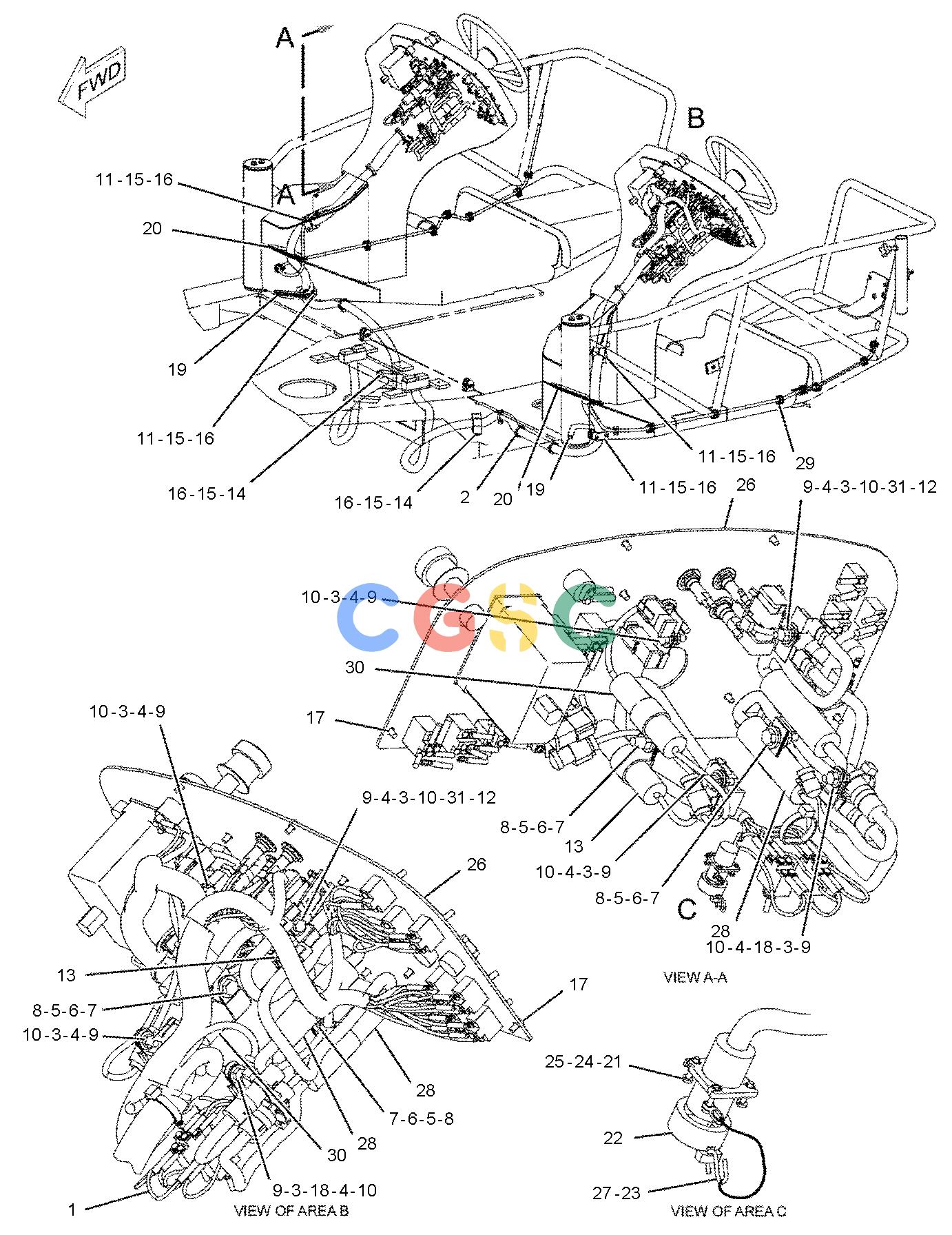

卡特零件查询（AP-655C） 192-5087: WIRING GP-CONSOLE
广数供应链运营团队, 16 02月, 2025，浏览：
448 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 191-2846Y | [1] | WIRING GP-CONSOLE(AUXILIARY STEERING) | |
| 2. | 7K-1181B | [14] | STRAP-CABLE | |
| 3. | 5P-4116 | [16] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 4. | 116-0118 | [14] | CLIP | |
| 5. | 8D-9947 | [8] | CLIP | |
| 6. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 7. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 8. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 9. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 10. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 11. | 7R-7941 | [8] | CLAMP | |
| 12. | 112-4735 | [2] | CONTROL GP-DIODE BLOCK | |
| 13. | 122-9303Y | [2] | BUFFER GP-SENSOR(500-HZ PWM)(PROPEL LEVER) | |
| 14. | 7R-7940 | [4] | CLAMP | |
| 15. | 7R-7951 | [6] | PLATE | |
| 16. | 7X-2535M | [12] | BOLT(M6X1X60-MM) | |
| 17. | 9X-2042M | [18] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 18. | 4P-7429 | [2] | CLIP(LADDER) | |
| 19. | 8T-3426BE | | CHANNEL-TRIM | |
| 20. | 7X-7877BE | | STRIP-EDGE | |
| 21. | 6V-2480 | [8] | SCREW(4-40X0.5-IN) | |
| 22. | 100-5805 | [2] | CAP-RECEPTACLE(3-PIN) | |
| 23. | 1G-9090 | [2] | S-HOOK | |
| 24. | 5P-8392 | [8] | WASHER(3.1X6.3X0.8-MM THK) | |
| 25. | 9N-7446 | [8] | LOCKNUT(4-40-THD) | |
| 26. | 196-6942Y | [2] | PANEL GP-INSTRUMENT(OPERATOR CONSOLE) | |
| 27. | 1G-9089BE | | CHAIN | |
| 28. | 122-9309Y | [4] | BUFFER GP-SENSOR(5000-HZ PWM)(CONVEYOR SPEED) | |
| 29. | 3S-2093B | [36] | STRAP-CABLE | |
| 30. | 122-9303Y | [2] | BUFFER GP-SENSOR(500-HZ PWM)(SPEED DIAL) | |
| 31. | 4P-7582 | [2] | CLIP | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
