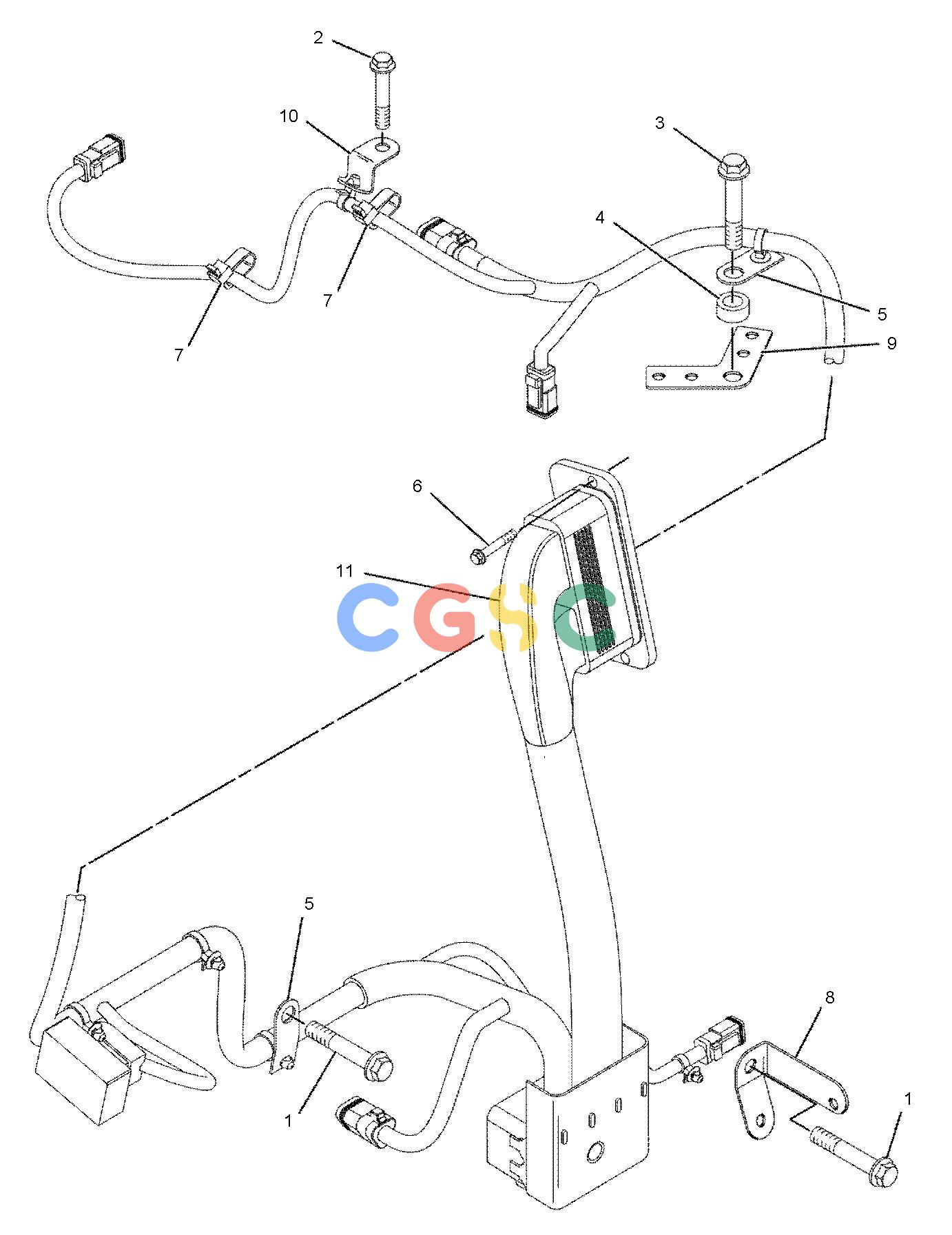

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 100-4458M | [3] | BOLT(M8X1.25X14-MM) | |
| 2. | 114-4363M | [1] | BOLT(M8X1.25X12-MM) | |
| 3. | 140-8783M | [1] | BOLT(M10X1.5X45-MM) | |
| 4. | 216-9086 | [2] | SPACER(10.5X20X32-MM THK) | |
| 5. | 217-8477 | [2] | CLIP | |
| 6. | 217-9038 | [5] | BOLT(M4X0.7X14-MM) | |
| 7. | 217-9039 | [2] | STRAP-CABLE | |
| 8. | 226-8778 | [1] | BRACKET | |
| 9. | 226-8780 | [1] | BRACKET | |
| 10. | 228-7477 | [1] | CLIP | |
| 11. | 233-4694 | [1] | HARNESS AS-ENGINE(ELECTRONIC CONTROL MODULE) | |
| M | METRIC PART | |||
