卡特零件查询（AP-655C） 192-5081: WIRING GP-MACHINE
广数供应链运营团队, 16 02月, 2025，浏览：
814 次

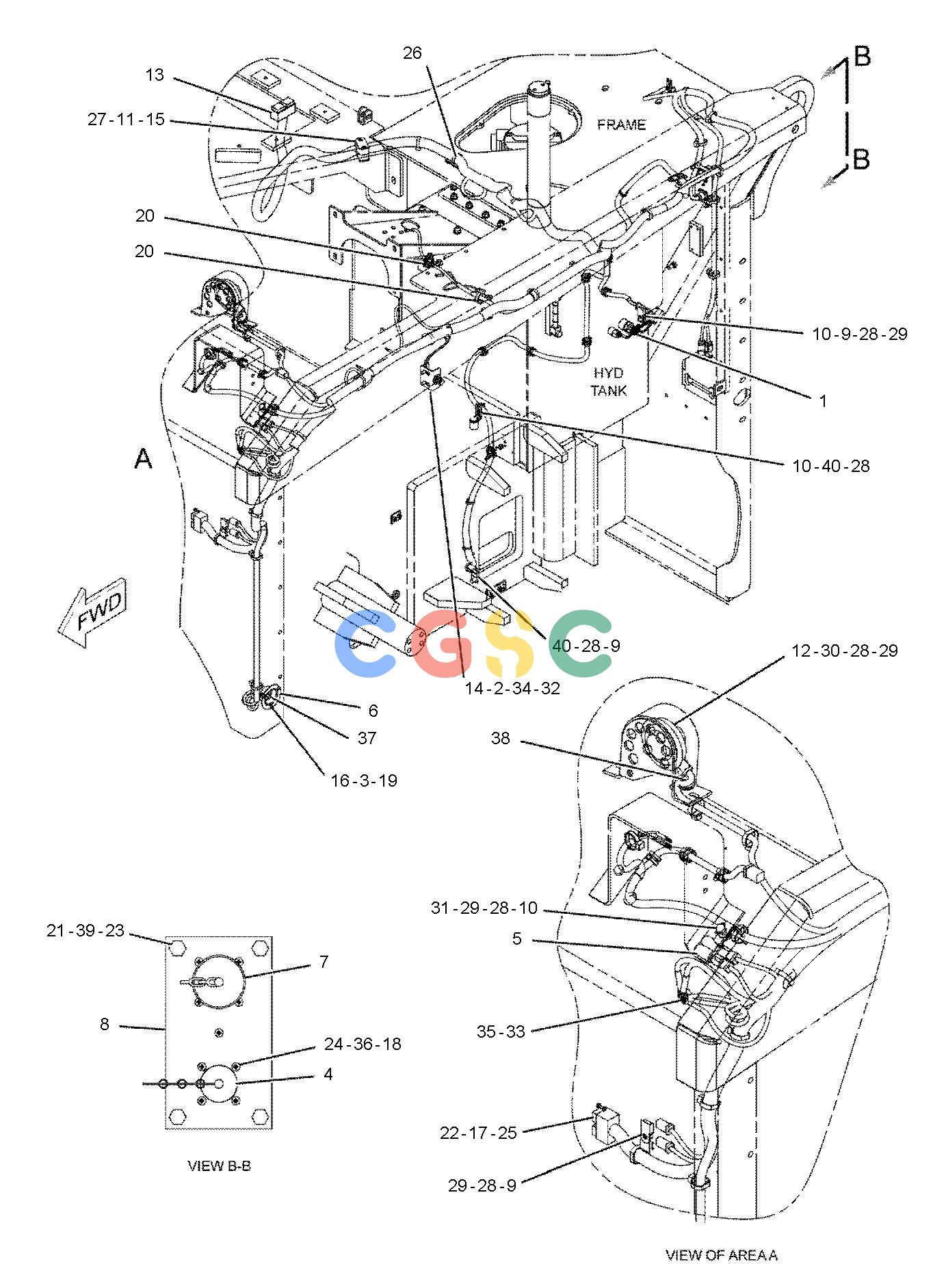

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093B | [30] | STRAP-CABLE | |
| 2. | 3T-3132 | [1] | SWITCH AS-LIMIT(DOOR) | |
| | 2H-3922 | [1] | LOCKWASHER | |
| | 6V-8363 | [2] | SCREW(10-32X0.312-IN) | |
| | 6V-8370 | [1] | NUT-HEX(3/4-32-THD) | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 9X-0199 | [1] | BOOT-SWITCH | |
| 3. | 4B-4274 | [3] | WASHER(5.5X13X1.2-MM THK) | |
| 4. | 8D-9537 | [1] | CAP-DUST | |
| 5. | 106-8704 | [2] | SUPPRESSOR AS-ARC | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 112-3101 | [1] | PLATE-FACE | |
| 7. | 112-5929 | [1] | CAP-DUST | |
| 8. | 112-8231 | [1] | PLATE | |
| 9. | 116-0118 | [5] | CLIP(SLOT) | |
| 10. | 132-5789 | [4] | CLIP(LADDER)(LADDER) | |
| 11. | 143-9644 | [1] | PLATE-RETAINER | |
| 12. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 13. | 186-6039 | [1] | HARNESS AS-CHASSIS(LH) | |
| 14. | 207-5242 | [1] | BRACKET | |
| 15. | 208-0075 | [2] | CLAMP-HALF | |
| 16. | 2N-3480 | [3] | SCREW-MACHINE(10-24X0.75-IN) | |
| 17. | 3B-4501 | [2] | LOCKWASHER | |
| 18. | 3C-6969M | [9] | NUT(M3X0.5-THD) | |
| 19. | 4B-2047 | [3] | NUT(10-24-THD) | |
| 20. | 4P-7581 | [2] | CLIP(LADDER)(LADDER) | |
| 21. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 22. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 23. | 6V-7357M | [4] | BOLT(M6X1X25-MM) | |
| 24. | 6V-9671M | [9] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 25. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 26. | 7K-1181B | [28] | STRAP-CABLE | |
| 27. | 8T-2947M | [2] | BOLT(M6X1X45-MM) | |
| 28. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 30. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 31. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 32. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 33. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 35. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 36. | 9B-1117 | [9] | LOCKWASHER | |
| 37. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 38. | 9X-7345 | [1] | GROMMET | |
| 39. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 40. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
