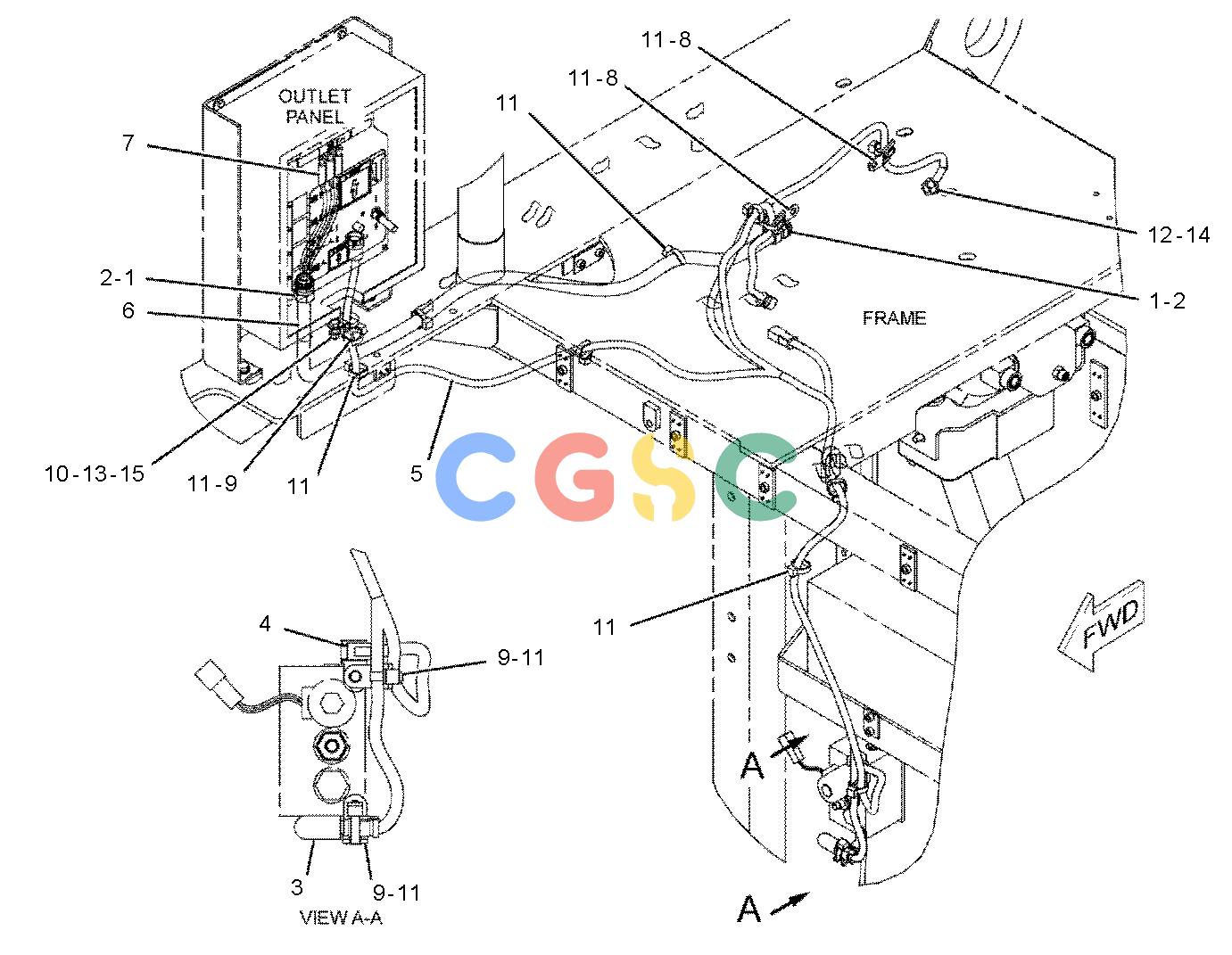

卡特零件查询（AP-655C） 215-8089: WIRING GP-HYDRAULIC GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
973 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6814 | [2] | CONNECTOR | |
| 2. | 6Y-6815 | [2] | GASKET AS(CONNECTOR) | |
| 3. | 106-8704 | [1] | SUPPRESSOR AS-ARC | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 4. | 116-0118 | [1] | CLIP(SLOT) | |
| 5. | 215-3604 | [1] | HARNESS AS(GENERATOR) | |
| 6. | 215-9298 | [1] | HARNESS AS(GENERATOR) | |
| 7. | 2L-8057 | [3] | TERMINAL-RING(8-GA, NO. 10 SCREW) | |
| | | | -OR- |
| | 2L-8049 | [3] | TERMINAL-RING(6-GA, NO. 10 SCREW) | |
| 8. | 4P-7581 | [2] | CLIP(LADDER)(LADDER) | |
| 9. | 4P-8134 | [3] | CLIP(LADDER)(LADDER) | |
| 10. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 11. | 7K-1181 | [12] | STRAP-CABLE | |
| 12. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 15. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
