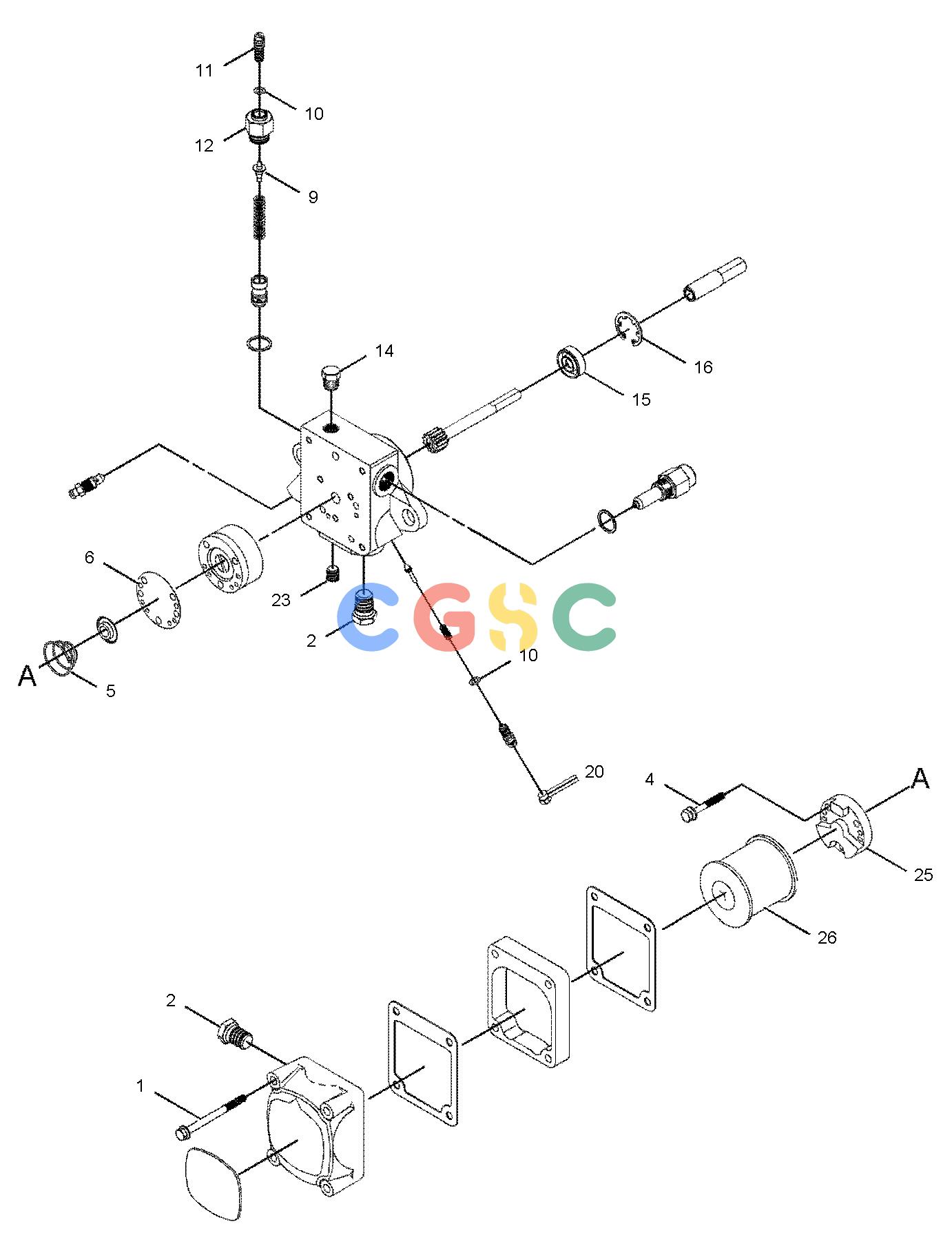

卡特零件查询（AP-655C） 192-4302: PUMP GP-FUEL
广数供应链运营团队, 16 02月, 2025，浏览：
262 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 138-0965 | [4] | SCREW | |
| 2. | 5M-6213 | [2] | PLUG-PIPE | |
| 4. | 138-8522 | [3] | SCREW | |
| 5. | 137-5578 | [1] | SPRING-DIAPHRAGM | |
| 6. | 137-5580 | [1] | DIAPHRAGM | |
| 9. | 137-5583 | [1] | SEAT-SPRING | |
| 10. | 8F-7219 | [2] | SEAL-O-RING | |
| 11. | 137-5581 | [1] | SCREW-ADJUSTMENT | |
| 12. | 137-5582 | [1] | PLUG-ADJUSTMENT | |
| 14. | 5M-6214 | [1] | PLUG(1/8-27 PTF) | |
| 15. | 138-0964 | [1] | SEAL-LIP TYPE | |
| 16. | 138-1172 | [1] | RING-RETAINING | |
| 20. | 138-0963 | [1] | PLUG | |
| 23. | 4D-0514 | [1] | PLUG-PIPE | |
| 25. | 137-5577 | [1] | PLATE-END | |
| 26. | 137-5576 | [1] | STRAINER(FUEL PUMP) | |
