卡特零件查询（AP-655C） 235-6331: PUMP GP-FUEL INJECTION
广数供应链运营团队, 16 02月, 2025，浏览：
779 次

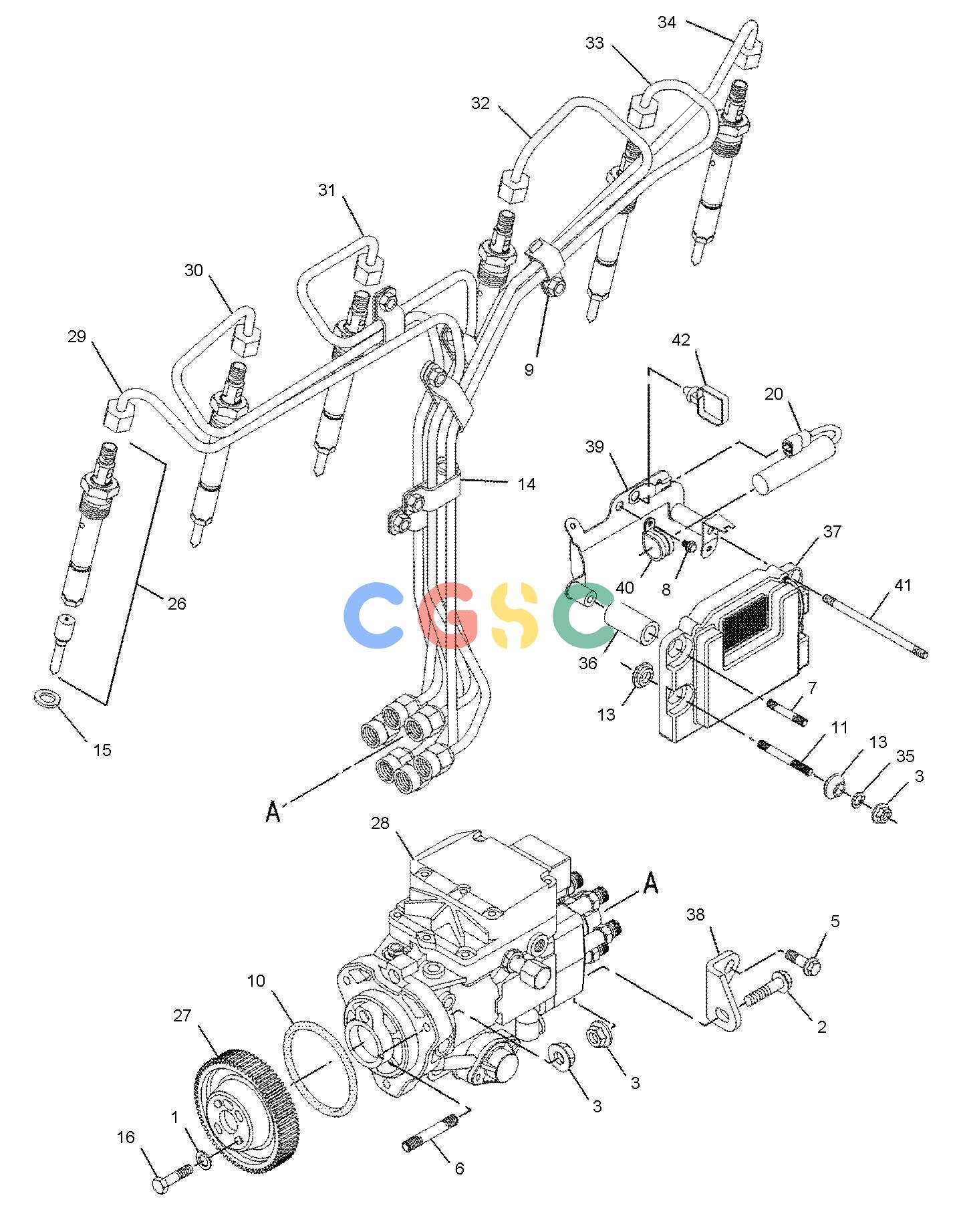

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-4277 | [4] | WASHER(8.8X17.5X1.6-MM THK) | |
| 2. | 6I-0217M | [1] | BOLT(M8X1.25X20-MM) | |
| 3. | 6I-0291M | [8] | NUT(M8X1.25-THD) | |
| 4. | 7M-7410 | [1] | PLUG-PIPE | |
| 5. | 100-4830M | [1] | BOLT(M10X1.5X20-MM) | |
| 6. | 101-3877 | [3] | STUD(M8X1.25X37-MM) | |
| 7. | 103-1074 | [1] | STUD | |
| 8. | 114-4363M | [3] | BOLT(M8X1.25X12-MM) | |
| 9. | 124-3708 | [3] | CLIP | |
| 10. | 145-8327 | [1] | SEAL-O-RING | |
| 11. | 147-5551 | [2] | STUD | |
| 12. | 149-2091 | [1] | SEAL-O-RING | |
| 13. | 155-0576 | [5] | MOUNT-ISOLATION | |
| 14. | 162-9992 | [3] | CLIP | |
| 15. | 164-3207 | [6] | WASHER | |
| 16. | 179-7071 | [4] | BOLT(M8X1.25X20-MM) | |
| 17. | 199-9252 | [1] | SEAL-O-RING | |
| 18. | 199-9267 | [1] | SEAL-O-RING | |
| 19. | 199-9751 | [2] | SEAL-O-RING | |
| 20. | 270-5322 | [1] | CONTROL GP-VOLTAGE(24-VOLT)(LOAD PROTECTION) | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 1S-9593 | [2] | STRAP-CABLE | |
| 21. | 216-3436 | [1] | SENSOR GP-TEMPERATURE(ENGINE COOLANT) | |
| 22. | 216-3436 | [1] | SENSOR GP-TEMPERATURE(AIR INLET) | |
| 23. | 216-3446 | [1] | SENSOR GP-SPEED(TIMING) | |
| 24. | 216-3448 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 25. | 216-3450 | [1] | SENSOR GP-PRESSURE(BOOST) | |
| 26. | 216-9786 | [6] | INJECTOR AS-FUEL | |
| 27. | 216-9790 | [1] | GEAR-FUEL PUMP(68-TEETH) | |
| 28. | 216-9824 | [1] | PUMP GP-FUEL INJECTION | |
| 29. | 216-9826 | [1] | TUBE AS(CYL NO. 1) | |
| 30. | 216-9828 | [1] | TUBE AS(CYL NO. 2) | |
| 31. | 216-9830 | [1] | TUBE AS(CYL NO. 3) | |
| 32. | 216-9831 | [1] | TUBE AS(CYL NO. 4) | |
| 33. | 216-9834 | [1] | TUBE AS(CYL NO. 5) | |
| 34. | 216-9835 | [1] | TUBE AS(CYL NO. 6) | |
| 35. | 217-0099 | [7] | SPACER(8.2X25X2-MM THK) | |
| 36. | 217-0100 | [4] | SPACER(8.2X12.7X25.4-MM THK) | |
| 37. | 221-1018 | [1] | CONTROL GP-UNPROGRAMMED | |
| 38. | 228-8943 | [1] | BRACKET | |
| 39. | 228-8956 | [1] | BRACKET | |
| 40. | 228-8960 | [1] | CLIP | |
| 41. | 235-5917 | [1] | STUD | |
| 42. | 235-6281 | [1] | TIE-CABLE | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
