卡特零件查询（AP-655C） 149-2683: SEPARATOR GP-WATER
广数供应链运营团队, 16 02月, 2025，浏览：
469 次

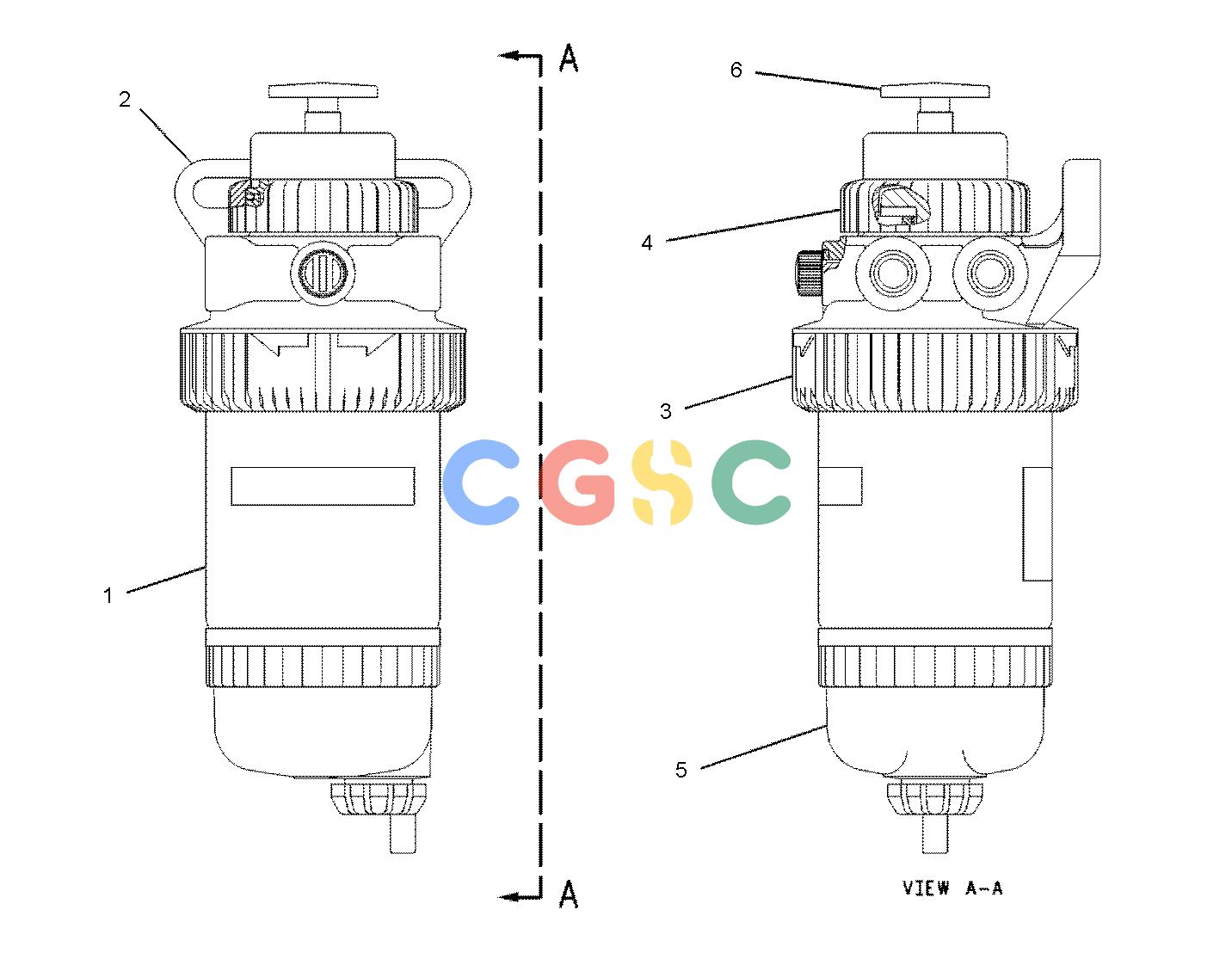

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 151-2409 | [1] | ELEMENT-WATER SEPARATOR(PRIMARY) | |
| 2. | 149-2684 | [1] | BASE AS | |
| 3. | 118-8118 | [1] | RING-RETAINING | |
| 4. | 118-8119 | [1] | NUT | |
| 5. | 112-9401 | [1] | BOWL AS-WATER COLLECTION | |
| | 128-8614 | [1] | KIT-SEAL(WATER SEPARATOR) | |
| | | | (INCLUDES SEALS) |
| 6. | 149-2685 | [1] | PUMP GP-FUEL PRIMING(PRIMARY FILTER) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 121-4480 | [1] | KIT-WATER BASE(WATER SEPARATOR) | |
| | | | (INCLUDES CAP NUT, CAP SEAL, HEADER CAP, VENT PLUG, O-RING SEAL, RETAINING RING, DUST SEAL & VOLUME PLUG) |
