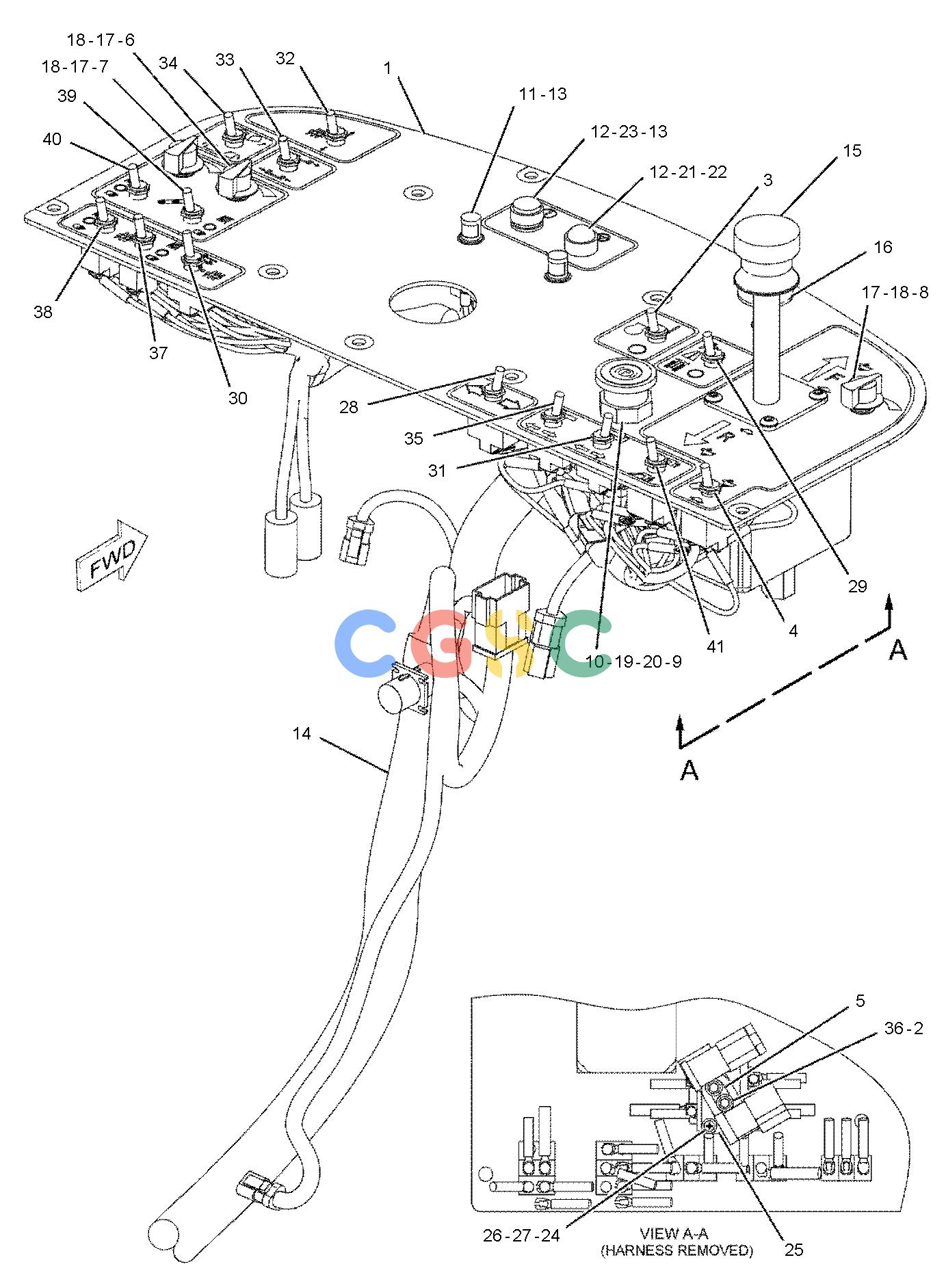

| 1. | 197-8658 | [1] | PLATE | |
| 2. | 6D-3031 | [2] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 3. | 081-7041 | [1] | SWITCH AS-TOGGLE(ENGINE ON/OFF) | |
| 4. | 081-7041 | [1] | SWITCH AS-TOGGLE(THROTTLE) | |
| 5. | 116-0118 | [2] | CLIP(SLOT) | |
| 6. | 134-6048 | [1] | POTENTIOMETER AS(RH CONVEYER SPEED DIAL) | |
| 7. | 134-6048 | [1] | POTENTIOMETER AS(LH CONVEYER SPEED DIAL) | |
| 8. | 134-6048 | [1] | POTENTIOMETER AS(ENGINE SPEED DIAL) | |
| | | | (EACH POTENTIOMETER AS INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813BE | | SLEEVE | |
| 9. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(PARKING BRAKE) | |
| 10. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| 11. | 7G-9730 | [2] | LAMP AS(120-VOLT, 3-WATT) | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 12. | 9D-3127 | [2] | BASE AS-INDICATOR LIGHT | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 13. | 7N-5876 | [3] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 14. | 186-6044 | [1] | HARNESS AS(OPERATOR) | |
| 15. | 132-3090Y | [1] | LEVER GP-PROPEL | |
| 16. | 3T-2357 | [1] | SWITCH GP-PUSH BUTTON(HORN) | |
| | 2H-3922 | [1] | LOCKWASHER | |
| | 3B-4501 | [1] | LOCKWASHER | |
| | 5L-7200 | [1] | SCREW(8-32X0.375-IN) | |
| | 6V-8363 | [2] | SCREW(10-32X0.312-IN) | |
| | 6V-8370 | [1] | NUT-HEX(3/4-32-THD) | |
| | 7T-9515 | [1] | KNOB-HORN | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 9X-0199 | [1] | BOOT-SWITCH | |
| 17. | 7C-4550 | [3] | SEAL(ROTATING SHAFT) | |
| 18. | 1P-6509 | [3] | KNOB | |
| 19. | 116-5270 | [1] | LAMP(24-VOLT)(PARKING BRAKE) | |
| 20. | 116-5274 | [1] | KNOB(PARKING BRAKE) | |
| 21. | 116-5269 | [1] | LAMP(24-VOLT)(OPERATOR STATION SELECT) | |
| 22. | 9D-9161 | [1] | LENS-GREEN | |
| 23. | 9D-2868 | [1] | LENS-RED | |
| 24. | 180-5617 | [2] | BLOCK-CONTACT | |
| 25. | 199-6205 | [1] | PLATE | |
| 26. | 4B-5324 | [2] | WASHER(3.9X9.6X1.2-MM THK) | |
| 27. | 9X-6258 | [2] | SCREW-MACHINE(6-32X0.5-IN) | |
| 28. | 1V-6652 | [1] | SWITCH AS-TOGGLE(TURN SIGNAL) | |
| 29. | 1V-6652 | [1] | SWITCH AS-TOGGLE(TRAVEL/PAVE/MANEUVER) | |
| | | | (EACH SWITCH GP INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 30. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER REVERSE) | |
| 31. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH, RH) | |
| 32. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER HOIST) | |
| 33. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TRUCK HITCH) | |
| 34. | 9G-0011 | [1] | SWITCH AS-TOGGLE(HOPPER HOIST) | |
| 35. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH, LH) | |
| | | | (EACH SWITCH GP INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 36. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 37. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, RH) | |
| 38. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, LH) | |
| 39. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, RH) | |
| 40. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, LH) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 41. | 109-7186 | [1] | SWITCH GP-TOGGLE(SCREED HOIST) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| | | | |
| | 6V-1614BDF | | TUBE-HEAT SHRINK(9.52-MM DIA) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
