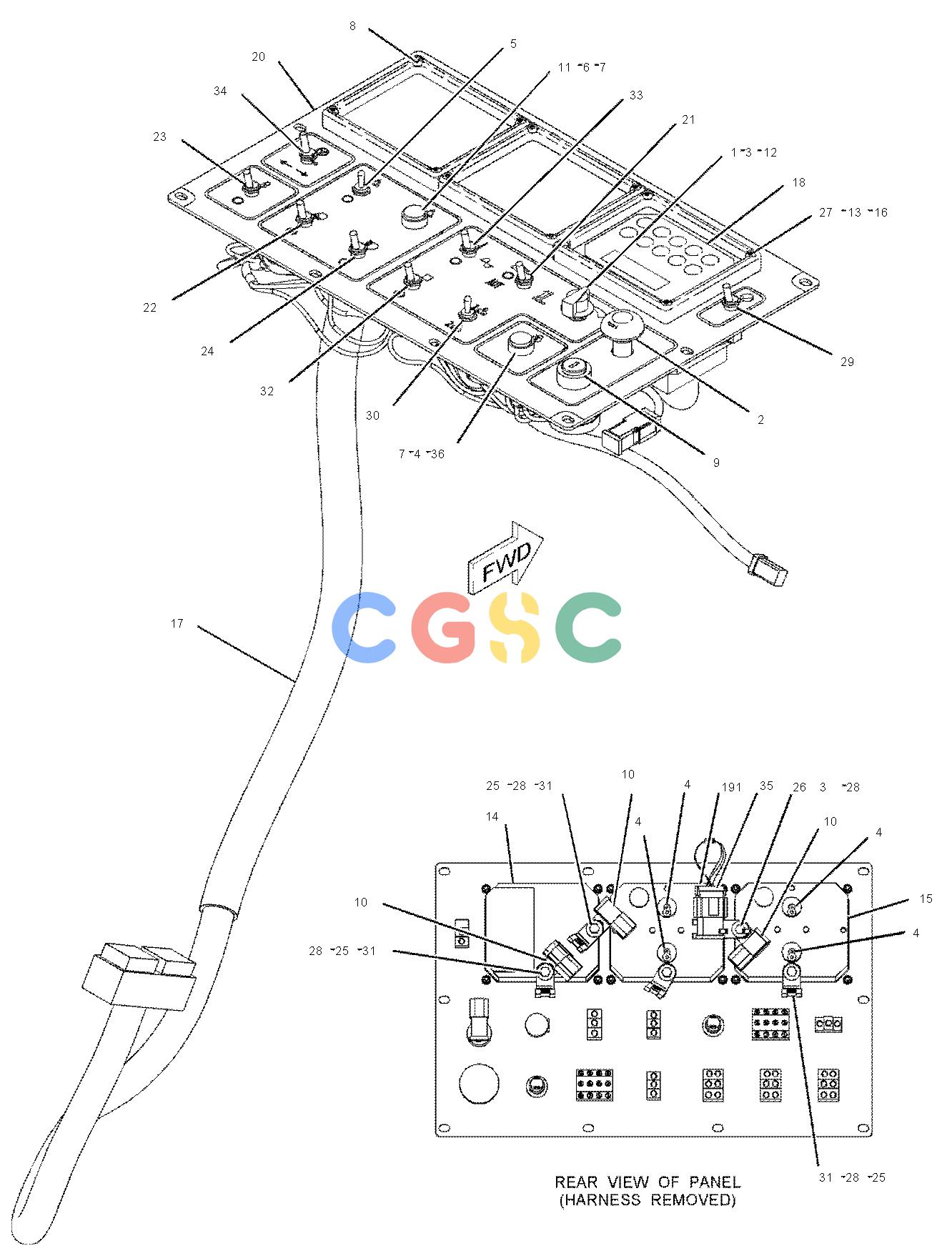

卡特零件查询（AP-655C） 198-4295: PANEL GP-INSTRUMENT
广数供应链运营团队, 16 02月, 2025，浏览：
880 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-6509 | [1] | KNOB(TAMPER SPEED DIAL) | |
| 2. | 3T-2357 | [1] | SWITCH GP-PUSH BUTTON(HORN) | |
| | 2H-3922 | [1] | LOCKWASHER | |
| | 3B-4501 | [1] | LOCKWASHER | |
| | 5L-7200 | [1] | SCREW(8-32X0.375-IN) | |
| | 6V-8363 | [2] | SCREW(10-32X0.312-IN) | |
| | 6V-8370 | [1] | NUT-HEX(3/4-32-THD) | |
| | 7T-9515 | [1] | KNOB-HORN | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 9X-0199 | [1] | BOOT-SWITCH | |
| 3. | 7C-4550 | [1] | SEAL(ROTATING SHAFT) | |
| 4. | 7N-5876 | [5] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 5. | 8C-0378 | [1] | SWITCH-TOGGLE(HAZARD LIGHTS) | |
| 6. | 087-0812 | [1] | LENS-CLEAR | |
| 7. | 9D-3127 | [2] | BASE AS-INDICATOR LIGHT | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 8. | 100-5566 | [3] | BEZEL | |
| 9. | 110-7887 | [1] | SWITCH AS-START(KEY) | |
| | 3E-3377 | [1] | WEDGE-RECEPTACLE LOCK(4-PIN) | |
| | 7T-6799 | [1] | NUT-MOUNTING(1-32-THD) | |
| | 186-3735 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 10. | 116-0118 | [3] | CLIP(SLOT) | |
| 11. | 116-5270 | [1] | LAMP(24-VOLT) | |
| 12. | 134-6048 | [1] | POTENTIOMETER AS(TAMPER SPEED) | |
| | 102-8803 | [3] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813BE | | SLEEVE | |
| | BE | | TUBE-HEAT SHRINK(4.8-MM DIA) |
| 13. | 143-1284M | [12] | SCREW-BUTTON HEAD(M5X0.8X30-MM) | |
| 14. | 160-6567Y | [1] | CONTROL GP-UNPRGMED MONITOR(CATERPILLAR MONITORING SYSTEM) | |
| 15. | 166-6943Y | [1] | MODULE GP-QUAD GAUGE | |
| 16. | 179-4324M | [12] | LOCKNUT(M5X0.8-THD) | |
| 17. | 186-6045 | [1] | HARNESS AS(INSTRUMENTS) | |
| 18. | 193-5489 | [1] | FILM(MONITOR, INSTRUMENT PANEL)(BATTERY) | |
| 19. | 194-1926Y | [1] | MODULE GP-SPEEDOMETER & TACH | |
| 20. | 196-1187 | [1] | PLATE | |
| 21. | 1V-6652 | [1] | SWITCH AS-TOGGLE(TAMPER) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 22. | 3T-4405 | [1] | SWITCH GP-TOGGLE(WORK LIGHT) | |
| 23. | 3T-4405 | [1] | SWITCH GP-TOGGLE(IMPLEMENT LOCKOUT) | |
| 24. | 3T-4405 | [1] | SWITCH GP-TOGGLE(RUNNING LIGHT) | |
| | | | (EACH SWITCH GP INCLUDES) |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 25. | 4P-7429 | [4] | CLIP(LADDER)(LADDER) | |
| 26. | 4P-7581 | [1] | CLIP(LADDER)(LADDER) | |
| 27. | 8T-0328 | [12] | WASHER-HARD(5.5X10X1-MM THK) | |
| 28. | 8T-4171M | [5] | BOLT(M6X1X12-MM) | |
| 29. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(MODE SCROLL) | |
| 30. | 8C-0378 | [1] | SWITCH-TOGGLE(CONTROL SELECT) | |
| 31. | 4B-5269 | [5] | WASHER(7.9X19X1.6-MM THK) | |
| 32. | 4D-1836 | [1] | SWITCH-TOGGLE(SCREED COUNTER BALANCE) | |
| 33. | 4D-1836 | [1] | SWITCH-TOGGLE(VIBRATORY) | |
| 34. | 4D-1836 | [1] | SWITCH-TOGGLE(OPERATOR STATION SELECT) | |
| 35. | 186-6042 | [1] | PLUG AS-CODE | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 36. | 9D-2868 | [1] | LENS-RED | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
