卡特零件查询（AP-655C） 205-5917: PLATFORM GP
广数供应链运营团队, 16 02月, 2025，浏览：
220 次

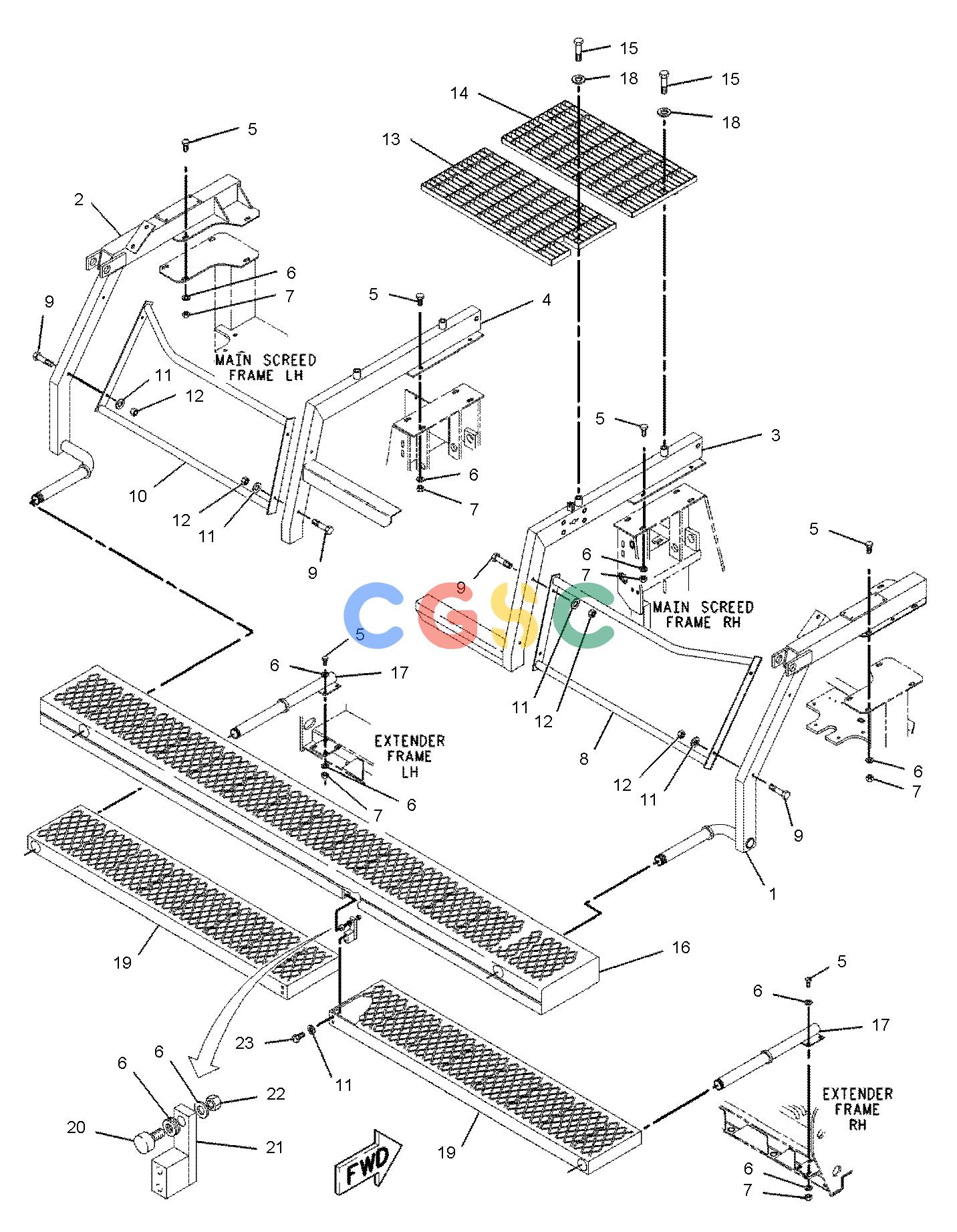

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 123-9751 | [1] | SUPPORT AS-PLATFORM(RH INNER) | |
| 2. | 123-9752 | [1] | SUPPORT AS-PLATFORM(LH INNER) | |
| 3. | 205-5911 | [1] | PLATFORM AS(RH) | |
| | 7T-1099 | [3] | LINK | |
| 4. | 205-5910 | [1] | PLATFORM AS(LH) | |
| 5. | 5P-2566 | [26] | BOLT(1/2-13X1.5-IN) | |
| 6. | 8T-4223 | [64] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 6V-8188 | [26] | NUT(1/2-13-THD) | |
| 8. | 8I-0415 | [1] | HANDRAIL AS(RH) | |
| 9. | 8T-9101 | [8] | BOLT(3/8-16X2.75-IN) | |
| 10. | 8I-0980 | [1] | HANDRAIL AS(LH) | |
| 11. | 8T-4896 | [16] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 12. | 2K-4973 | [8] | LOCKNUT(3/8-16-THD) | |
| 13. | 118-3614 | [1] | PLATFORM AS-TOP | |
| 14. | 196-5237 | [1] | PLATFORM AS-TOP(ENTENDER) | |
| 15. | 8T-9383 | [4] | BOLT(1/2-13X0.75-IN) | |
| 16. | 8I-0983 | [1] | PLATFORM AS-MAIN | |
| 17. | 8I-0420 | [2] | SUPPORT AS-PLATFORM | |
| 18. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 19. | 147-1074C | [2] | EXTENSION AS-PLATFORM | |
| 20. | 8I-0985 | [4] | ROLLER-TRACK | |
| 21. | 8I-0984 | [4] | SUPPORT AS-TRACK ROLLER | |
| 22. | 6B-6684 | [4] | NUT-FULL(1/2-20-THD) | |
| 23. | 5M-3062 | [8] | BOLT(3/8-16X0.75-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
