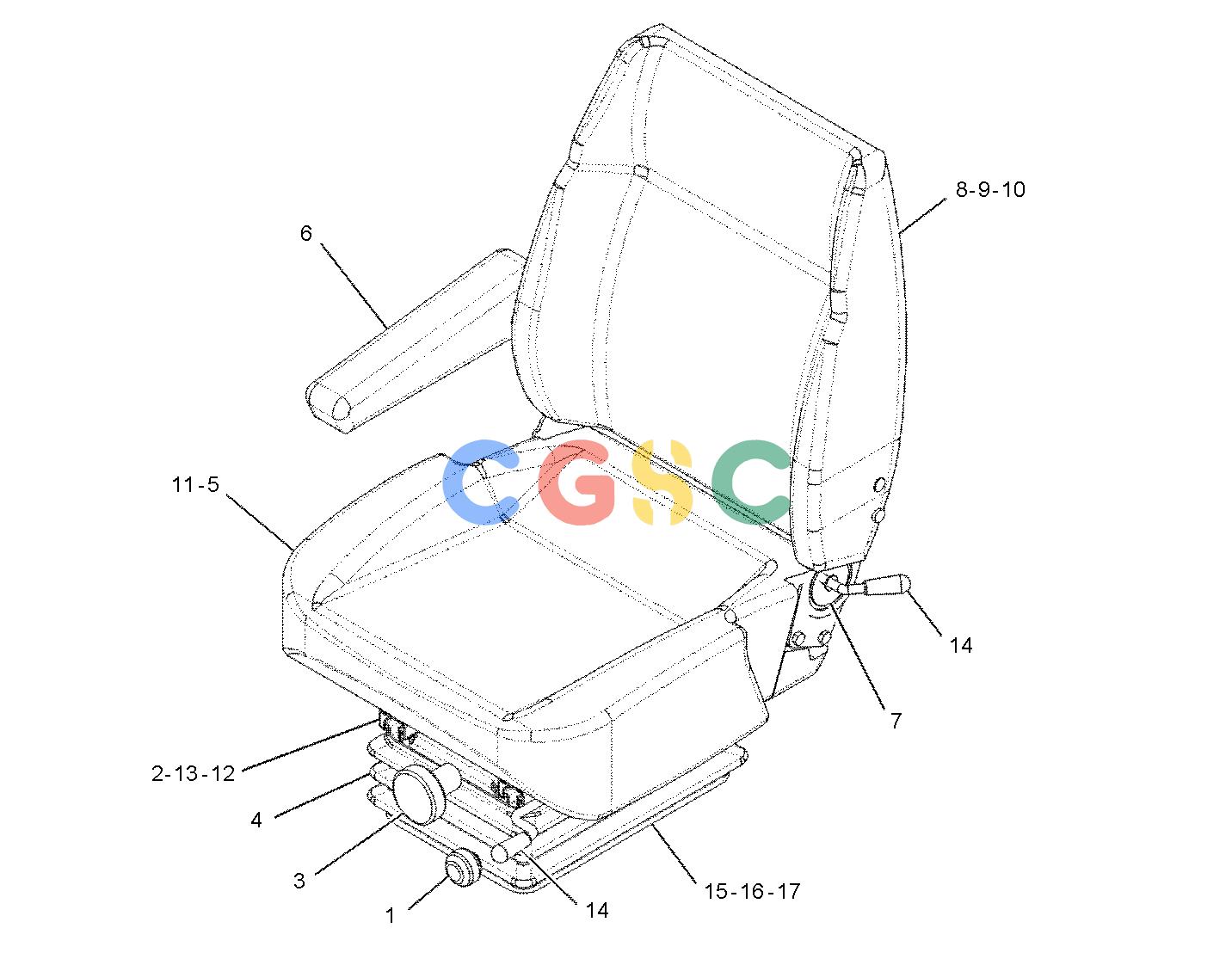

卡特零件查询（AP-655C） 197-7902: SEAT GP-SUSPENSION
广数供应链运营团队, 16 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 217-5821 | [1] | ADJUSTER GP-HEIGHT | |
| 2. | 202-4739 | [1] | KIT-STOP(SUSPENSION SEAT) | |
| 3. | 202-4740 | [1] | KIT-ADJUSTER | |
| 4. | 202-4733 | [1] | KIT-BOOT(SUSPENSION SEAT) | |
| 5. | 233-7532 | [1] | COVER-SEAT(BOTTOM, VINYL) | |
| 6. | 233-7538 | [1] | ARMREST(RH) | |
| 7. | | [1] | SUPPORT |
| 8. | 233-7530 | [1] | COVER-SEAT(BACK, VINYL) | |
| 9. | 190-9732 | [1] | KIT-FOAM BACK(SUSPENSION SEAT) | |
| 10. | 233-7531 | [1] | FRAME | |
| 11. | 233-7533 | [1] | FOAM-SEAT(BOTTOM) | |
| 12. | 233-7535 | [1] | KIT-RAIL(SUSPENSION SEAT) | |
| 13. | 233-7536 | [1] | KIT-STRAP(SUSPENSION SEAT) | |
| 14. | 233-7534 | [1] | KIT-KNOB(SUSPENSION SEAT) | |
| 15. | 210-8271 | [1] | SUSPENSION AS-SEAT | |
| 16. | 202-4736 | [1] | KIT-DAMPER | |
| 17. | 202-4737 | [1] | KIT-SEAT(INDICATORS)(SEAT) | |
