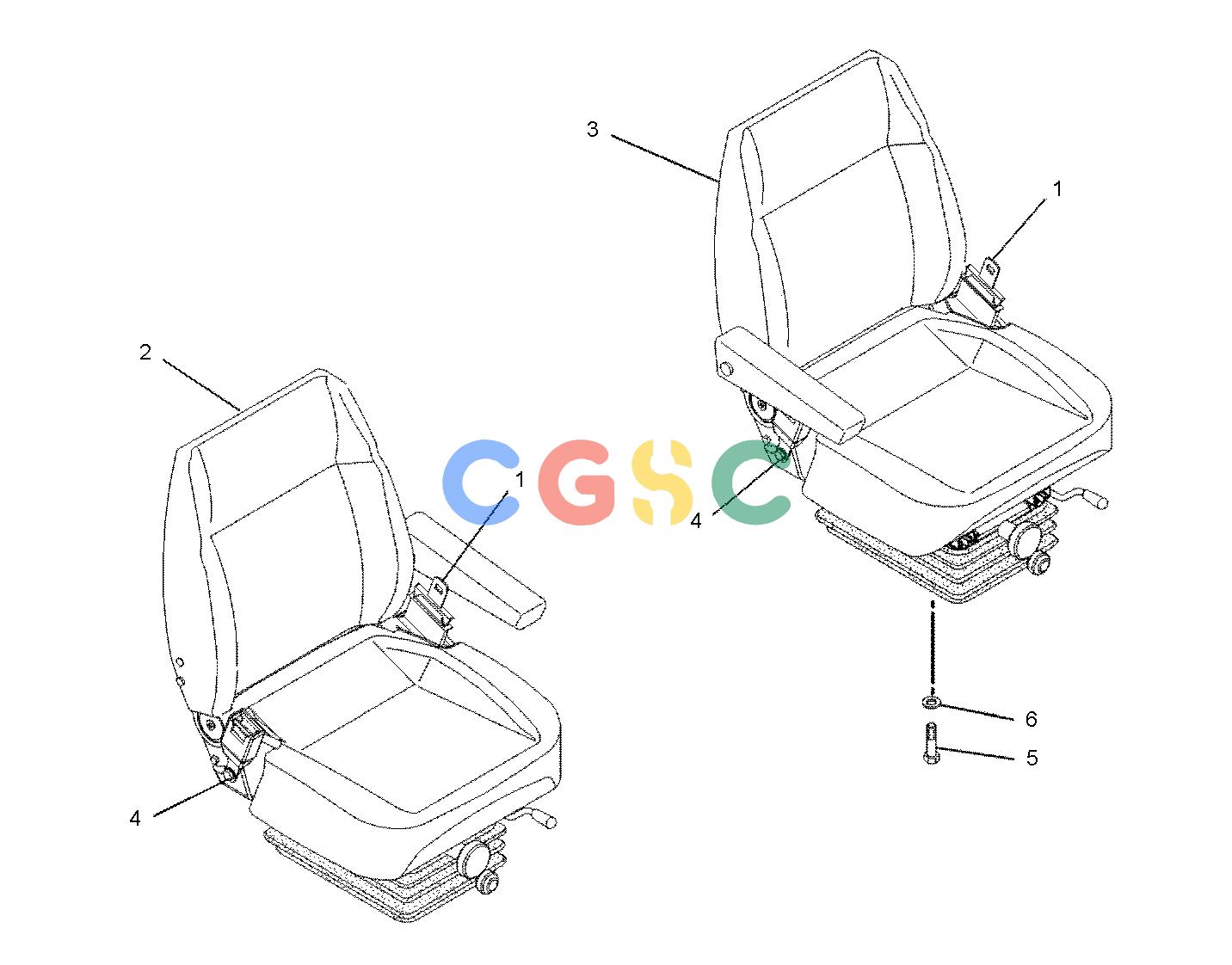

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 197-6351 | [2] | SEAT BELT GP | |
| 2. | 197-7901Y | [1] | SEAT GP-SUSPENSION(VINYL)(RH) | |
| 3. | 197-7902Y | [1] | SEAT GP-SUSPENSION(VINYL)(LH) | |
| 4. | 199-1493 | [2] | FASTENER GP-SEAT | |
| 5. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 6. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
