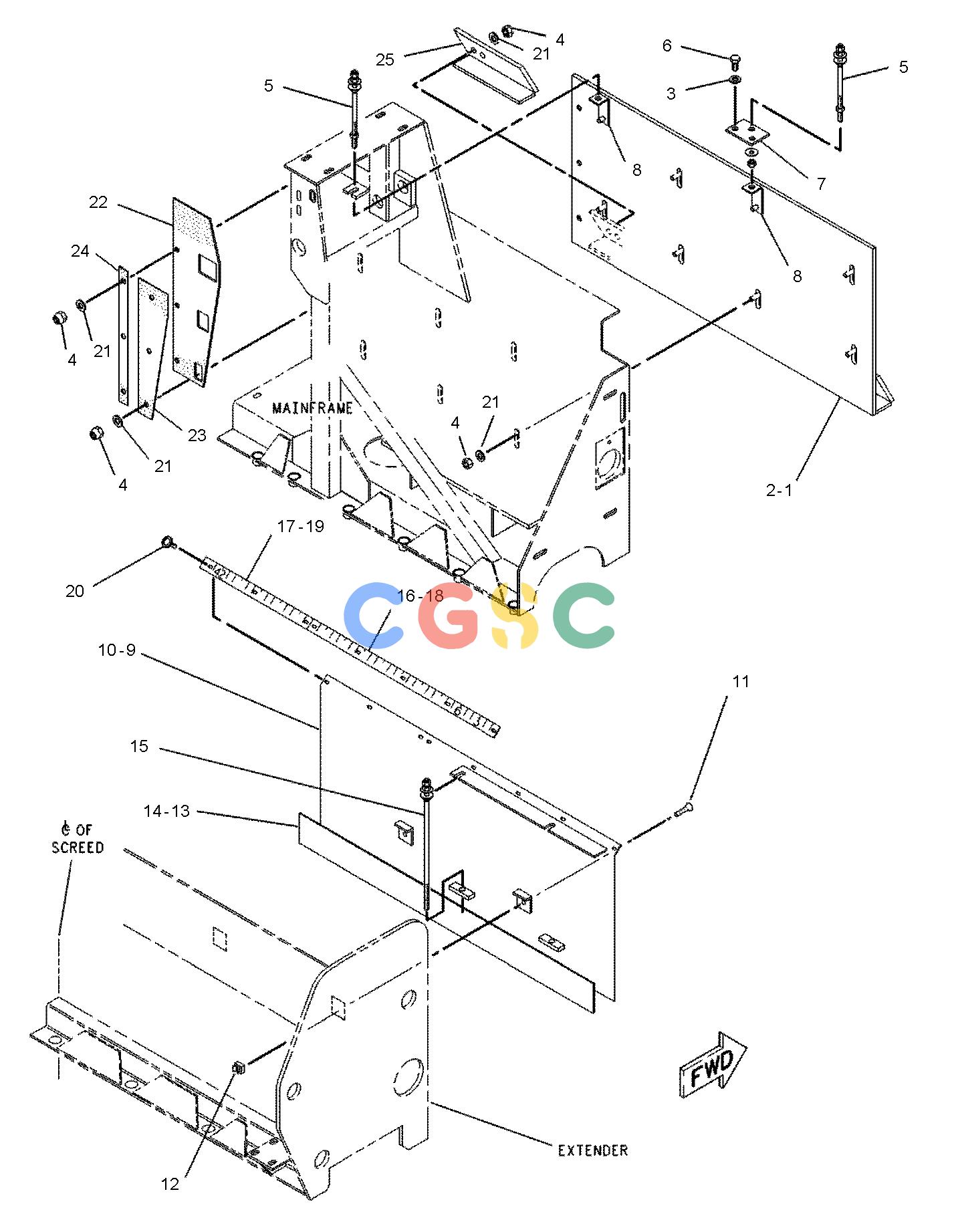

卡特零件查询（AP-655C） 8I-0291: DEFLECTOR GP
广数供应链运营团队, 16 02月, 2025，浏览：
360 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-7352 | [1] | PLATE AS(RH) | |
| 2. | 124-7354 | [1] | PLATE AS(LH) | |
| 3. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 4. | 1K-6872 | [24] | LOCKNUT(1/2-13-THD) | |
| 5. | 8I-0295 | [4] | ROD AS-ADJUSTING | |
| | | | (EACH INCLUDES) |
| | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| | 6V-8188 | [3] | NUT(1/2-13-THD) | |
| 6. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 7. | 8I-0332 | [2] | PLATE-MOUNTING | |
| 8. | 8I-0305 | [1] | BRACKET AS-ADJUSTMENT | |
| | 8T-5911 | [1] | NUT-WELD(1/2-13-THD) | |
| 9. | 8I-0299 | [1] | PLATE AS(RH) | |
| 10. | 8I-0298 | [1] | PLATE AS(LH) | |
| 11. | 107-2784 | [8] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 12. | 104-2231 | [8] | NUT-SPRING | |
| 13. | 8I-0301 | [1] | PLATE AS(RH) | |
| 14. | 8I-0987 | [1] | PLATE AS(LH) | |
| 15. | 8I-0302 | [1] | ROD AS-ADJUSTING | |
| 16. | 8I-0323 | [1] | SCALE(29-IN) | |
| 17. | 107-3182 | [1] | SCALE(RH) | |
| 18. | 8I-0325 | [1] | SCALE(29-IN) | |
| 19. | 107-3183 | [1] | SCALE(LH) | |
| 20. | 5D-8412 | [16] | SCREW-ROUND HEAD(8-32X0.5-IN) | |
| 21. | 5P-1076 | [20] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 134-0041 | [1] | PLATE-SPLICE | |
| 23. | 124-7350 | [1] | PLATE | |
| 24. | 124-7351 | [1] | PLATE | |
| 25. | 146-6857 | [1] | PLATE AS-COVER | |
