卡特零件查询（AP-655C） 231-2035: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 16 02月, 2025，浏览：
907 次

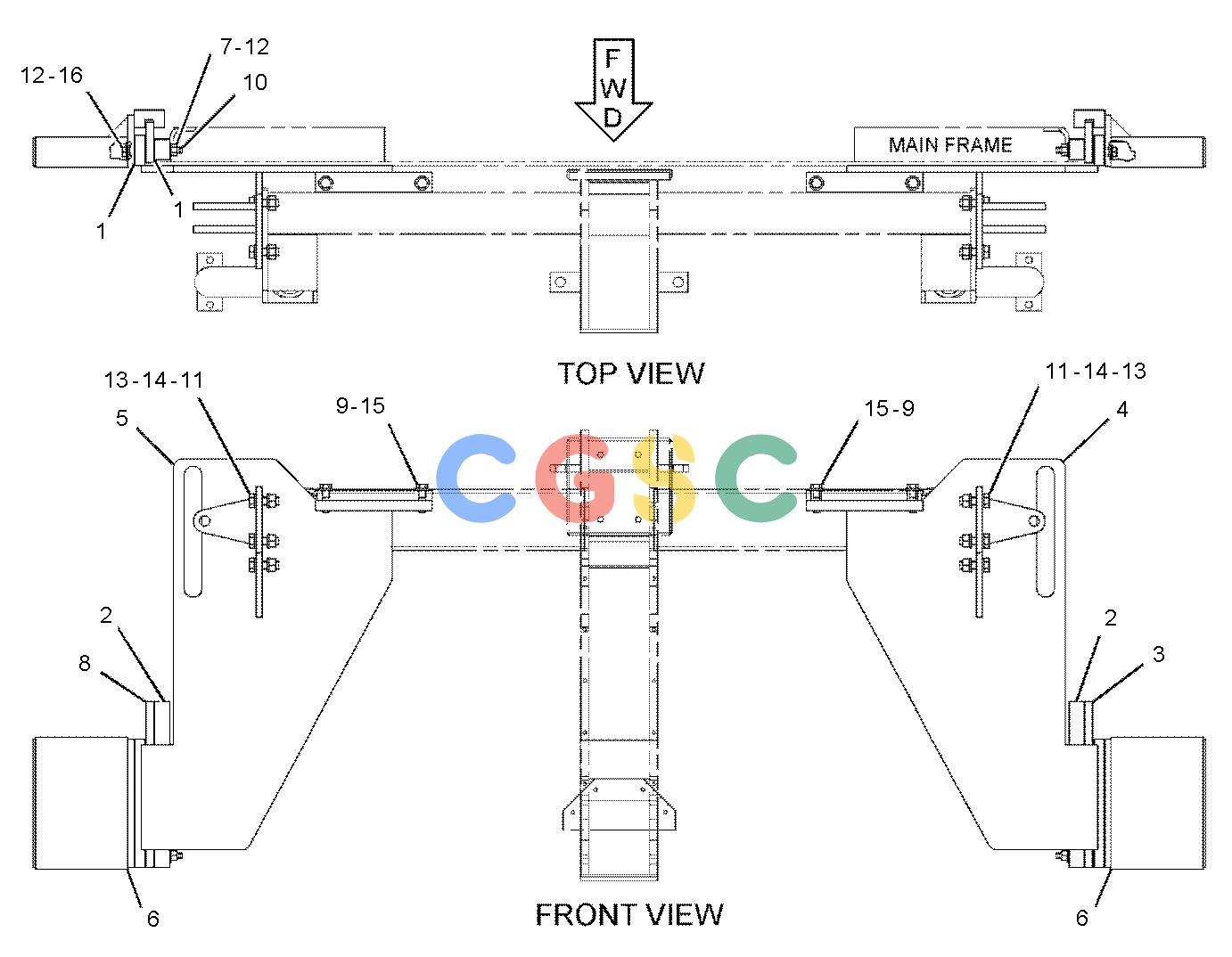

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 121-3920B | [4] | SHIM(1.65-MM THK) | |
| 2. | 228-2749 | [2] | BAR | |
| 3. | 228-2750 | [1] | BAR(RH) | |
| 4. | 228-2753 | [1] | SUPPORT AS(RH) | |
| 5. | 228-2754 | [1] | SUPPORT AS(LH) | |
| 6. | 228-2755 | [2] | EXTENSION AS | |
| 7. | 8T-4132M | [6] | NUT(M16X2-THD) | |
| 8. | 233-9197 | [1] | BAR(LH) | |
| 9. | 7X-0515 | [4] | WASHER-HARD(17X35X5-MM THK) | |
| 10. | 7X-2555M | [6] | BOLT(M16X2X80-MM) | |
| 11. | 7X-2563M | [6] | BOLT(M20X2.5X60-MM) | |
| 12. | 8T-4122 | [12] | WASHER-HARD(17X32X3.5-MM THK) | |
| 13. | 8T-4123 | [12] | WASHER(3.62X5.75X0.375-MM THK) | |
| 14. | 8T-4131M | [6] | NUT(M20X2.5-THD) | |
| 15. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 16. | 8T-7338M | [6] | BOLT(M16X2X45-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
