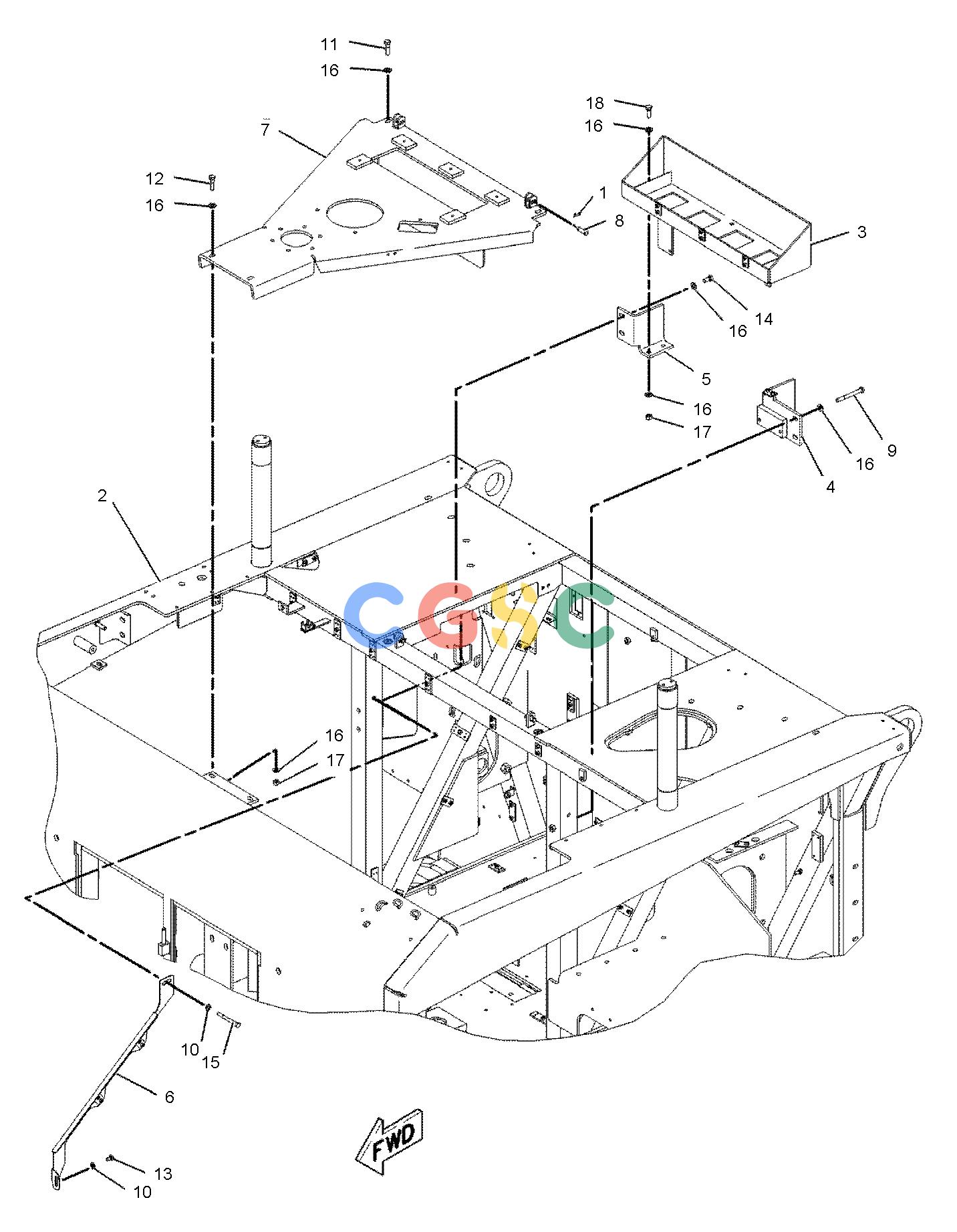

卡特零件查询（AP-655C） 188-9272: FRAME AS
广数供应链运营团队, 16 02月, 2025，浏览：
861 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-4617 | [2] | PIN-COTTER | |
| 2. | 188-9284 | [1] | FRAME GP | |
| 3. | 207-0621 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 4. | 207-0682 | [1] | PLATE AS | |
| 5. | 224-1392 | [1] | PLATE | |
| 6. | 224-1395 | [1] | PLATE AS | |
| 7. | 224-1396 | [1] | PLATE AS | |
| 8. | 8B-1419 | [2] | PIN-CLEVIS | |
| 9. | 8T-0646M | [2] | BOLT(M12X1.75X110-MM) | |
| 10. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 12. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 13. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 14. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 15. | 8T-4198M | [1] | BOLT(M10X1.5X100-MM) | |
| 16. | 8T-4223 | [18] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
