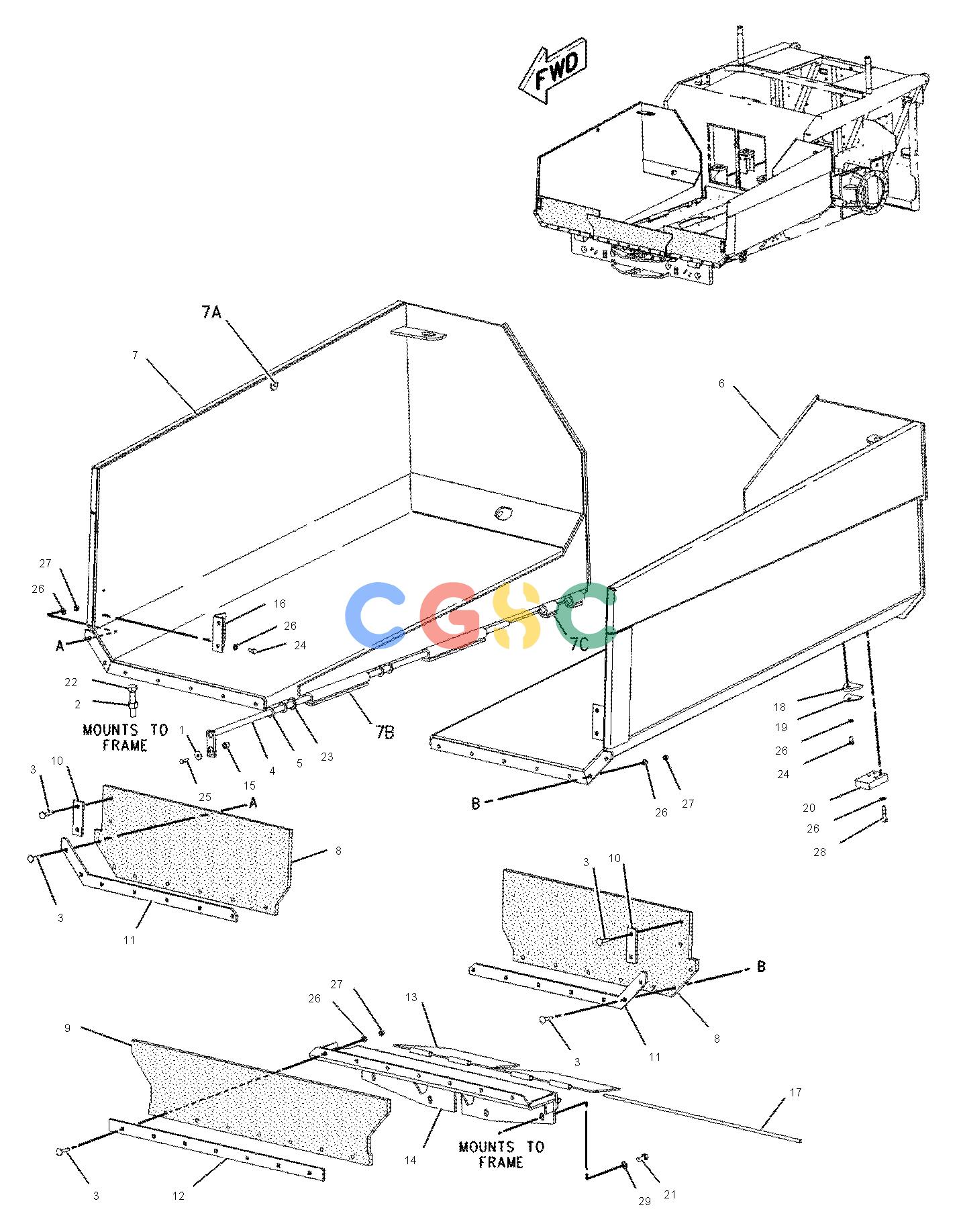

卡特零件查询（AP-655C） 190-7438: HOPPER GP
广数供应链运营团队, 16 02月, 2025，浏览：
595 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-9738 | [2] | WASHER(10.5X38X1.6-MM THK) | |
| 2. | 152-0191M | [2] | BOLT(M24X3X120-MM) | |
| 3. | M | [25] | BOLT-CARRIAGE(M12X1.75X60-MM) |
| 4. | 166-8785 | [2] | PIN AS | |
| 5. | 185-4025B | [2] | SHIM(1.2-MM THK) | |
| 6. | 190-7440 | [1] | HOPPER AS | |
| 7. | 190-7441 | [1] | HOPPER AS | |
| | | | (EACH HOPPER AS INCLUDES) |
| 7A. | 115-2616 | [1] | BOSS(M12X1.75X20-MM) | |
| 7B. | 166-8786 | [2] | TUBE | |
| 7C. | 166-8787 | [2] | TUBE | |
| 8. | 197-0498 | [2] | FLASHING | |
| 9. | 197-0499 | [1] | FLASHING | |
| 10. | 197-0500 | [2] | STRAP | |
| 11. | 197-0501 | [2] | STRAP | |
| 12. | 197-0502 | [1] | STRAP | |
| 13. | 197-0507 | [2] | COVER AS | |
| 14. | 197-0508 | [1] | APRON AS | |
| 15. | 197-0509 | [2] | SPACER(13.8X23.7X16-MM THK) | |
| 16. | 197-0510 | [2] | SUPPORT | |
| 17. | 197-1464 | [1] | PIN | |
| 18. | 206-0576 | [2] | PLATE | |
| 19. | 206-0577 | [2] | PLATE | |
| 20. | 217-5896 | [2] | STOP | |
| 21. | 7X-2553M | [4] | BOLT(M16X2X40-MM) | |
| 22. | 8T-4001M | [2] | NUT(M24X3-THD) | |
| 23. | 8T-4167B | [8] | WASHER-HARD(26X44X4-MM THK) | |
| 24. | 8T-4192M | [6] | BOLT(M12X1.75X25-MM) | |
| 25. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 26. | 8T-4223 | [39] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 27. | 8T-4244M | [25] | NUT(M12X1.75-THD) | |
| 28. | 8T-4910M | [8] | BOLT(M12X1.75X60-MM) | |
| 29. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
