卡特零件查询（AP-655C） 194-8172: LINES GP-GREASE
广数供应链运营团队, 16 02月, 2025，浏览：
475 次

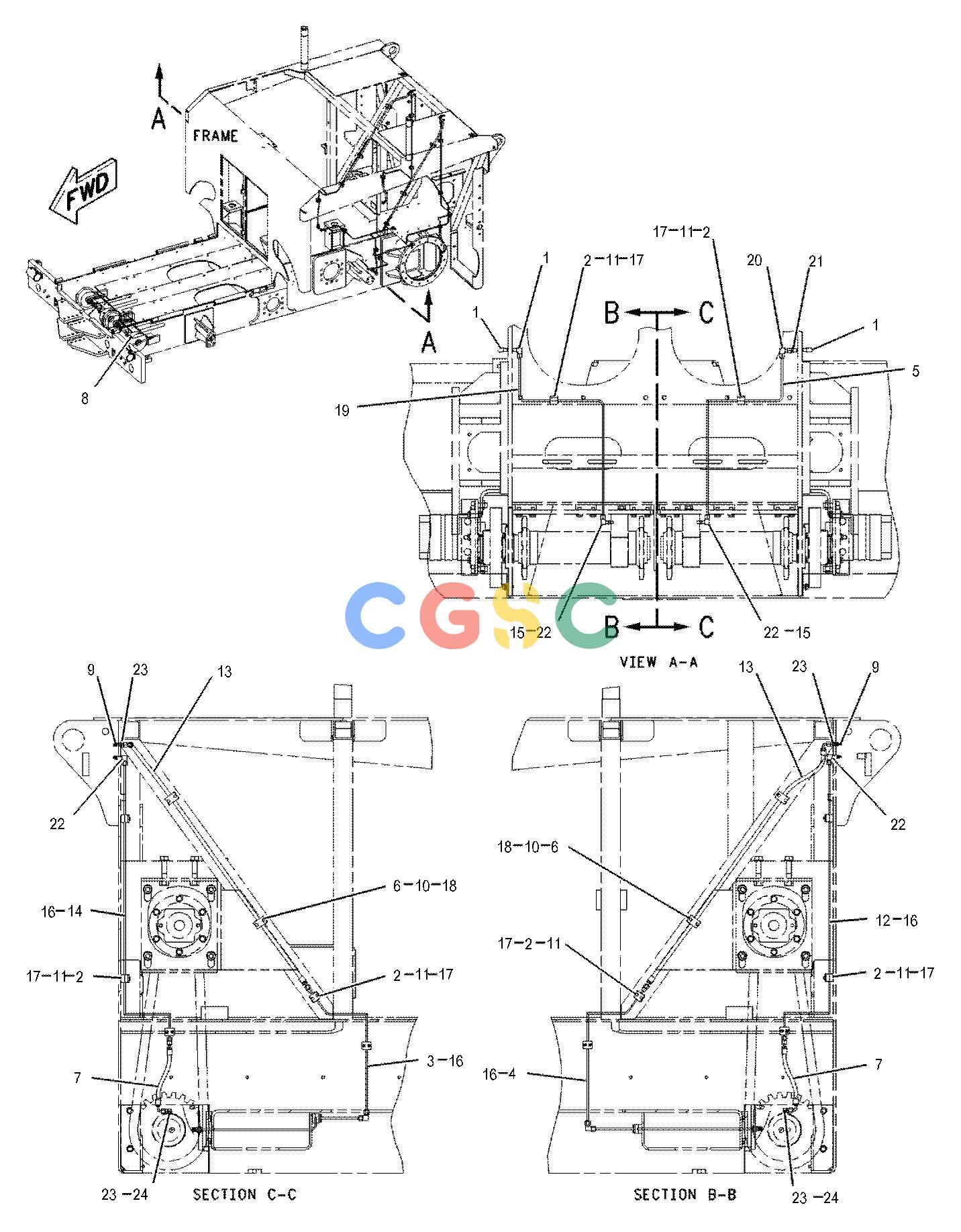

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 183-7258 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 7X-5331 | [1] | ELBOW | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 2. | 7R-6037 | [24] | CLAMP | |
| 3. | 198-3485 | [1] | TUBE AS | |
| 4. | 198-3486 | [1] | TUBE AS | |
| 5. | 198-3487 | [1] | TUBE AS | |
| 6. | 103-5676 | [8] | CLAMP-HALF | |
| 7. | 145-8289I | [2] | HOSE AS | |
| 8. | 3B-8488 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 9. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 10. | 7V-5628 | [4] | PLATE | |
| 11. | 7R-7950 | [12] | PLATE | |
| 12. | 198-3483 | [1] | TUBE AS | |
| 13. | 198-5380I | [2] | HOSE AS | |
| 14. | 198-3484 | [1] | TUBE AS | |
| 15. | 4K-3026 | [2] | EXTENSION(FITTING) | |
| 16. | 4J-5477 | [4] | SEAL-O-RING | |
| 17. | 8T-4971M | [24] | BOLT(M6X1X30-MM) | |
| 18. | 8C-8451M | [8] | BOLT(M6X1X40-MM) | |
| 19. | 198-3482 | [1] | TUBE AS | |
| 20. | 148-8351 | [1] | ELBOW AS | |
| | 6V-9849 | [1] | ELBOW | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 21. | 148-8337 | [1] | CONNECTOR AS | |
| | 8C-6866 | [1] | CONNECTOR | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 22. | 148-8389 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 7X-0492 | [1] | ELBOW | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 23. | 148-8320 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 8C-6865 | [1] | CONNECTOR | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 24. | 2D-1683 | [2] | FITTING(1/8-27 PTF) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
