卡特零件查询（AP-655C） 195-3181: ROLLER AR-PUSH
广数供应链运营团队, 16 02月, 2025，浏览：
190 次

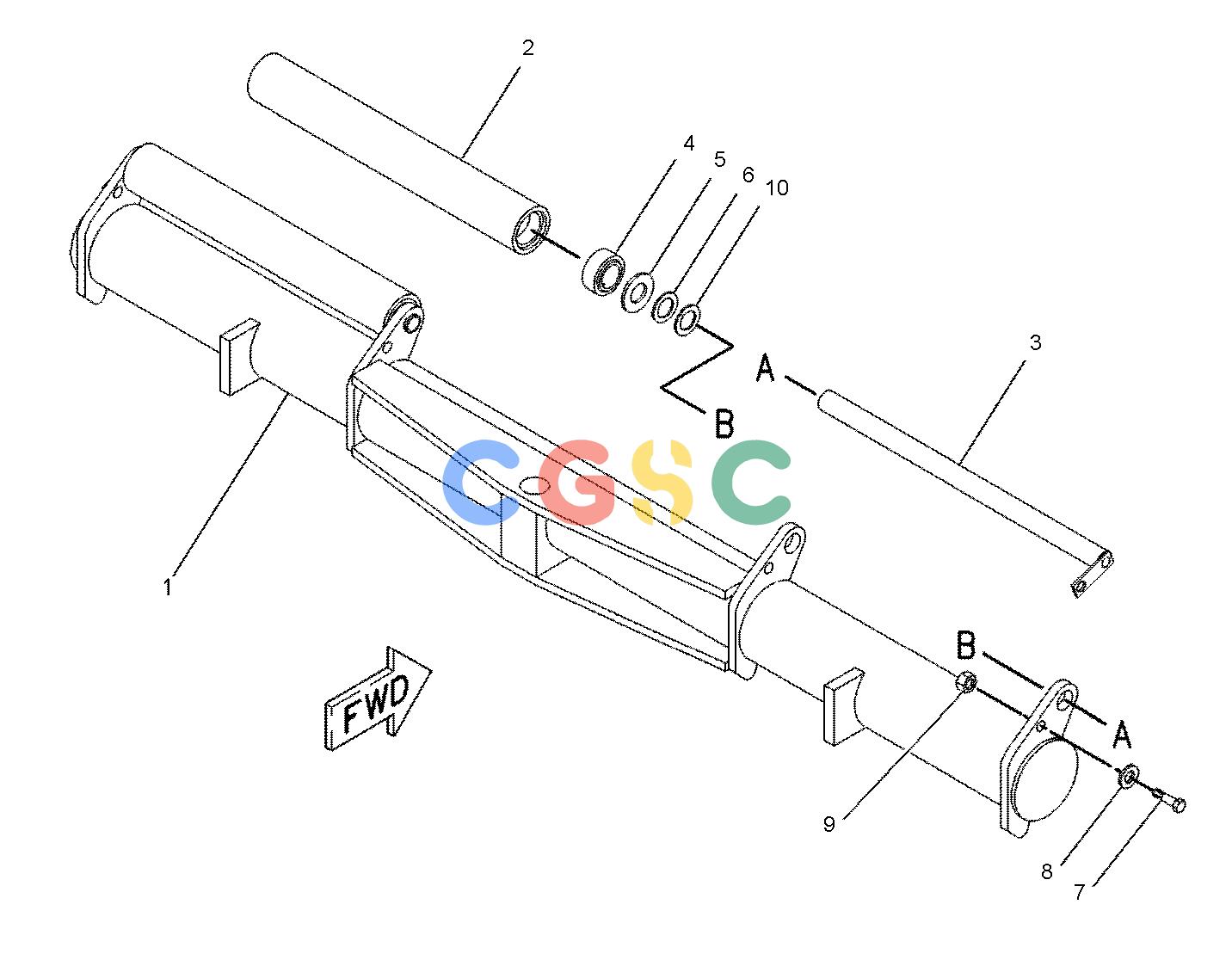

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 112-0896Y | [1] | ROLLER GP-PUSH | |
| 2. | 195-0408 | [1] | BAR | |
| 3. | 195-0409 | [1] | PIN AS | |
| 4. | 219-3007 | [2] | BAR | |
| 5. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 6. | 7X-2475M | [4] | BOLT(M16X2X130-MM) | |
| 7. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 8. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 9. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 10. | 8T-6430M | [4] | BOLT(M20X2.5X50-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
