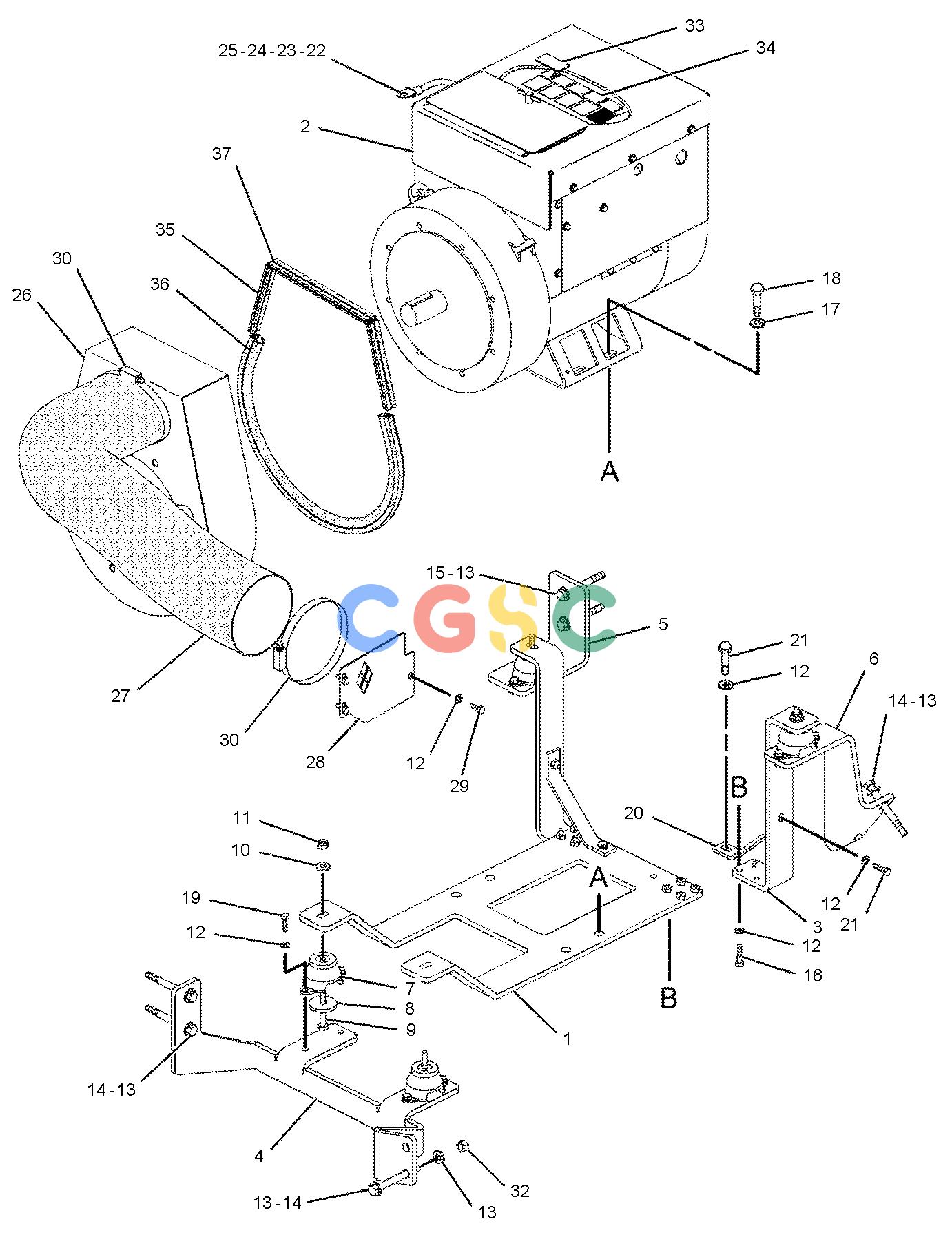

卡特零件查询（AP-655C） 241-5824: GENERATOR & MTG GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
780 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 241-5825 | [1] | PLATE AS | |
| 2. | 231-1332Y | [1] | GENERATOR GP(23-KW) | |
| 3. | 241-5830 | [2] | PLATE | |
| 4. | 241-5826 | [1] | PLATE AS | |
| 5. | 241-5828 | [1] | PLATE AS | |
| 6. | 241-5827 | [1] | PLATE AS | |
| 7. | 234-5253 | [4] | MOUNT AS | |
| 8. | 115-6433 | [4] | WASHER(11X50X6-MM THK) | |
| 9. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| 10. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 12. | 8T-4224 | [23] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-0646M | [6] | BOLT(M12X1.75X110-MM) | |
| 15. | 7X-2549M | [2] | BOLT(M12X1.75X100-MM) | |
| 16. | 7X-2537M | [8] | BOLT(M8X1.25X35-MM) | |
| 17. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 18. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 19. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 20. | 241-5829 | [2] | PLATE AS | |
| 21. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 22. | 8G-4090 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(58-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 23. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 24. | 8T-4138M | [1] | BOLT(M6X1X20-MM) | |
| 25. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 26. | 260-9616 | [1] | DUCT AS | |
| 27. | 242-1545 | [1] | HOSE-VENTILATION | |
| 28. | 259-3089 | [1] | SCREEN(FILTER) | |
| 29. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 30. | 124-6267 | [2] | CLAMP-HOSE | |
| 32. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 33. | 224-9828 | [1] | FILM-WARNING(SHOCK HAZARD) | |
| 34. | 247-4947 | [1] | FILM-INFORMATION(CIRCUIT BREAKER) | |
| 35. | 5P-7211D | | SEAL(0.17-M) | |
| 36. | 5P-7483D | | SEAL(0.87-M) | |
| 37. | 5P-7211D | | SEAL(0.24-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
