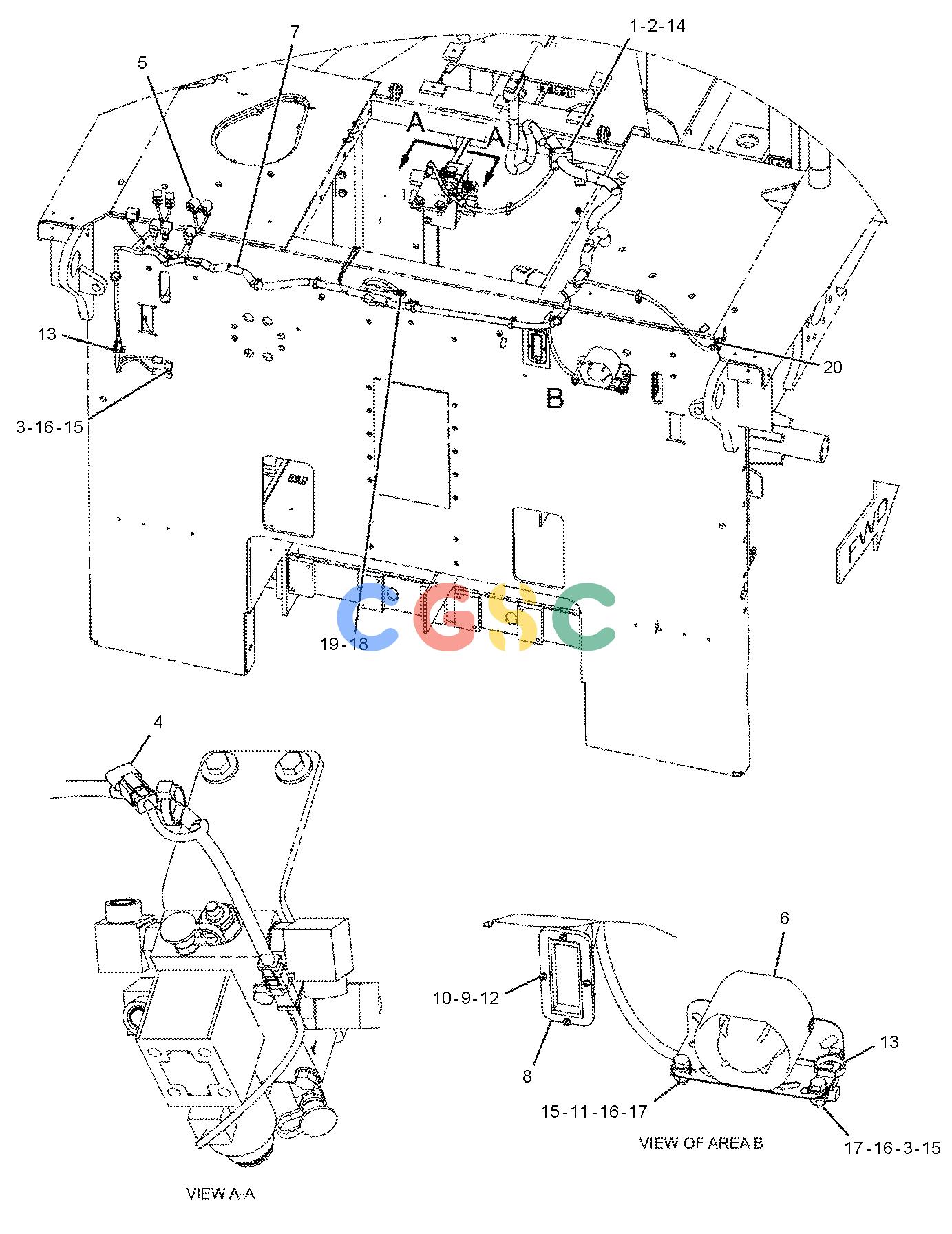

卡特零件查询（AP-655C） 246-7025: WIRING GP-HYDRAULIC CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
421 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7940 | [2] | CLAMP | |
| 2. | 7R-7951 | [1] | PLATE | |
| 3. | 116-0118 | [3] | CLIP | |
| 4. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 5. | 203-6605 | [8] | SEAL | |
| 6. | 220-0230 | [1] | ALARM AS(BACKUP) | |
| 7. | 246-7024 | [1] | HARNESS AS-REAR(CONTROL VALVE) | |
| | 8T-8737 | [38] | PLUG-SEAL | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 103-0213 | [1] | RECEPTACLE AS-CONNECTOR(70-PIN) | |
| | 155-2270 | [5] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EASH PLUG KIT INCULDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 8. | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| 9. | 3B-4501 | [4] | LOCKWASHER | |
| 10. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 11. | 6V-3265 | [1] | CLIP(SLOT) | |
| 12. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 13. | 7K-1181 | [15] | STRAP-CABLE | |
| 14. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 15. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 17. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 18. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 20. | 9D-8508 | [1] | GROMMET | |
| | M | | METRIC PART |
