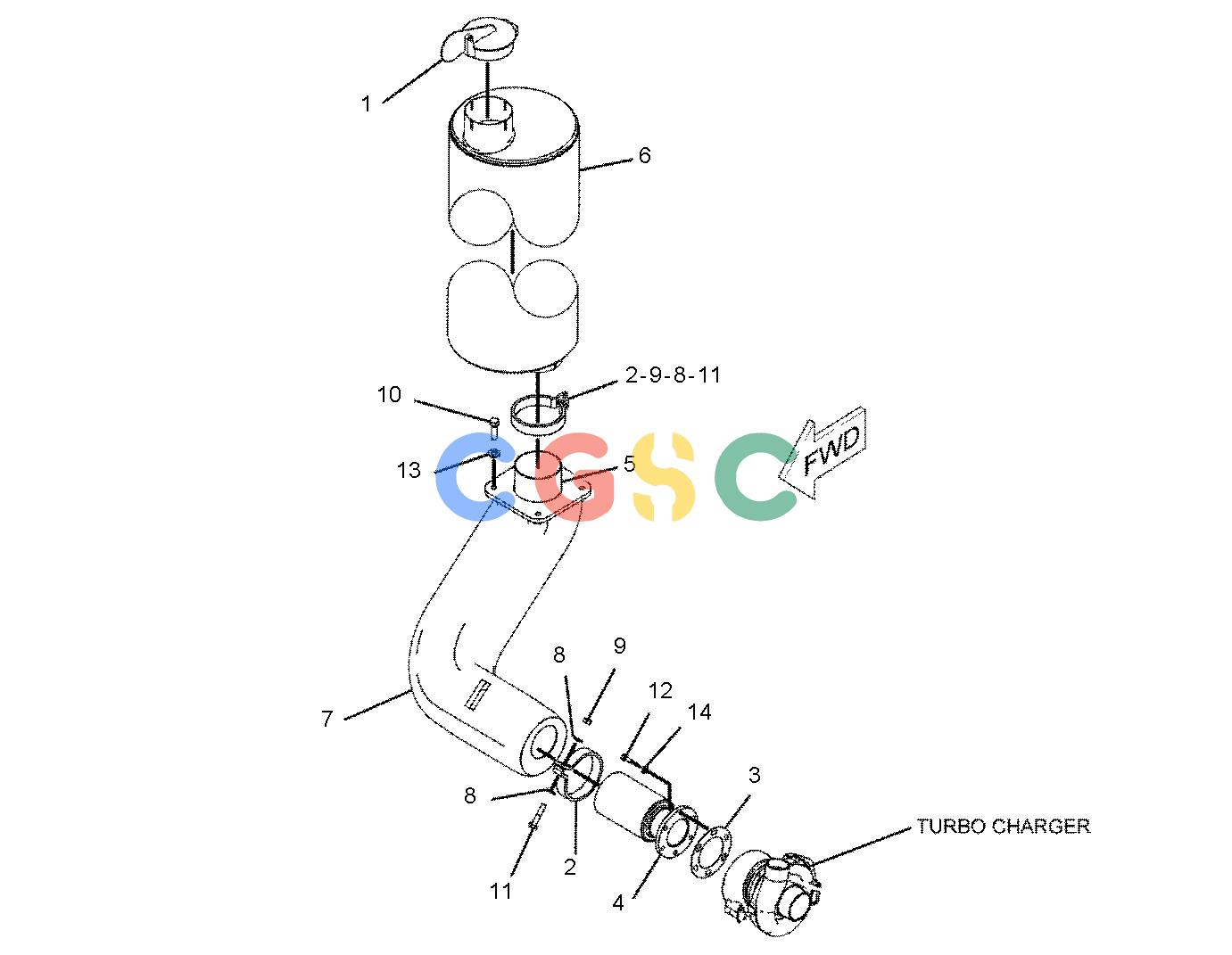

卡特零件查询（AP-655C） 244-6591: EXHAUST GP
广数供应链运营团队, 16 02月, 2025，浏览：
736 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7S-4994 | [1] | CAP AS-RAIN(EXHAUST)(EXHAUST PIPE) | |
| 2. | 134-3203 | [2] | CLAMP-MUFFLER | |
| 3. | 141-8597 | [1] | GASKET | |
| 4. | 196-2340 | [1] | ADAPTER | |
| 5. | 244-3162 | [1] | TUBE AS-EXHAUST | |
| 6. | 244-6593 | [1] | MUFFLER | |
| 7. | 244-6595 | [1] | INSULATION | |
| 8. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 10. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 11. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 12. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 13. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
