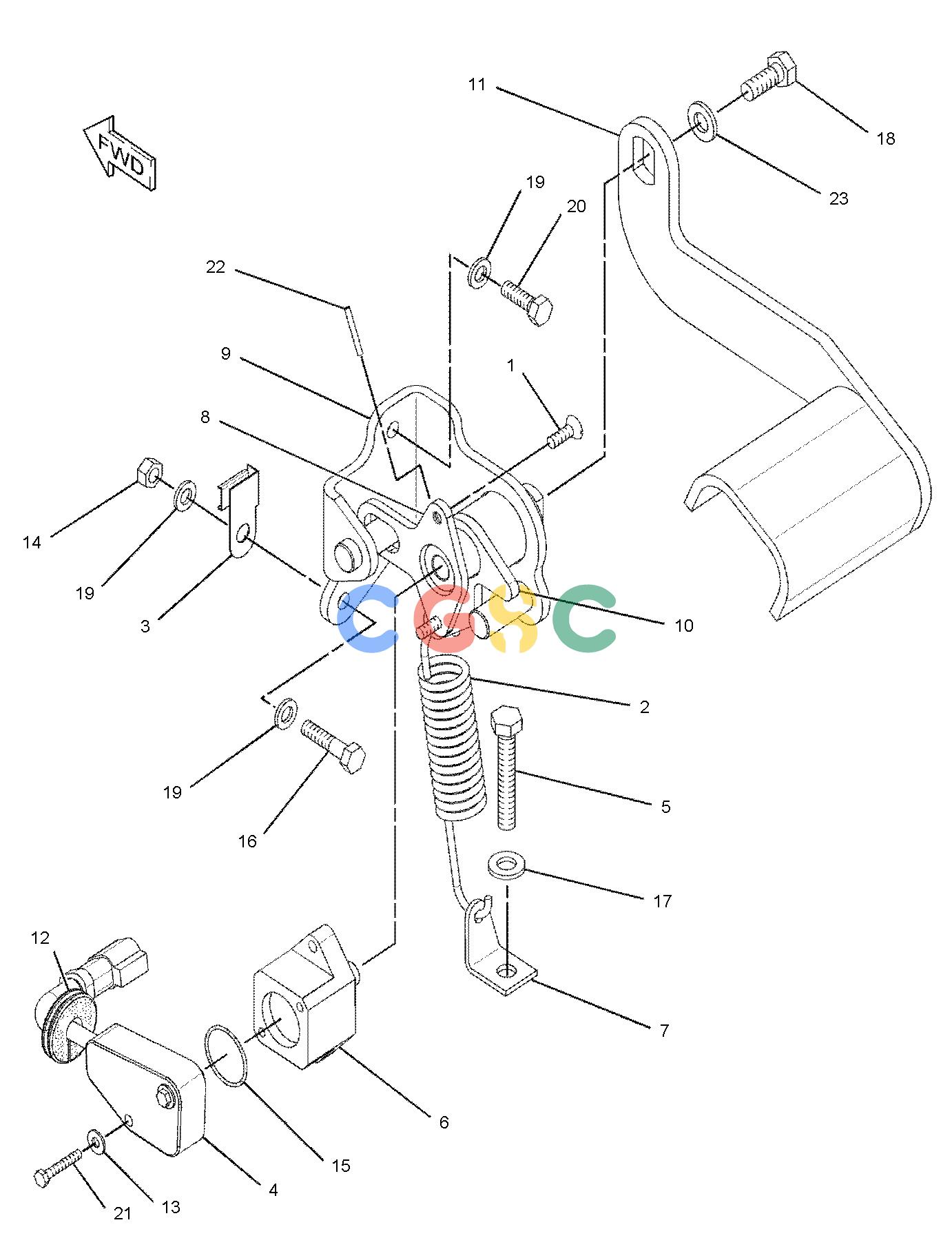

卡特零件查询（AP-655C） 233-5034: CONTROL GP-DECELERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
598 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-1282 | [4] | SCREW-MACHINE(1/4-20X0.75-IN) | |
| 2. | 090-8612 | [2] | SPRING | |
| 3. | 116-0118 | [2] | CLIP | |
| 4. | 160-2443Y | [2] | SENSOR GP-POSITION(ROTARY)(BRAKE PEDAL) | |
| 5. | 160-8743M | [2] | BOLT(M10X1.5X60-MM) | |
| 6. | 166-0691 | [2] | BLOCK AS-MOUNTING(POSITION SENSOR) | |
| 7. | 203-9144 | [2] | TAB | |
| 8. | 203-9149 | [2] | PLATE | |
| 9. | 203-9152 | [2] | SUPPORT AS | |
| 10. | 203-9153 | [2] | SHAFT AS | |
| 11. | 203-9154 | [2] | PEDAL AS | |
| 12. | 162-9112 | [2] | GROMMET-SPLIT | |
| 13. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 14. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 15. | 6V-0894 | [2] | SEAL-O-RING | |
| 16. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 17. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 19. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 21. | 8T-7368M | [4] | SCREW-MACHINE(10-32X28.58-MM) | |
| 22. | 8T-7566 | [2] | PIN-SPRING | |
| 23. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
