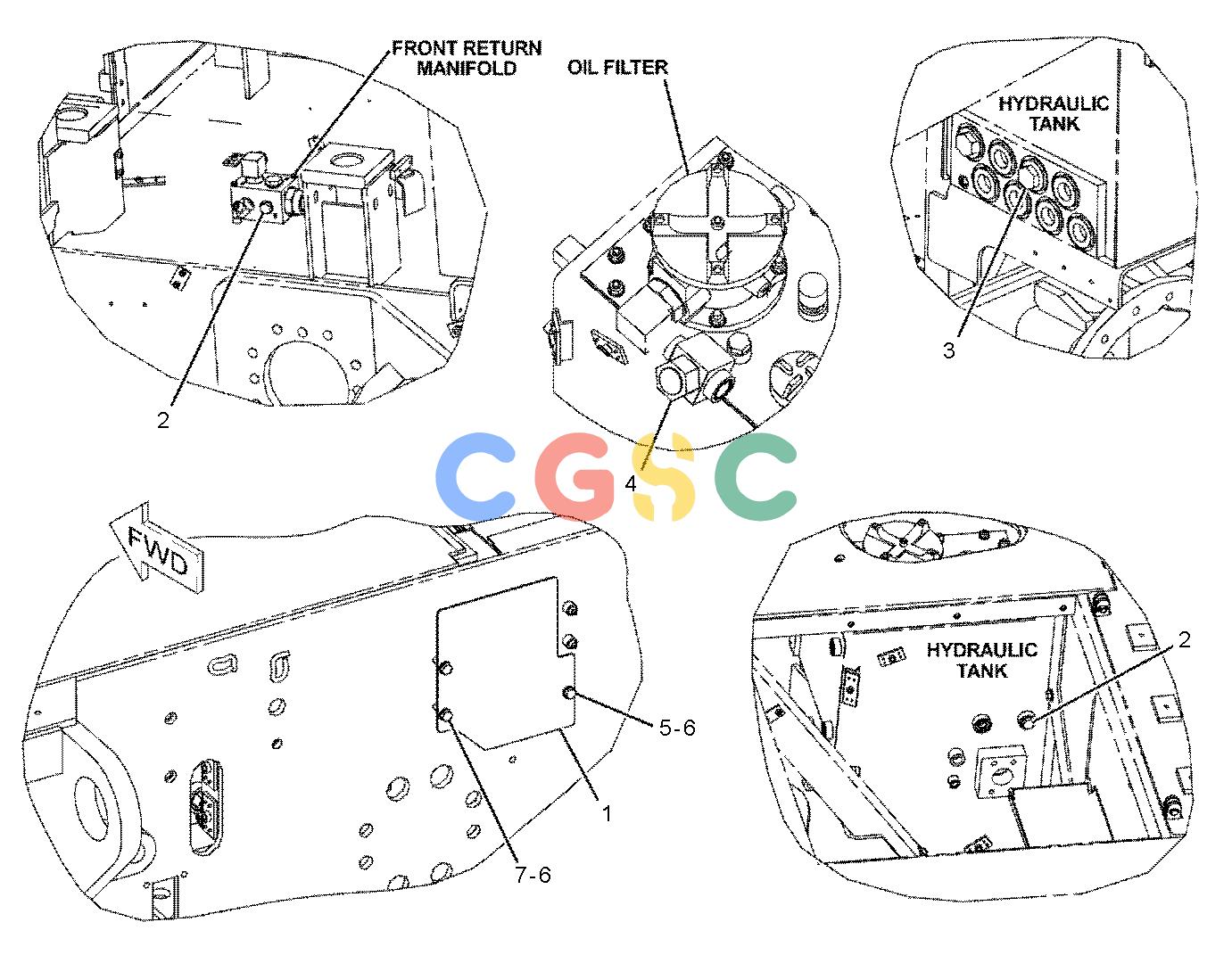

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 247-1335 | [1] | PLATE | |
| 2. | 148-8411 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 9S-4185 | [1] | PLUG(3/4-16-THD) | ||
| 3. | 164-5616 | [1] | PLUG AS | |
| 2S-4078 | [1] | SEAL-O-RING | ||
| 9S-6130 | [1] | PLUG | ||
| 4. | 6V-9834 | [1] | CAP AS | |
| 5. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 6. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
