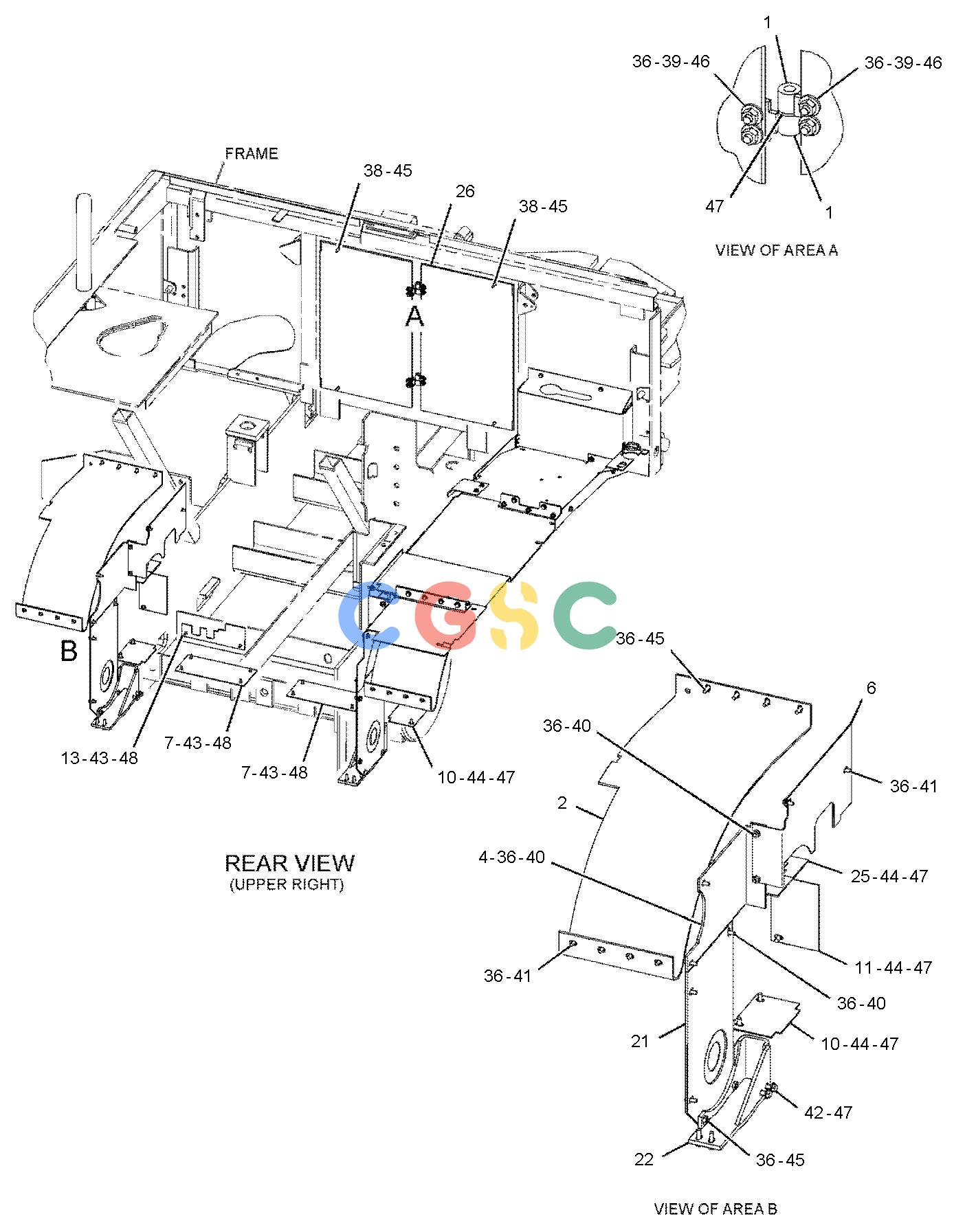

卡特零件查询（AP-655C） 255-2734: COVER GP-PAVER VENTILATION
广数供应链运营团队, 16 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-3630 | [4] | HINGE AS | |
| 2. | 194-2935 | [1] | FENDER(LH) | |
| 3. | 199-2748 | [1] | PLATE(RH) | |
| 4. | 199-2749 | [1] | PLATE(LH) | |
| 5. | 199-3235 | [1] | PLATE AS(RH) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 6. | 199-3236 | [1] | PLATE AS(LH) | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 200-5904 | [2] | PLATE | |
| 8. | 204-7888 | [1] | ANGLE | |
| 9. | 205-1163 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 10. | 205-3092 | [2] | COVER | |
| 11. | 205-3093 | [1] | COVER | |
| 12. | 205-3095 | [1] | COVER | |
| 13. | 205-5379 | [1] | COVER | |
| 14. | 219-4600 | [1] | FLASHING | |
| 15. | 219-4601 | [1] | FLASHING | |
| 16. | 219-4602 | [1] | FLASHING | |
| 17. | 219-4603 | [1] | FLASHING | |
| 18. | 219-4604 | [1] | FLASHING | |
| 19. | 219-4605 | [1] | FLASHING | |
| 20. | 228-6324 | [1] | PLATE AS | |
| 21. | 228-8844 | [1] | PLATE AS | |
| 22. | 228-8845 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 23. | 228-8847 | [1] | PLATE AS | |
| 24. | 228-9635 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 25. | 236-5029 | [2] | COVER | |
| 26. | 254-7333 | [2] | PLATE | |
| 27. | 257-4339 | [1] | FENDER | |
| 28. | 257-4365 | [1] | FENDER | |
| 29. | 257-4367 | [1] | FLASHING | |
| 30. | 273-0232 | [1] | FENDER AS | |
| 31. | 273-9922 | [1] | PLATE | |
| 32. | 286-9438 | [2] | PLATE | |
| 33. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 34. | 5P-4116 | [14] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 7K-1181 | [1] | STRAP-CABLE | |
| 36. | 7X-7729 | [88] | WASHER(11X25X3-MM THK) | |
| 37. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| 38. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 39. | 8T-4133M | [19] | NUT(M10X1.5-THD) | |
| 40. | 8T-4136M | [25] | BOLT(M10X1.5X25-MM) | |
| 41. | 8T-4137M | [14] | BOLT(M10X1.5X20-MM) | |
| 42. | 8T-4183M | [8] | BOLT(M12X1.75X40-MM) | |
| 43. | 8T-4189M | [22] | BOLT(M8X1.25X20-MM) | |
| 44. | 8T-4192M | [12] | BOLT(M12X1.75X25-MM) | |
| 45. | 8T-4195M | [22] | BOLT(M10X1.5X30-MM) | |
| 46. | 8T-4196M | [10] | BOLT(M10X1.5X35-MM) | |
| 47. | 8T-4223 | [22] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
