卡特零件查询（AP-655C） 241-8823: VALVE & MTG GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
671 次

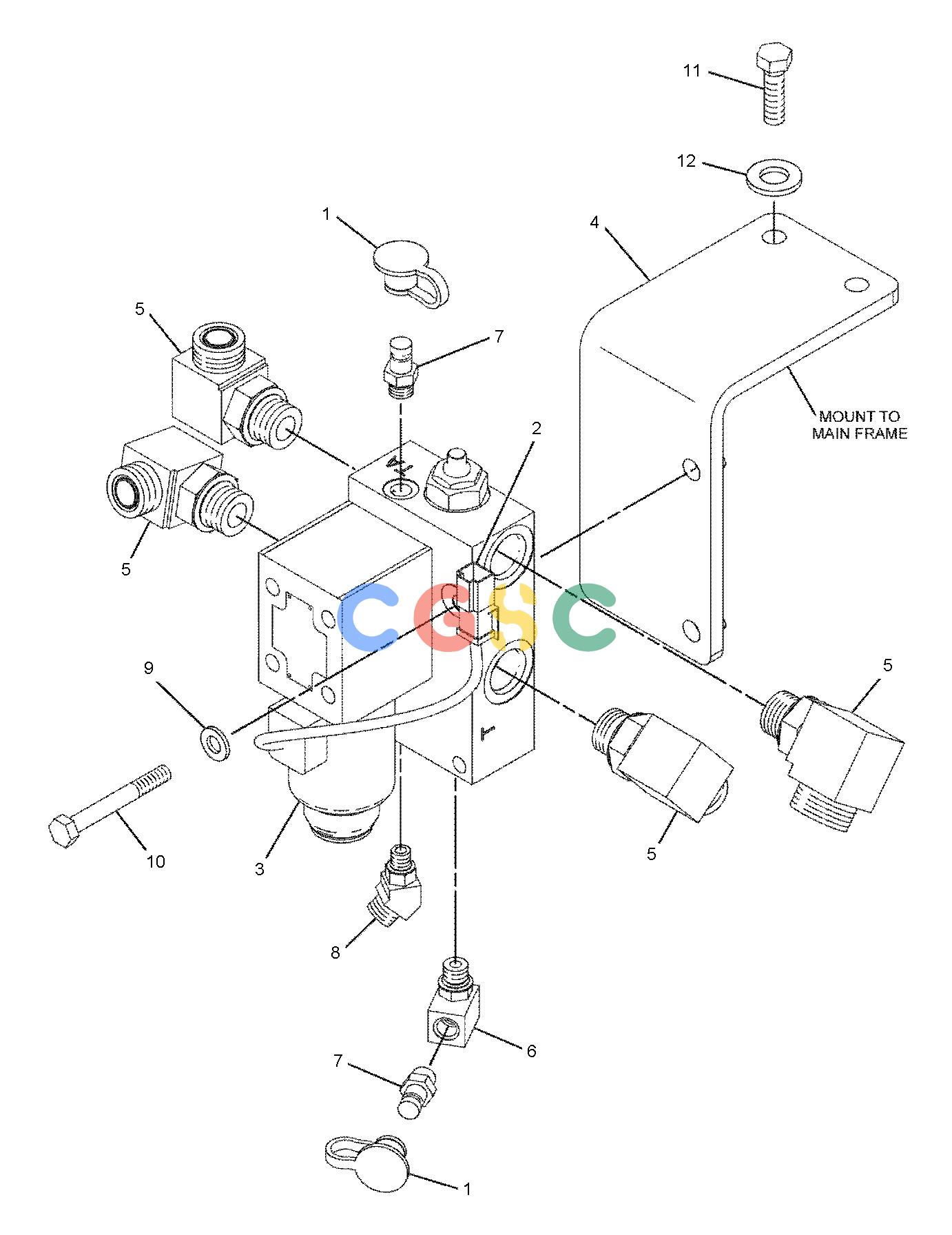

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 116-0118 | [1] | CLIP | |
| 3. | 227-5105Y | [1] | VALVE GP-CONTROL(GENERATOR) | |
| 4. | 244-1421 | [1] | BRACKET AS | |
| 5. | 148-8347 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 150-3065 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 7. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT)(GENERATOR SYSTEM PRESSURE) | |
| 8. | 164-7908 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-7546 | [1] | ELBOW | |
| 9. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 11. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
