卡特零件查询（AP-655D） 276-4584: LINES GP-VIBRATORY
广数供应链运营团队, 16 02月, 2025，浏览：
687 次

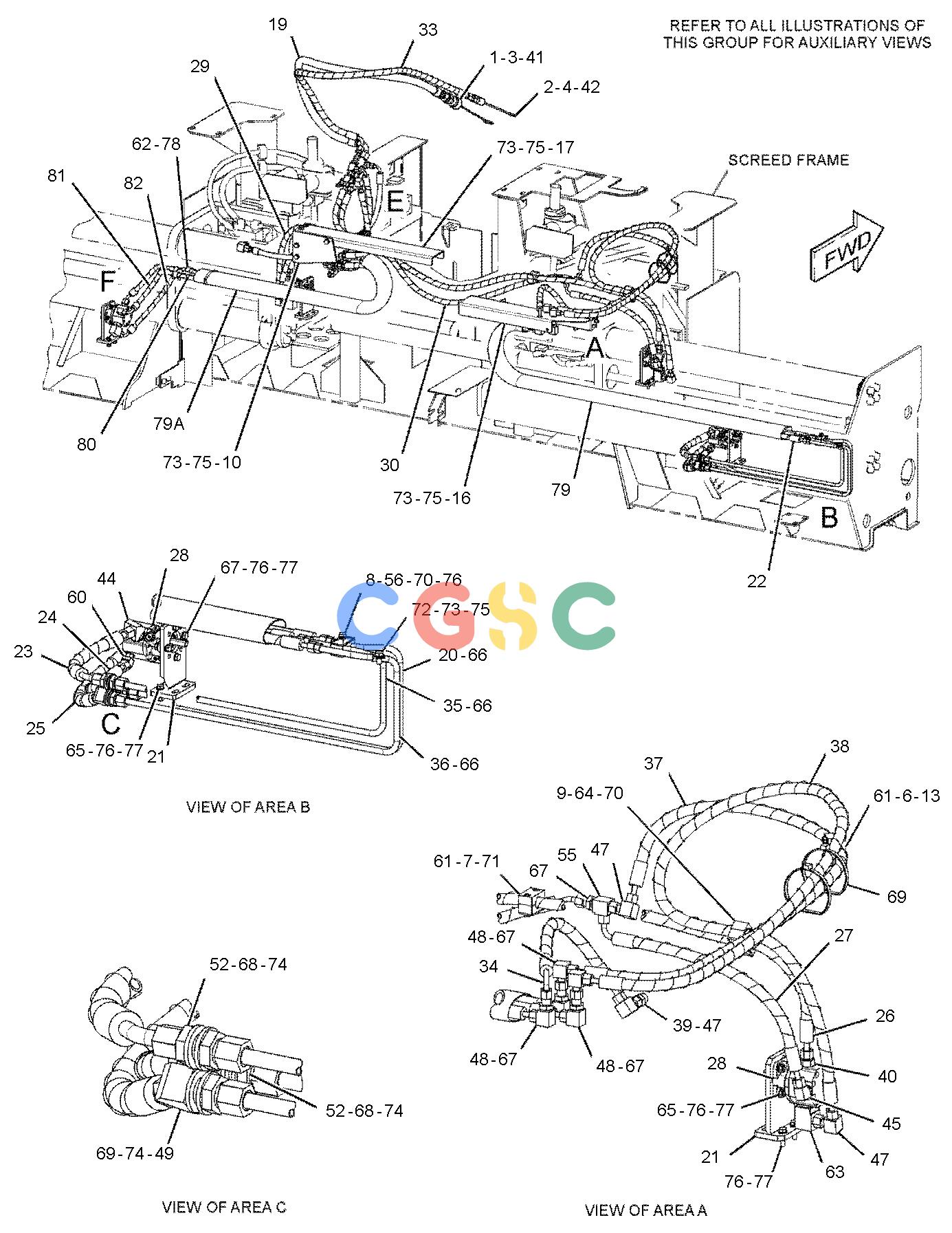

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5718 | [1] | PLUG-DUST | |
| 2. | 161-2560C | [1] | CAP-DUST | |
| 3. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | | [1] | RETAINER |
| 4. | 153-2996C | [1] | FITTING AS(QUICK DISCONNECT, MALE) | |
| 5. | 6V-0852 | [1] | CAP-DUST | |
| 6. | 7R-7954 | [1] | PLATE | |
| 7. | 7V-5628 | [1] | PLATE(TOP) | |
| 8. | 102-8703 | [1] | PLATE-COVER | |
| 9. | 102-8705 | [3] | PLATE(TOP) | |
| 10. | 106-6322 | [1] | SUPPORT AS | |
| 11. | 110-8760 | [1] | STRAP | |
| 12. | 164-5586 | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7X-0871 | [1] | TEE | |
| 13. | 196-4205M | [2] | BOLT-STACKING(M6X1X44-MM) | |
| 14. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 15. | 206-0452 | [1] | PLATE | |
| 16. | 279-6481 | [1] | PLATE AS | |
| 17. | 279-6483 | [1] | PLATE AS | |
| 18. | 283-0030I | [1] | HOSE AS | |
| 19. | 283-7732I | [1] | HOSE AS | |
| 20. | 307-8433 | [1] | TUBE AS | |
| 21. | 308-0468 | [4] | MOUNT AS | |
| 22. | 308-0902I | [3] | HOSE AS | |
| 23. | 308-0919I | [1] | HOSE AS | |
| 24. | 308-1404I | [1] | HOSE AS | |
| 25. | 308-1514I | [1] | HOSE AS | |
| 26. | 308-1516I | [1] | HOSE AS | |
| 27. | 308-2019I | [1] | HOSE AS | |
| 28. | 308-2125Y | [4] | MOTOR GP-GEAR(VIBRATORY) | |
| 29. | 308-3027I | [1] | HOSE AS | |
| 30. | 308-3530I | [1] | HOSE AS | |
| 31. | 308-4312I | [1] | HOSE AS | |
| 32. | 308-4355I | [2] | HOSE AS | |
| 33. | 308-6017I | [1] | HOSE AS | |
| 34. | 308-7136I | [1] | HOSE AS | |
| 35. | 310-1011 | [1] | TUBE AS | |
| 36. | 310-1012 | [1] | TUBE AS | |
| 37. | 313-1498I | [1] | HOSE AS | |
| 38. | 313-1499I | [1] | HOSE AS | |
| 39. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 40. | 148-8319 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8715 | [1] | CONNECTOR | |
| 41. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 42. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 43. | 148-8345 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 44. | 148-8358 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8624 | [1] | ELBOW | |
| 45. | 148-8361 | [3] | ELBOW AS(90-DEG) | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 46. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 47. | 148-8367 | [7] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 48. | 148-8377 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 49. | 148-8380 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8988 | [1] | ELBOW | |
| 50. | 148-8415 | [2] | REDUCER AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8936 | [1] | REDUCER | |
| 51. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 52. | 148-8457 | [3] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 53. | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 54. | 153-6245 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 136-6811 | [1] | ELBOW | |
| 55. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 56. | 154-4879 | [2] | CLAMP-HALF | |
| 57. | 155-3502 | [1] | ADAPTER AS | |
| | 3E-7403 | [1] | ADAPTER | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 58. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 59. | 164-5580 | [1] | TEE AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9489 | [1] | TEE-BULKHEAD | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 60. | 164-7908 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-7546 | [1] | ELBOW | |
| 61. | 1G-9959 | [4] | CLAMP | |
| 62. | 1S-0994 | [3] | CLIP(LOOP) | |
| 63. | 205-3692 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 64. | 206-6411 | [8] | CLAMP-HALF | |
| 65. | 5C-7261M | [20] | NUT(M8X1.25-THD) | |
| 66. | 6V-8397 | [3] | SEAL-O-RING | |
| 67. | 6V-9168 | [7] | NUT(11/16-16-THD) | |
| 68. | 6V-9169 | [6] | NUT(13/16-16-THD) | |
| 69. | 7K-1181 | [2] | STRAP-CABLE | |
| 70. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 71. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 72. | 8M-2770 | [1] | CLIP(LOOP) | |
| 73. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 74. | 8T-4123 | [9] | WASHER(3.62X5.75X0.375-MM THK) | |
| 75. | 8T-4137M | [10] | BOLT(M10X1.5X20-MM) | |
| 76. | 8T-4224 | [45] | WASHER-HARD(8.8X16X2-MM THK) | |
| 77. | 8T-7547M | [24] | BOLT(M8X1.25X30-MM) | |
| 78. | 9X-2041M | [3] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 79. | 160-2251G | | SLEEVE-ABRASION(43.7-IN) | |
| 79A. | 160-2251G | | SLEEVE-ABRASION(67-IN) | |
| 80. | 370-4661I | [1] | HOSE AS | |
| 81. | 370-4662I | [1] | HOSE AS | |
| 82. | 370-4663I | [1] | HOSE AS | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
