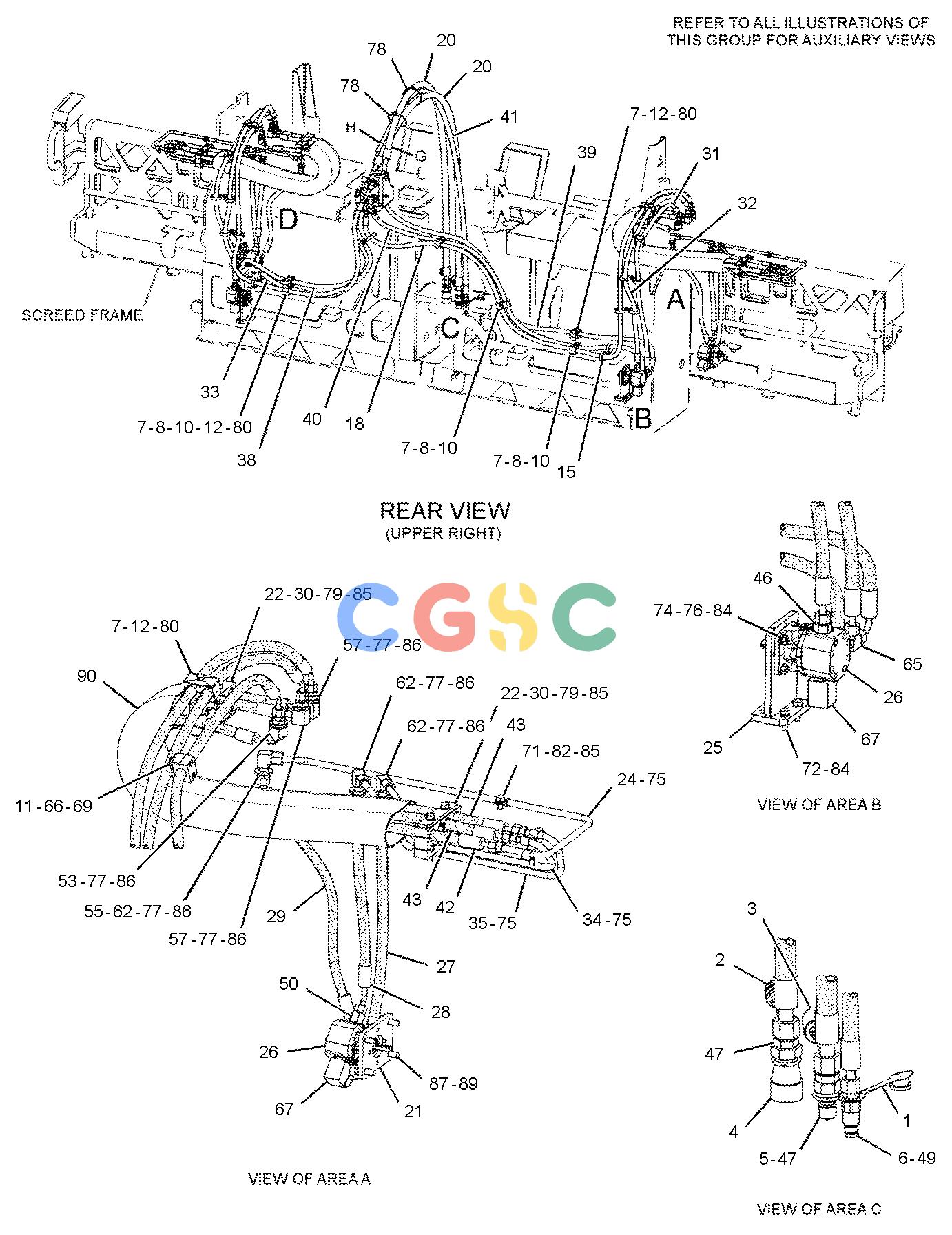

卡特零件查询（AP-655D） 295-3083: LINES GP-VIBRATORY_卡特彼勒Caterpillar_工程机械

Pos.	Part No	Qty	Parts name
1.	161-2560C	[1]	CAP-DUST
2.	5R-5718	[1]	PLUG-DUST
3.	5R-5719	[1]	CAP-DUST
4.	5R-6304	[1]	COUPLER AS-QUICK DISCONNECT(FEMALE)
	3S-9233	[1]	SEAL-O-RING
		[1]	RETAINER
5.	5R-6305	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
6.	153-2996C	[1]	FITTING AS(QUICK DISCONNECT, MALE)
7.	6R-1317	[16]	CLAMP
8.	6R-3319	[4]	BOLT-SPECIAL(5/16-18-THD)
9.	6V-0852	[1]	CAP-DUST
10.	7R-7964	[4]	PLATE
11.	7V-5628	[2]	PLATE(TOP)
12.	102-8705	[4]	PLATE(TOP)
13.	107-0003	[1]	MANIFOLD
14.	148-8424	[1]	TEE AS
	6V-8397	[1]	SEAL-O-RING
	8T-8902	[1]	ADAPTER-TEE
15.	177-2215	[7]	STRAP-DUAL CLAMP
16.	183-3403	[3]	ELBOW AS
			(EACH INCLUDES)
	6V-5049	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
	8L-2779	[1]	SEAL-O-RING
17.	197-5273	[1]	VALVE GP-FLOW DIVIDER(VIBRATORY)
18.	197-9794I	[1]	HOSE AS
19.	197-9796I	[1]	HOSE AS
20.	197-9802I	[2]	HOSE AS
21.	276-9552	[2]	PLATE
22.	289-8491	[4]	PLATE
23.	294-8644	[1]	BRACKET
24.	307-8413	[2]	TUBE AS
25.	308-0468	[2]	MOUNT AS
26.	308-2125Y	[4]	MOTOR GP-GEAR(VIBRATORY)
27.	308-2479I	[2]	HOSE AS
28.	308-2481I	[2]	HOSE AS
29.	308-2482I	[2]	HOSE AS
30.	308-5823	[4]	CLAMP AS
31.	308-6735I	[2]	HOSE AS
32.	308-8560I	[2]	HOSE AS
33.	308-9989I	[1]	HOSE AS
34.	309-0932	[1]	TUBE AS
35.	309-0934	[1]	TUBE AS
36.	309-1584	[1]	TUBE AS
37.	309-1616	[1]	TUBE AS
38.	309-4259I	[1]	HOSE AS
39.	309-4422I	[1]	HOSE AS
40.	309-8686I	[1]	HOSE AS
41.	309-8759I	[1]	HOSE AS
42.	319-9597I	[2]	HOSE AS
43.	319-9598I	[4]	HOSE AS
44.	148-8309	[3]	ADAPTER AS
			(EACH INCLUDES)
	2P-8421	[1]	ADAPTER-O-RING
	3D-2824	[1]	SEAL-O-RING
45.	148-8318	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
46.	148-8319	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8715	[1]	CONNECTOR
47.	148-8327	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
48.	148-8339	[1]	CONNECTOR AS
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
49.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
50.	148-8343	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	9X-6550	[1]	CONNECTOR
51.	148-8360	[1]	ELBOW AS
	6V-9182	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
52.	148-8361	[2]	ELBOW AS(90-DEG)
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8200M	[1]	BOLT-SOCKET HEAD(M12X1.75X35-MM)
53.	148-8366	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8987	[1]	ELBOW
54.	148-8367	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	6V-9850	[1]	ELBOW
55.	148-8371	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
56.	148-8374	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8723	[1]	ELBOW
57.	148-8377	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[2]	SEAL-O-RING
	6V-8980	[1]	ELBOW
58.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
59.	148-8411	[2]	PLUG AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
60.	153-6246	[1]	TEE AS
	6V-8397	[3]	SEAL-O-RING
	7X-0820	[1]	TEE
61.	155-3502	[1]	ADAPTER AS
	3E-7403	[1]	ADAPTER
	6V-8398	[1]	SEAL-O-RING
62.	162-3052	[6]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-0130	[1]	ELBOW
63.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	214-7568	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
64.	164-5616	[1]	PLUG AS
	2S-4078	[1]	SEAL-O-RING
	9S-6130	[1]	PLUG
65.	173-7225	[2]	TEE AS
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-9161	[1]	TEE
66.	1G-9959	[4]	CLAMP
67.	205-3692	[4]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	9X-2134	[1]	ELBOW
68.	4L-6454	[6]	BOLT(3/8-16X1-IN)
69.	4M-5282	[4]	BOLT(1/4-20X1.5-IN)
70.	5K-0906	[8]	BOLT(5/16-18X0.625-IN)
71.	5M-3062	[2]	BOLT(3/8-16X0.75-IN)
72.	6V-5782	[4]	BOLT(5/16-18X1.125-IN)
73.	6V-8185	[2]	NUT(1/4-20-THD)
74.	6V-8189	[8]	NUT(5/16-18-THD)
75.	6V-8397	[6]	SEAL-O-RING
76.	6V-8918	[8]	BOLT(5/16-18X1.25-IN)
77.	6V-9168	[13]	NUT(11/16-16-THD)
78.	7K-1181	[2]	STRAP-CABLE
79.	7X-0291	[8]	BOLT(3/8-16X3.75-IN)
80.	7X-0440	[4]	BOLT(5/16-18X1.75-IN)
81.	8C-3793	[2]	BOLT(1/4-20X3.75-IN)
82.	8M-2770	[8]	CLIP(LOOP)
83.	8T-4205	[4]	WASHER-HARD(7.2X14.5X2-MM THK)
84.	8T-4224	[28]	WASHER-HARD(8.8X16X2-MM THK)
85.	8T-4896	[18]	WASHER-HARD(10.2X18.5X2.5-MM THK)
86.	8T-4994	[13]	WASHER-HARD(20X36.5X3.5-MM THK)
87.	8T-5360	[8]	WASHER(12X22.5X2.5-MM THK)
88.	8T-7008	[2]	BOLT(3/8-16X3-IN)
89.	8T-9382	[8]	BOLT(7/16-14X1.25-IN)
90.	160-2252G		SLEEVE-ABRASION(30-IN EACH)
	C		CHANGE FROM PREVIOUS TYPE
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
