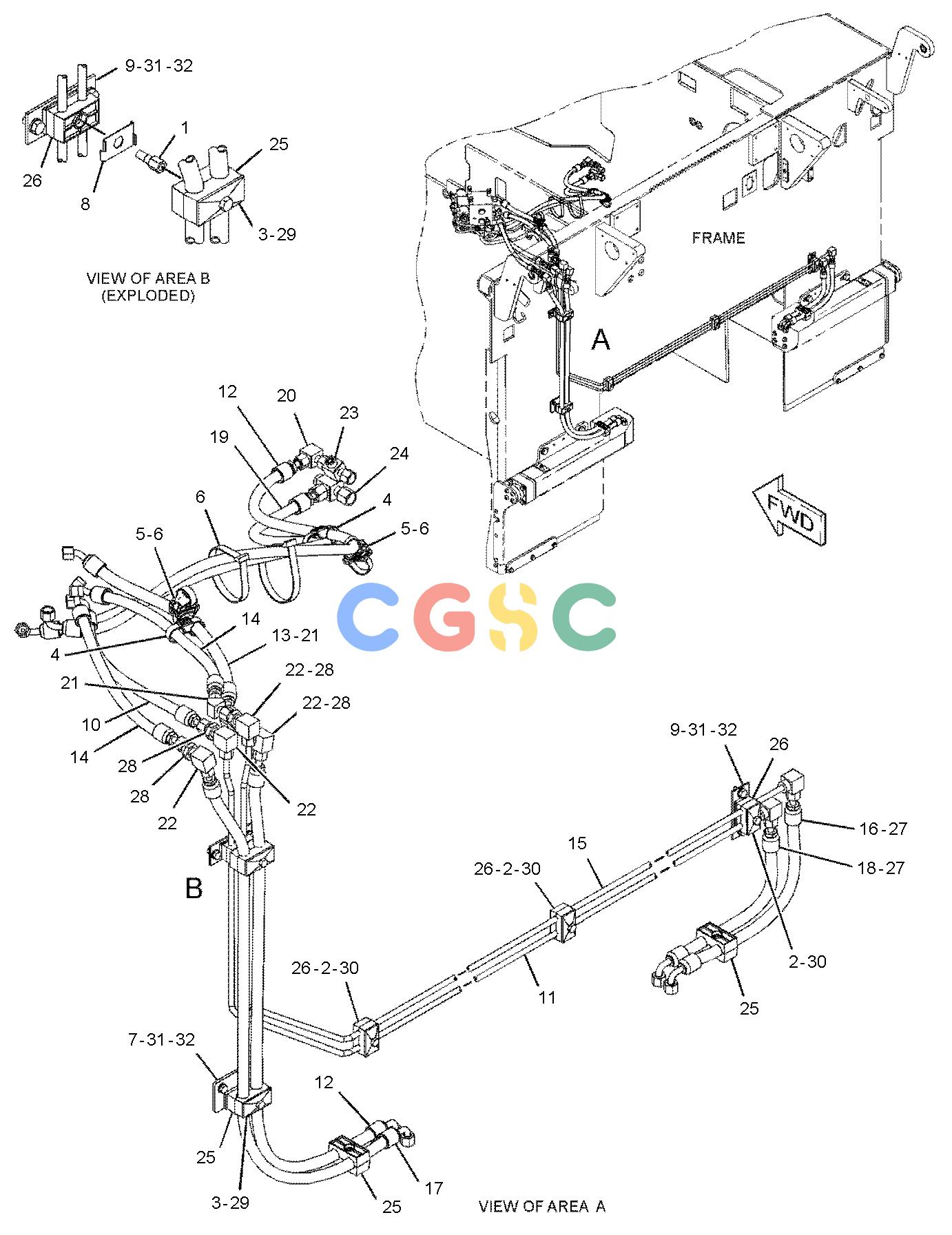

卡特零件查询（AP-655D） 417-7849: LINES GP-EXTENDER
广数供应链运营团队, 16 02月, 2025，浏览：
736 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 154-4890M | [1] | BOLT-STACKING(M8X1.25X33-MM) | |
| 2. | 102-8703 | [3] | PLATE-COVER | |
| 3. | 102-8705 | [2] | PLATE(TOP) | |
| 4. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 5. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 6. | 204-2281 | [6] | STRAP-CABLE | |
| 7. | 204-4990 | [1] | PLATE AS | |
| 8. | 206-0452 | [1] | PLATE | |
| 9. | 244-1310 | [2] | PLATE AS | |
| 10. | 271-4236I | [1] | HOSE AS | |
| 11. | 324-6705 | [1] | TUBE AS | |
| 12. | 336-0088I | [2] | HOSE AS | |
| 13. | 344-6115I | [1] | HOSE AS | |
| 14. | 346-6403I | [2] | HOSE AS | |
| 15. | 349-3569 | [1] | TUBE AS | |
| 16. | 349-4293I | [1] | HOSE AS | |
| 17. | 349-4294I | [1] | HOSE AS | |
| 18. | 349-4304I | [1] | HOSE AS | |
| 19. | 392-2636I | [1] | HOSE AS | |
| 20. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 21. | 148-8371 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 22. | 148-8377 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 23. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 24. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 25. | 4V-0611 | [8] | CLAMP | |
| 26. | 206-6409 | [8] | CLAMP-HALF | |
| 27. | 6V-8397 | [2] | SEAL-O-RING | |
| 28. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 29. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 30. | 7X-2537M | [3] | BOLT(M8X1.25X35-MM) | |
| 31. | 8T-4200M | [6] | BOLT(M8X1.25X16-MM) | |
| 32. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
