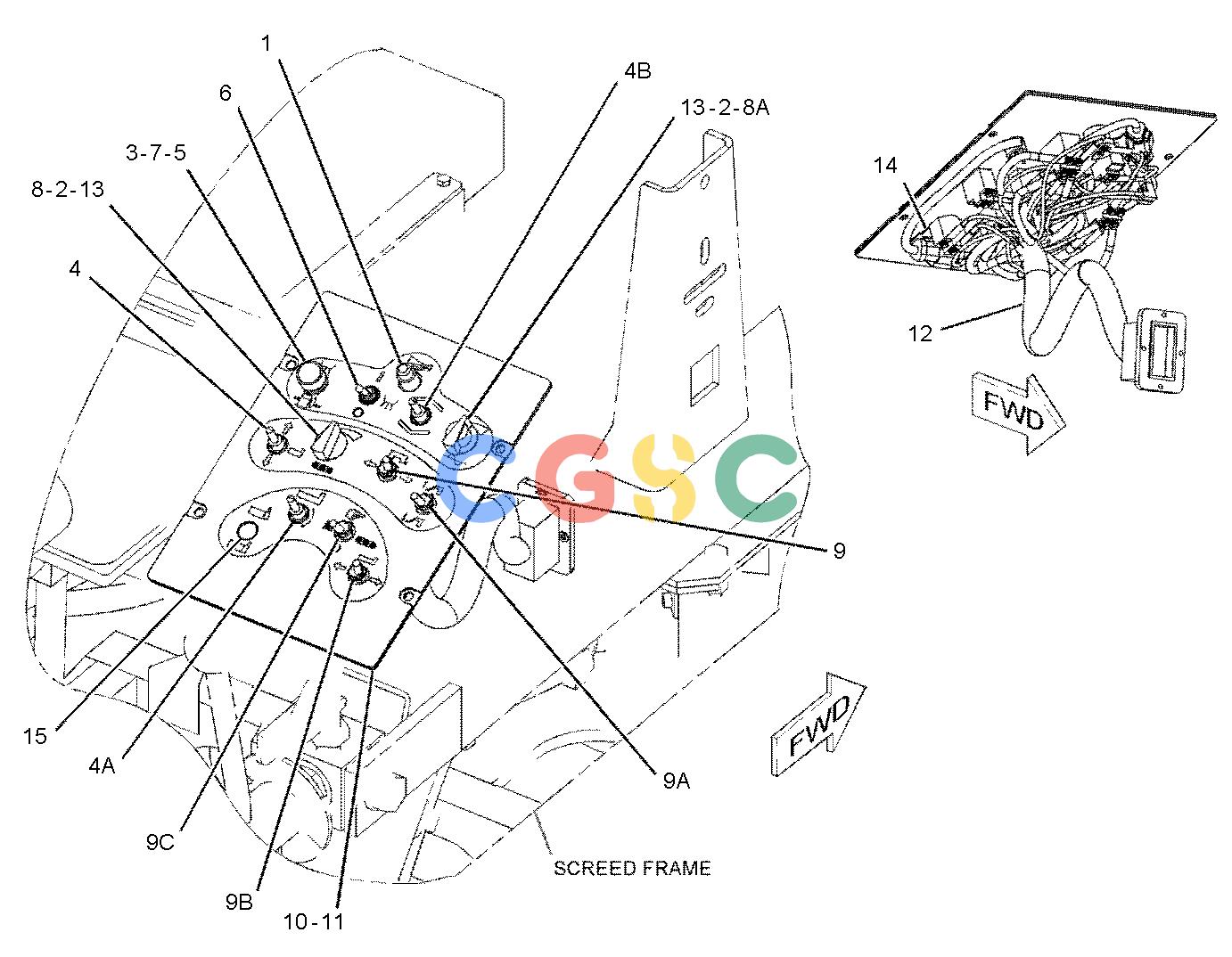

| 1. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 2. | 7C-4550 | [2] | SEAL(ROTATING SHAFT) | |
| 3. | 7N-5876C | [1] | LAMP(24-VOLT, 0.2-AMPERE)(WASHDOWN) | |
| 4. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER HEIGHT, RH) | |
| 4A. | 7N-8008 | [1] | SWITCH AS-TOGGLE(SLOPE CONTROL, RH) | |
| 4B. | 7N-8008 | [1] | SWITCH AS-TOGGLE(CROWN CONTROL) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 5. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT(WASHDOWN) | |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 6. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(WASHDOWN) | |
| 7. | 9D-9161 | [1] | LENS-GREEN | |
| 8. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, RH) | |
| 8A. | 213-8147 | [1] | POTENTIOMETER AS(VIBRATORY) | |
| | | | (EACH POTENTIOMETER AS INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.3-M EACH) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(25-CM) | |
| 9. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER CONTROL, RH) | |
| 9A. | 246-8912 | [1] | SWITCH GP-TOGGLE(TOW POINT CONTROL, RH) | |
| 9B. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER WIDTH, RH) | |
| 9C. | 246-8912 | [1] | SWITCH GP-TOGGLE(FEEDER CONTROL) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 10. | 276-4632 | [1] | FILM-IDENTIFICATION(PANEL, RH) | |
| 11. | 276-4634 | [1] | PANEL | |
| 12. | 288-5953 | [1] | HARNESS AS-PANEL | |
| | 9X-3401 | [21] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 126-1767 | [1] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2260 | [2] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 5P-2321 | [19] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 9G-9314 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 7N-7978 | [13] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-1475 | [1] | TERMINAL-FORK(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 2L-8065 | [1] | TERMINAL-RING(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| 13. | 316-5717C | [2] | KNOB AS(POTENTIOMETER) | |
| 14. | 130-5301 | [2] | CLIP | |
| 15. | 3D-9872 | [1] | PLUG-BUTTON | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
