卡特零件查询（AP-655D） 360-5623: BOX GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
227 次

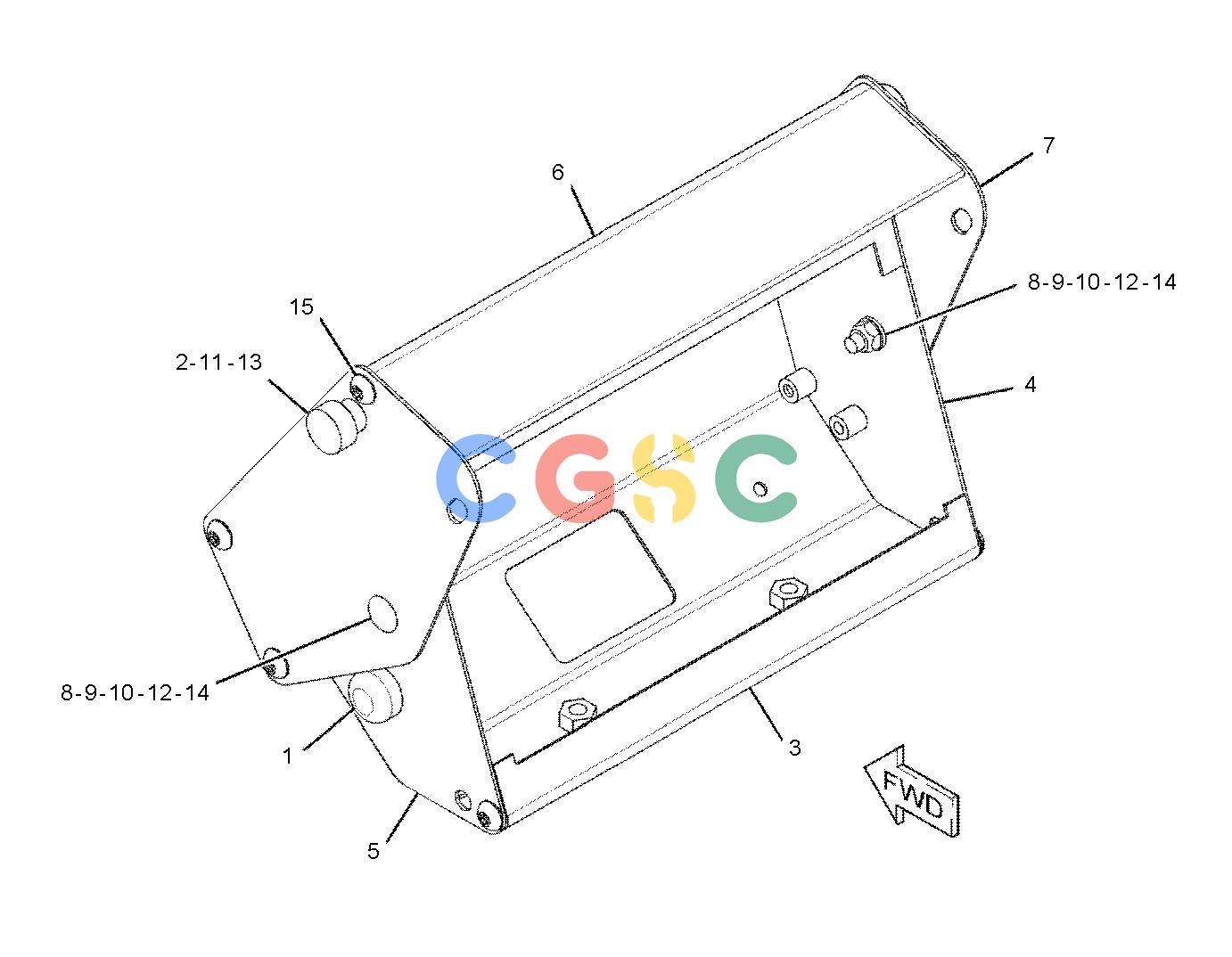

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9C-9785 | [2] | BUMPER | |
| 2. | 107-5014 | [2] | KNOB | |
| 3. | 360-5629 | [1] | BOX AS | |
| 4. | 360-5638 | [1] | PLATE AS(RH) | |
| 5. | 360-5642 | [1] | PLATE AS(LH) | |
| 6. | 360-5650 | [1] | COVER AS | |
| 7. | 360-5654 | [2] | PLATE-END | |
| 8. | 102-0070 | [2] | SPACER(22.87X32X7-MM THK) | |
| 9. | 128-6866M | [1] | BOLT-CARRIAGE(M8X1.25X25-MM) | |
| 10. | 5P-1075 | [2] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 11. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 12. | 6V-9189M | [2] | LOCKNUT(M8X1.25-THD) | |
| 13. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 14. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 9X-2042M | [14] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | M | | METRIC PART |
