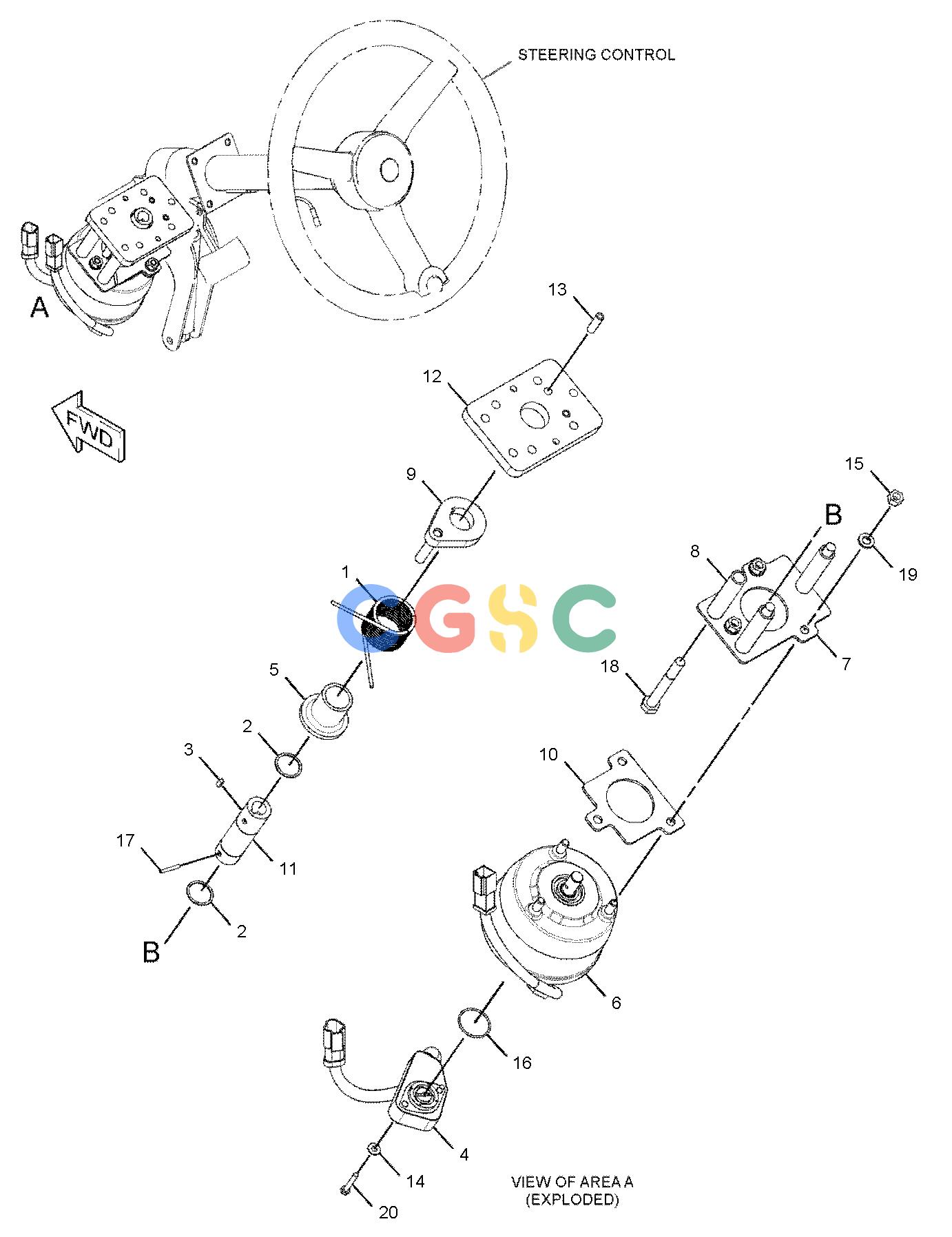

卡特零件查询（AP-655D） 347-1976: CONTROL GP-STEERING
广数供应链运营团队, 17 02月, 2025，浏览：
748 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-5382 | [1] | SPRING | |
| 2. | 081-7511 | [2] | RING | |
| 3. | 096-2633 | [1] | KEY-SQUARE | |
| 4. | 195-8090Y | [1] | SENSOR GP-POSITION(STEERING) | |
| 5. | 250-3949 | [1] | SPACER | |
| 6. | 283-8323 | [1] | CONTROL AS-STEERING(FORCE CONTROL) | |
| 7. | 308-6351 | [1] | PLATE | |
| 8. | 308-6352 | [3] | TUBE | |
| 9. | 308-6353 | [1] | ARM AS | |
| 10. | 308-6354 | [1] | PLATE | |
| 11. | 346-6621 | [1] | SHAFT-STEERING | |
| 12. | 347-1971 | [1] | PLATE | |
| 13. | 1T-0550 | [2] | PIN-SPRING | |
| 14. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 15. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 16. | 6V-0894 | [1] | SEAL-O-RING | |
| 17. | 8T-0277 | [2] | PIN-SPRING | |
| 18. | 8T-4172M | [3] | BOLT(M10X1.5X80-MM) | |
| 19. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 8T-7368M | [2] | SCREW-MACHINE(10-32X28.58-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
