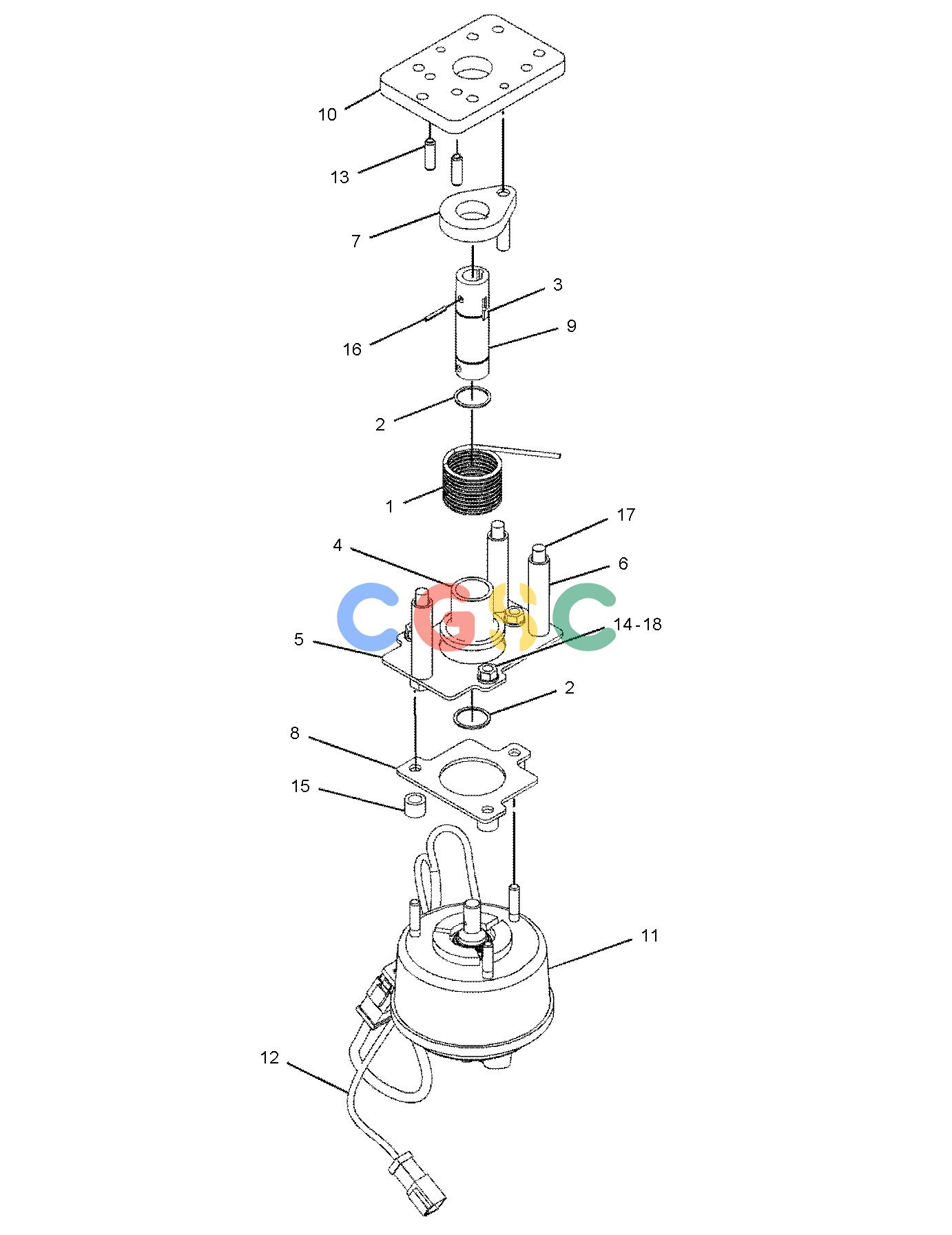

卡特零件查询（AP-655D） 370-9141: CONTROL GP-STEERING
广数供应链运营团队, 17 02月, 2025，浏览：
584 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-5382 | [1] | SPRING | |
| 2. | 081-7511 | [2] | RING | |
| 3. | 096-2633 | [1] | KEY-SQUARE(STEERING) | |
| 4. | 250-3949 | [1] | SPACER | |
| 5. | 308-6351 | [1] | PLATE | |
| 6. | 308-6352 | [3] | TUBE | |
| 7. | 308-6353 | [1] | ARM AS | |
| 8. | 308-6354 | [1] | PLATE | |
| 9. | 346-6621 | [1] | SHAFT-STEERING | |
| 10. | 347-1971 | [1] | PLATE | |
| 11. | 370-9142 | [1] | BRAKE AS | |
| 12. | 371-3757 | [1] | HARNESS AS-STEERING | |
| | 9X-3401 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [5] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 13. | 1T-0550 | [2] | PIN-SPRING | |
| 14. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 15. | 5G-4313 | [3] | SPACER(10.34X15.88X12-MM THK) | |
| 16. | 8T-0277 | [2] | PIN-SPRING | |
| 17. | 8T-4172M | [3] | BOLT(M10X1.5X80-MM) | |
| 18. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
