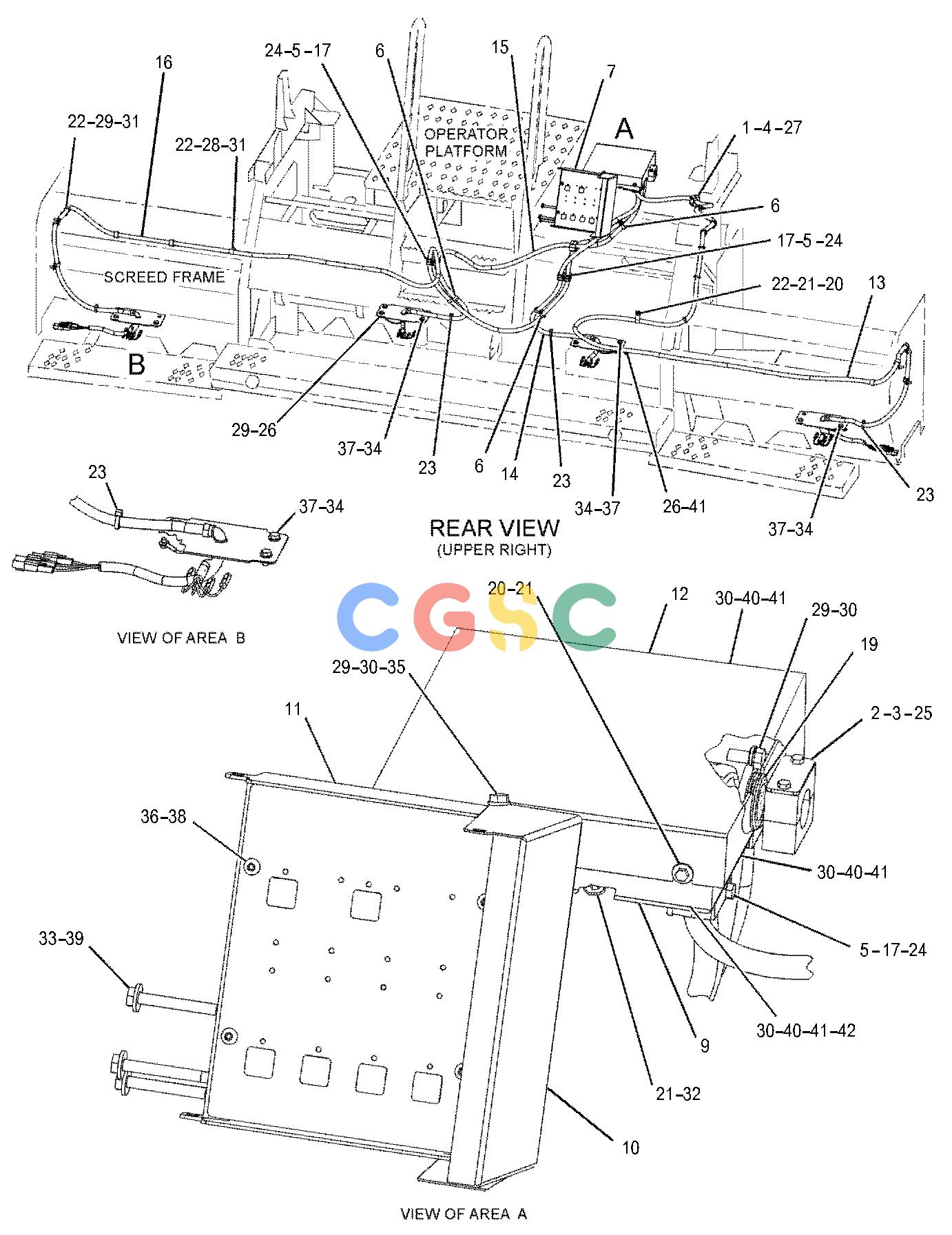

| 1. | 1G-9959 | [4] | CLAMP | |
| 2. | 7R-7941 | [2] | CLAMP | |
| 3. | 7R-7951 | [1] | PLATE | |
| 4. | 7V-5628 | [2] | PLATE(TOP) | |
| 5. | 102-8705 | [4] | PLATE(TOP) | |
| 6. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 7. | 291-3876 | [1] | PANEL GP-CONTROL | |
| | 229-3128 | [1] | PANEL AS | |
| 9. | 348-7769CY | [1] | BOX GP-SCREED CONTROL | |
| 10. | 276-4615 | [1] | COVER | |
| 11. | 279-3556 | [1] | BOX AS | |
| 12. | 452-7654 | [1] | COVER AS | |
| | 110-2023M | [1] | STUD-WELD(M10X1.5X25-MM) | |
| | 279-5689 | [1] | PLATE | |
| 13. | 348-7764C | [1] | HARNESS AS-SCREED(ELECTRIC HEAT, EXTENDER, RH) | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 9M-9093 | [1] | FERRULE | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 229-3139 | [1] | PLATE-COVER(HEATER ELEMENT ACCESS) | |
| | 129-7163 | [7] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 129-7164 | [3] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1541 | [7] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 14. | 348-7765C | [1] | HARNESS AS-SCREED(MAIN, RH) | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 9M-9093 | [1] | FERRULE | |
| | 7T-0093 | [2] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 229-3139 | [1] | PLATE-COVER(HEATER ELEMENT ACCESS) | |
| | 129-7163 | [4] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8N-1541 | [4] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 15. | 348-7766C | [1] | HARNESS AS-SCREED(MAIN, LH) | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 9M-9093 | [1] | FERRULE | |
| | 7T-0093 | [2] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 229-3139 | [1] | PLATE-COVER(HEATER ELEMENT ACCESS) | |
| | 129-7163 | [4] | PLUG AS-CONNECTOR(1-PIN) | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1541 | [4] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 16. | 348-7768C | [1] | HARNESS AS-SCREED(ELECTRIC HEAT, EXTENDER, LH) | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 9M-9093 | [1] | FERRULE | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 229-3139 | [1] | PLATE-COVER(HEATER ELEMENT ACCESS) | |
| | 129-7163 | [7] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 129-7164 | [3] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1541 | [7] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 17. | 154-6583 | [8] | CLAMP-HALF | |
| 19. | 3H-2900 | [1] | GROMMET | |
| 20. | 5C-9553M | [5] | BOLT(M6X1X16-MM) | |
| 21. | 5P-4115 | [9] | WASHER-HARD(7.2X19X2-MM THK) | |
| 22. | 6D-4244 | [11] | CLIP(LOOP) | |
| 23. | 7K-1181 | [9] | STRAP-CABLE | |
| 24. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 25. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 26. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 27. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 28. | 8S-0948 | [1] | CLIP | |
| 29. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4133M | [5] | NUT(M10X1.5-THD) | |
| 31. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 32. | 6V-7357M | [4] | BOLT(M6X1X25-MM) | |
| 33. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 34. | 8T-4192M | [14] | BOLT(M12X1.75X25-MM) | |
| 35. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 36. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 37. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 38. | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 39. | 8T-4198M | [3] | BOLT(M10X1.5X100-MM) | |
| 40. | 4D-1326 | [3] | LOCKWASHER(EXTERNAL TOOTH) | |
| 41. | 7P-1695 | [10] | WASHER(10.5X19X3-MM THK) | |
| 42. | 367-6889 | [1] | WIRE AS-GROUND | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
