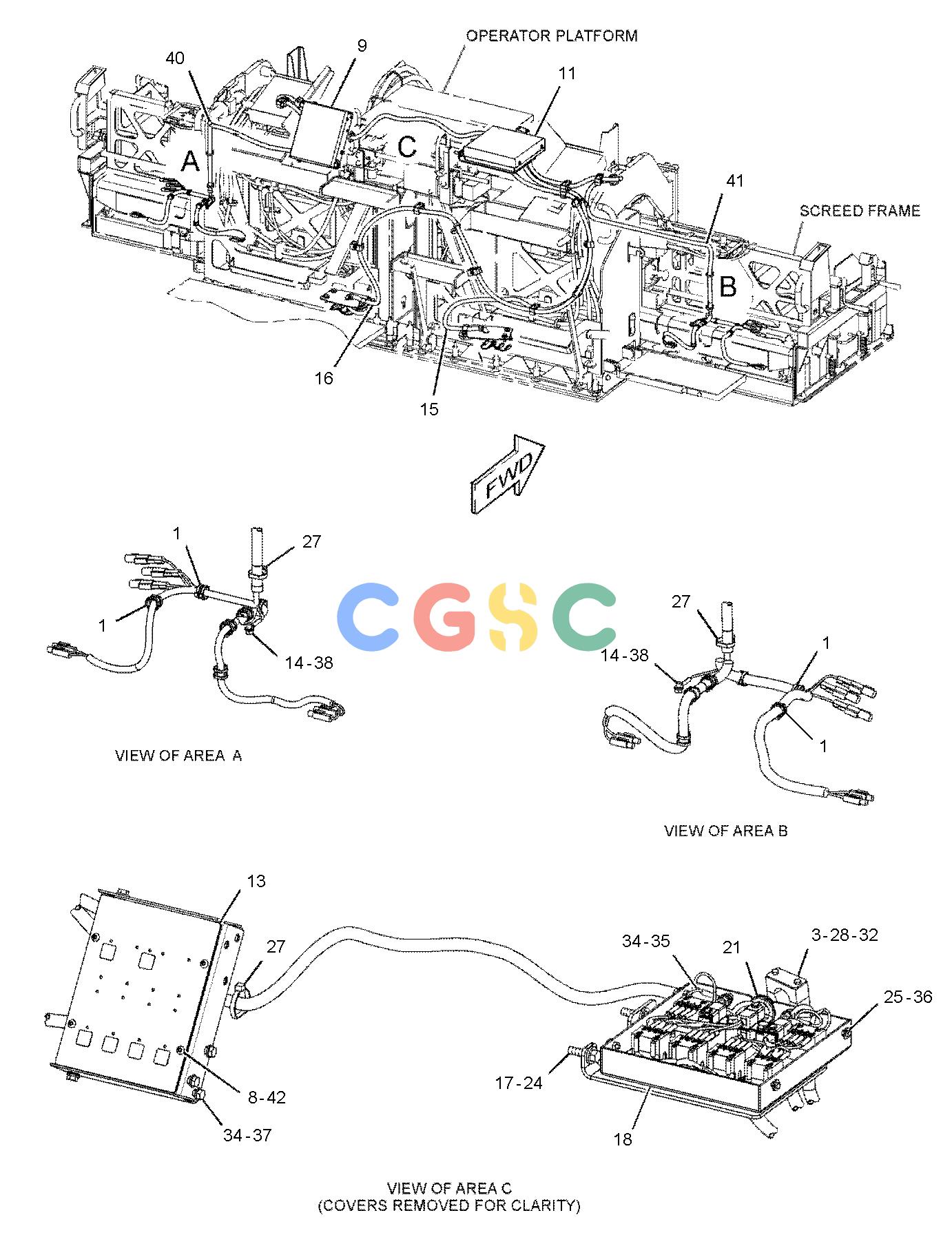

| 1. | 3S-2093 | [24] | STRAP-CABLE | |
| 2. | 6R-1317 | [18] | CLAMP | |
| 3. | 7R-7951 | [1] | PLATE | |
| 4. | 7R-7964 | [1] | PLATE | |
| 5. | 7V-5628 | [3] | PLATE(TOP) | |
| 6. | 102-8705 | [10] | PLATE(TOP) | |
| 7. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 8. | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 9. | 276-4615 | [1] | COVER | |
| 10. | 279-3556 | [1] | BOX AS | |
| 11. | 279-5689 | [1] | PLATE | |
| 12. | 290-0719 | [1] | PLATE AS | |
| 13. | 291-3876 | [1] | PANEL GP-CONTROL | |
| | 229-3128 | [1] | PANEL AS | |
| 14. | 8T-9371 | [4] | BOLT(3/8-16X0.5-IN) | |
| 15. | 348-7770C | [1] | HARNESS AS-SCREED(MAIN, RH) | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 129-7163 | [4] | PLUG AS-CONNECTOR(1-PIN) | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 9M-9093 | [1] | FERRULE | |
| | 7T-0093 | [2] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 229-3139 | [1] | PLATE-COVER(HEATER ELEMENT ACCESS) | |
| | 129-7163 | [4] | PLUG AS-CONNECTOR(1-PIN) | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 8N-1541 | [4] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 16. | 348-7771C | [1] | HARNESS AS-SCREED(MAIN, LH) | |
| | 177-9645 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 129-7163 | [4] | PLUG AS-CONNECTOR(1-PIN) | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 7T-0093 | [2] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [4] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 9M-9093 | [1] | FERRULE | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 229-3139 | [1] | PLATE-COVER(HEATER ELEMENT ACCESS) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 17. | 8T-8919 | [2] | BOLT(1/2-13X1.75-IN) | |
| 18. | 348-7769CY | [1] | BOX GP-SCREED CONTROL | |
| 19. | 154-6583 | [4] | CLAMP-HALF | |
| 20. | 1G-9959 | [4] | CLAMP | |
| 21. | 3H-2900 | [1] | GROMMET | |
| 23. | 4V-0939 | [1] | BOLT(5/16-18X1.73-IN) | |
| 24. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 25. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 26. | 6D-4636 | [2] | CLIP(LOOP) | |
| 27. | 7K-1181 | [10] | STRAP-CABLE | |
| 28. | 7R-7941 | [2] | CLAMP | |
| 29. | 7V-5626 | [2] | CLAMP | |
| 30. | 7X-0440 | [8] | BOLT(5/16-18X1.75-IN) | |
| 31. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 32. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 33. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 34. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 36. | 8T-4138M | [8] | BOLT(M6X1X20-MM) | |
| 37. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 38. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 39. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| 40. | 348-7772C | [1] | HARNESS AS-SCREED(EXTENDER, LH) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 129-7164 | [3] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 129-7163 | [7] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [7] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 9M-9093 | [2] | FERRULE | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| 41. | 348-7773C | [1] | HARNESS AS-SCREED(EXTENDER, RH) | |
| | 177-9653 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 129-7164 | [3] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 129-7163 | [7] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 7T-0093 | [4] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [7] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 9M-9093 | [2] | FERRULE | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| 42. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
