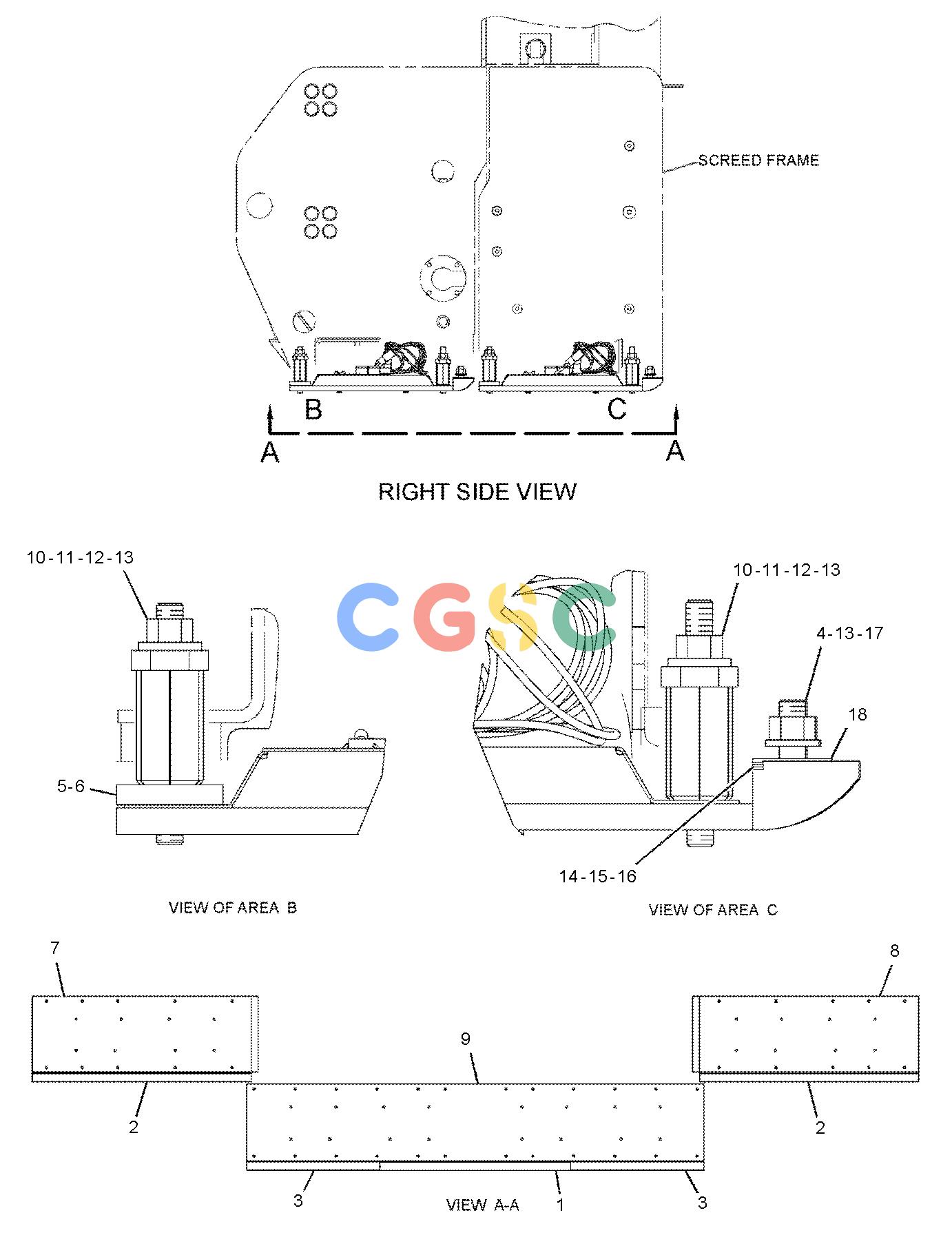

卡特零件查询（AP-655D） 276-4605: PLATE & HEATER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
648 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0179 | [1] | BAR-NOSE | |
| 2. | 8I-0180 | [2] | BAR-NOSE | |
| 3. | 8I-0181 | [2] | BAR-NOSE | |
| 4. | 8I-0189 | [20] | STUD(1/2-13X1.75-IN) | |
| 5. | 8I-0208 | [1] | BAR-SPACER | |
| 6. | 8I-0210 | [2] | BAR-SPACER | |
| 7. | 308-3132Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, EXTENDER, LH) | |
| 8. | 308-3131Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, EXTENDER, RH) | |
| 9. | 308-3130Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, MAIN) | |
| 10. | 290-4723 | [44] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 11. | 290-4724 | [44] | STUD(1/2-13X4.52-IN) | |
| 12. | 5P-1076 | [44] | WASHER-HARD(13.5X30X4-MM THK) | |
| 13. | 6V-8188 | [64] | NUT(1/2-13-THD) | |
| 14. | 8I-0888B | [14] | SHIM(0.01-IN THK) | |
| 15. | 8I-0889B | [24] | SHIM(0.02-IN THK) | |
| 16. | 8I-0890B | [14] | SHIM(0.064-IN THK) | |
| 17. | 8T-4223 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 263-7354B | [4] | SHIM(2-MM THK) | |
| | B | | USE AS REQUIRED |
| | Y | | SEPARATE ILLUSTRATION |
