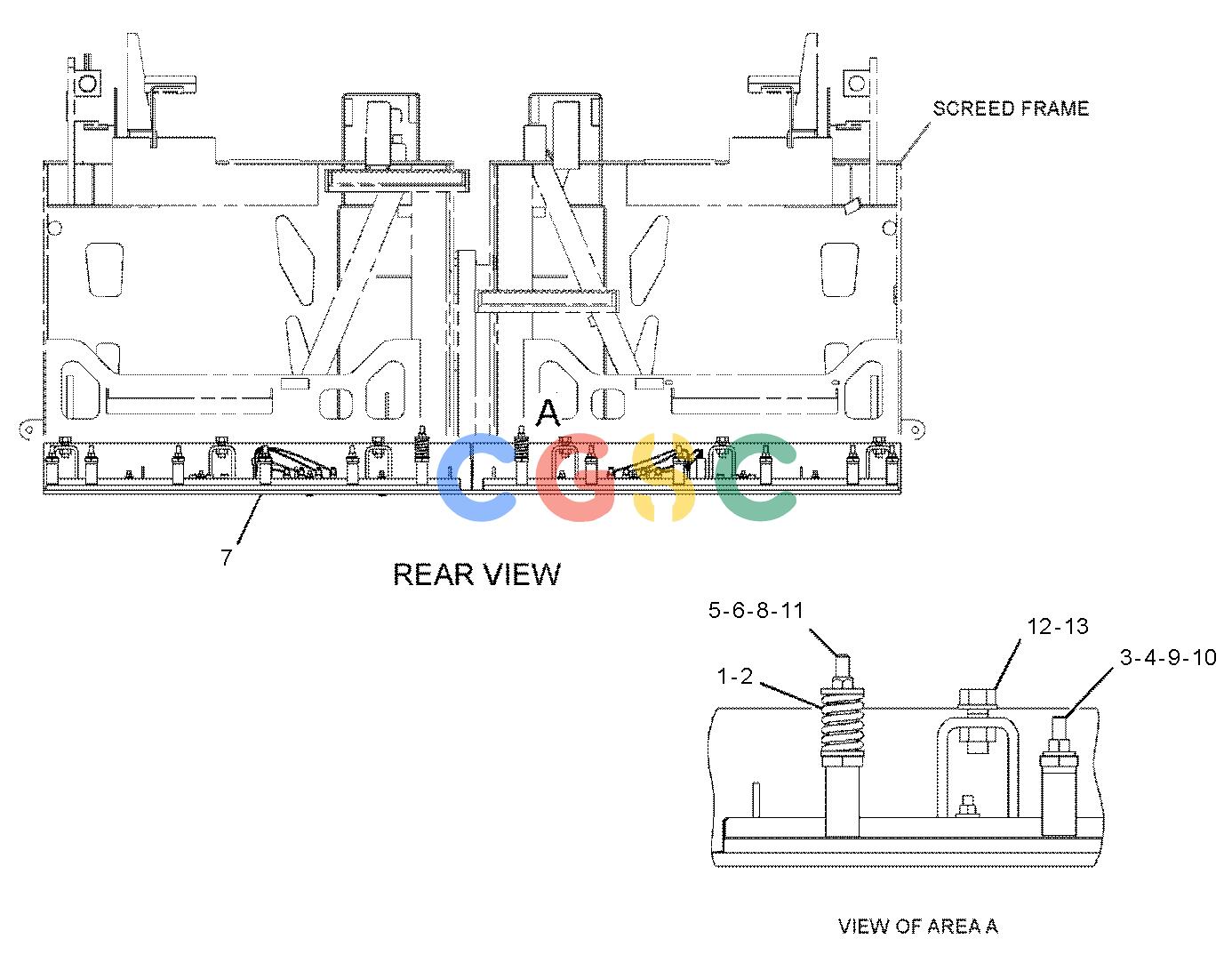

卡特零件查询（AP-655D） 295-3084: PLATE & HEATER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4T-4630 | [2] | SPRING | |
| 2. | 6B-2038 | [2] | SPACER(1-9/16X1X1-23/32-IN THK) | |
| 3. | 8I-0184 | [10] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 4. | 8I-0212 | [10] | STUD(1/2-13X5-IN) | |
| 5. | 185-5431 | [2] | BOLT-SPECIAL | |
| 6. | 214-9169 | [2] | STUD(1/2-13X7.25-IN) | |
| 7. | 311-6561Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, MAIN) | |
| 8. | 1K-6872 | [2] | LOCKNUT(1/2-13-THD) | |
| 9. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 10. | 6V-8188 | [10] | NUT(1/2-13-THD) | |
| 11. | 7X-0618 | [4] | WASHER-HARD(13.5X40X5-MM THK) | |
| 12. | 8T-4994 | [6] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 13. | 8T-9398 | [6] | BOLT(3/4-10X1.75-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
