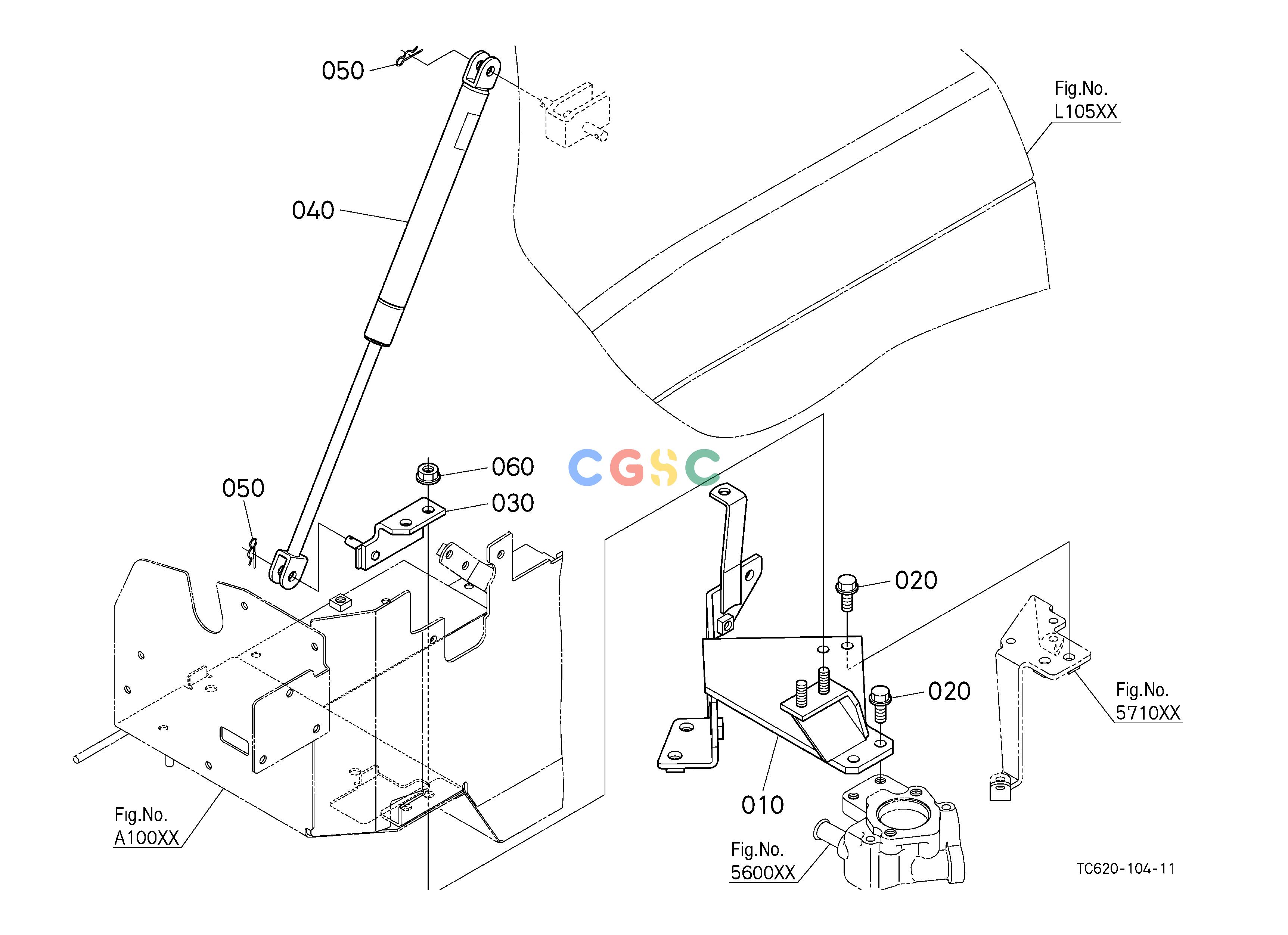

久保田零件查询L10800 HOOD(BONNET) DAMPER HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC62042230
|
[1] |
BRACKET(DAMPER,1)
|
0.0000(lbs); 0.000
|
| 020. |
0175450820
|
[4] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 030. |
TC62042242
|
[1] |
BRACKET(DAMPER,2)
|
0.0000(lbs); 0.000
|
| 030. |
TC62042244
|
[1] |
BRACKET(DAMPER,2)
|
0.0000(lbs); 0.000
|
| 040. |
TC62083310
|
[1] |
DAMPER(BONNET)
|
0.0000(lbs); 0.000
|
| 050. |
0551650800
|
[2] |
PIN,SNAP
|
0.0044(lbs); 0.002
|
| 060. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
