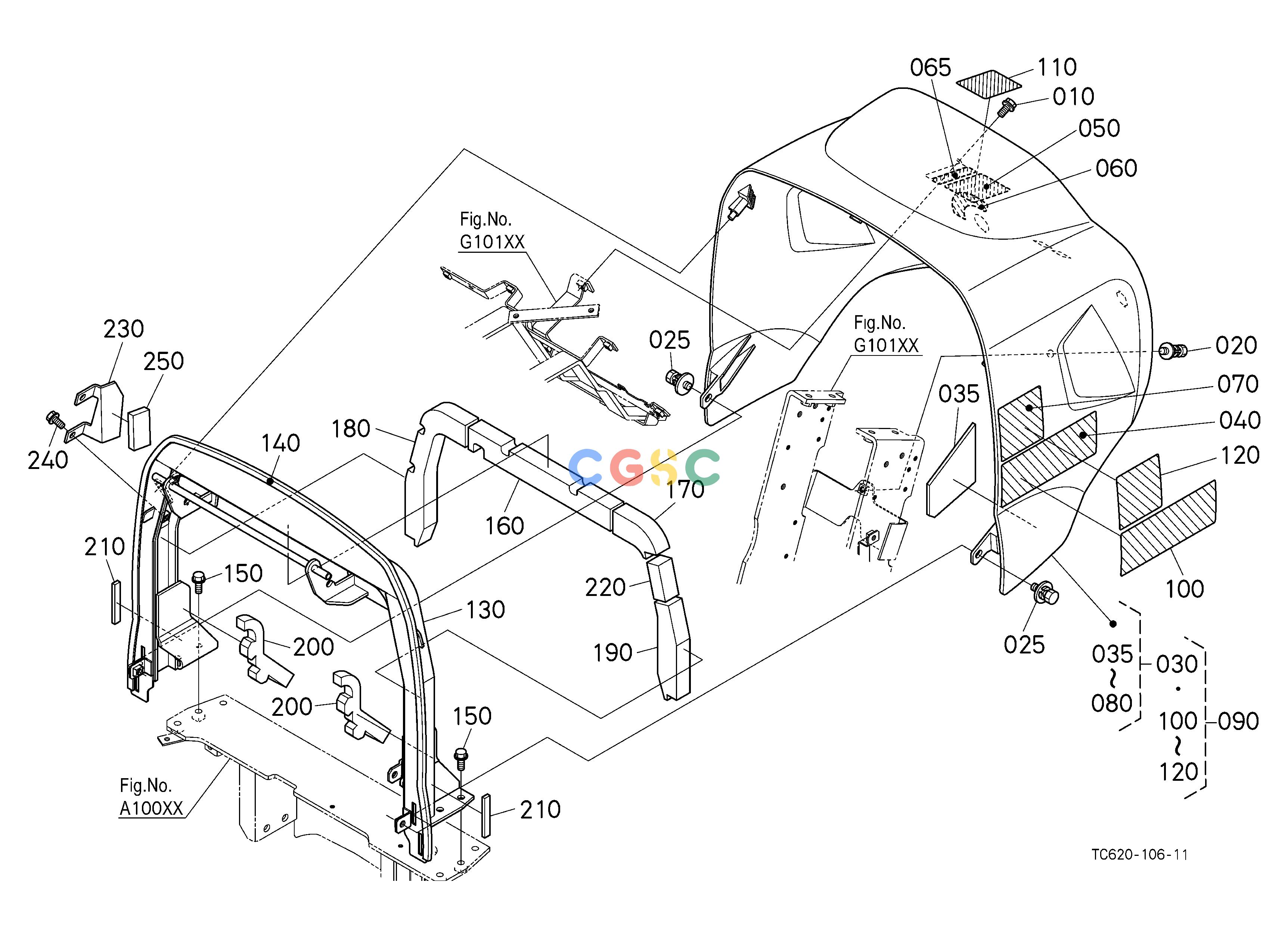

久保田零件查询L13500 BONNET (HOOD) REAR HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3081018870
|
[1] |
BOLT,FLANGE
|
0.0264(lbs); 0.012
|
| 020. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 025. |
0112750820
|
[2] |
BOLT,W SEMS(LARGE WASHER)
|
0.0440(lbs); 0.020
|
| 030. |
TC63018922
|
[1] |
BONNET,KIT REAR(A)
|
0.0000(lbs); 0.000
|
| 035. |
TC63018820
|
[1] |
INSULATION(BONNET,REAR)
|
0.0000(lbs); 0.000
|
| 040. |
TC63049650
|
[1] |
LABEL(START DANGER)
|
0.0000(lbs); 0.000
|
| 050. |
TC63025050
|
[1] |
LABEL(SHUTTLE)
|
0.0000(lbs); 0.000
|
| 060. |
TC65065510
|
[1] |
MARK(MAIN SWITCH)
|
0.0022(lbs); 0.001
|
| 065. |
TC63098320
|
[1] |
MARKING(ACCEL,LEVER)
|
0.0000(lbs); 0.000
|
| 070. |
TC63098680
|
[1] |
LABEL(DPF,CAUTION)
|
0.0000(lbs); 0.000
|
| 080. |
TC52049460
|
[1] |
MARKING(PARKING)
|
0.0000(lbs); 0.000
|
| 090. |
TC63018933
|
[1] |
BONNET,KIT REAR(B)
|
0.0000(lbs); 0.000
|
| 100. |
TA04149650
|
[1] |
LABEL,START CAUTION
|
0.0088(lbs); 0.004
|
| 110. |
3526125050
|
[1] |
LABEL,SHUTTLE
|
0.0022(lbs); 0.001
|
| 120. |
3Y20198680
|
[1] |
LABEL(DPF,CAUTION,FR)
|
0.0044(lbs); 0.002
|
| 130. |
TC62042137
|
[1] |
SUPPORT(BONNET,REAR)
|
0.0000(lbs); 0.000
|
| 140. |
3C30183530
|
[1] |
TRIM,STEERING SUP.
|
0.1320(lbs); 0.060
|
| 150. |
0175450820
|
[4] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 160. |
TC62042203
|
[1] |
SPONGE(SHUTTER UPPER)
|
0.0000(lbs); 0.000
|
| 170. |
TC62042372
|
[1] |
SPONGE(SHUTTER UPPER LH)
|
0.0000(lbs); 0.000
|
| 180. |
TC62042214
|
[1] |
SPONGE(SHUTTER,SIDE,RH)
|
0.0000(lbs); 0.000
|
| 190. |
TC62042362
|
[1] |
SPONGE(SHUTTER,SIDE,LH)
|
0.0000(lbs); 0.000
|
| 200. |
TC62042222
|
[2] |
SPONGE(SHUTTER SIDE2
|
0.0000(lbs); 0.000
|
| 210. |
TC62042250
|
[2] |
SPONGE(SHUTTER SIDE3
|
0.0000(lbs); 0.000
|
| 220. |
TC62042340
|
[1] |
CUSHION(TANK,3)
|
0.0000(lbs); 0.000
|
| 230. |
TC62042330
|
[1] |
SUPPORT(FUEL TANK)
|
0.0000(lbs); 0.000
|
| 240. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 250. |
TC62042352
|
[1] |
CUSHION(TANK,4)
|
0.0000(lbs); 0.000
|
