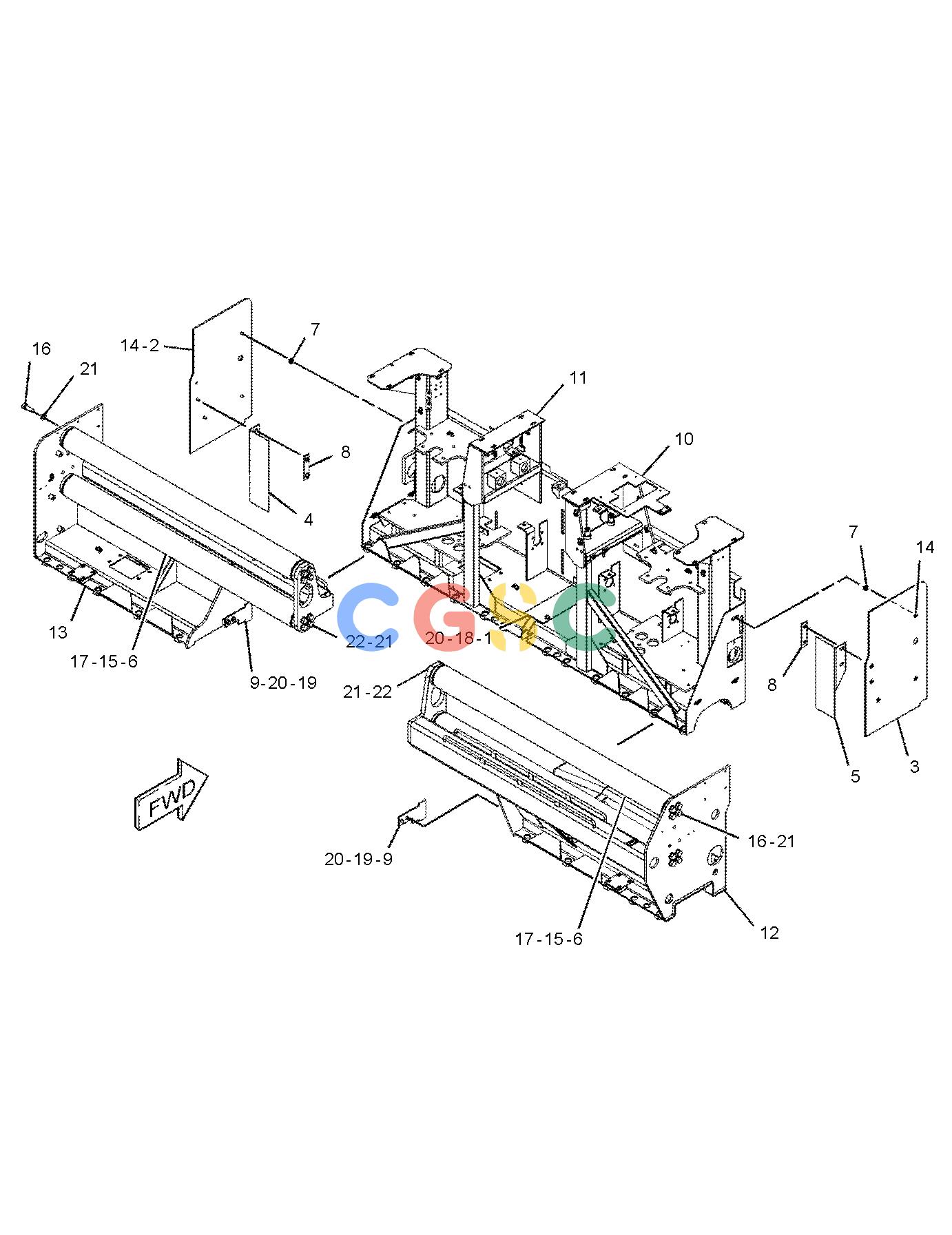

卡特零件查询（AP-655D） 276-4604: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
141 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0082 | [1] | COVER-CENTER | |
| 2. | 8I-0108 | [1] | COVER(LH) | |
| 3. | 8I-0109 | [1] | COVER(RH) | |
| 4. | 8I-0121 | [1] | COVER(LH) | |
| 5. | 8I-0122 | [1] | COVER(RH) | |
| 6. | 354-6746 | [4] | TUBE AS | |
| 7. | 104-2231 | [6] | NUT-SPRING | |
| 8. | 110-1250 | [2] | CLAMP AS | |
| 9. | 239-6362 | [2] | PLATE-COVER | |
| 10. | 279-2602 | [1] | FRAME AS(RH) | |
| 11. | 279-9910 | [1] | FRAME AS(LH) | |
| 12. | 279-9912 | [1] | FRAME AS(RH) | |
| 13. | 370-6239 | [1] | FRAME AS(LH) | |
| 14. | 107-2783 | [10] | SCREW-FLAT HEAD(1/2-13X1-IN) | |
| 15. | 138-7861B | [4] | SHIM(0.062-MM THK) | |
| 16. | 7X-0366 | [16] | BOLT(3/4-10X2-IN) | |
| 17. | 8I-0139B | [4] | SHIM(0.125-MM THK) | |
| 18. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 19. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 20. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-4994 | [32] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 22. | 8T-8924 | [16] | BOLT(3/4-10X2.5-IN) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
